90mm Right Angle DC Brush Gear Motor(GU Type)
Spiral Bevel Right Angle Gearmotor
- 120 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
- GU Type – Heavy Duty Gears with Higher Torque Capabilities
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | BrushLife | Motor Weight | |||||||||
| Speed | Current | Speed | Torque | Current | |||||||||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |||||||
| Z5D120-12□ | 12 | 120 | 3100 | 2.0Max. | 2500 | 458 | 15.0 | 2000 | 2.2 | ||||||
| Z5D120-24□ | 24 | 120 | 3200 | 1.0Max. | 2600 | 441 | 7.00 | 2000 | 2.2 | ||||||
| Z5D120-90□ | 90 | 120 | 3000 | 0.3Max. | 2600 | 441 | 2.00 | 2000 | 2.2 | ||||||
Gear Motor Specification: (N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Speed r/min | 346 | 288 | 208 | 173 | 144 | 104 | 86 | 72 | 52 | 43 | 34 | 28 | 26 | 21 | 17 | 14 | |
| Z5D120-24GU-26S | 5GU□RC 5GU□RT | 2.41 | 5.44 | 4.02 | 4.82 | 5.78 | 8.03 | 9.64 | 10.4 | 14.5 | 17.4 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
| 24.6 | 55.5 | 41.0 | 49.2 | 59.0 | 81.9 | 98.3 | 106 | 148 | 177 | 200 | 200 | 200 | 200 | 200 | 200 |

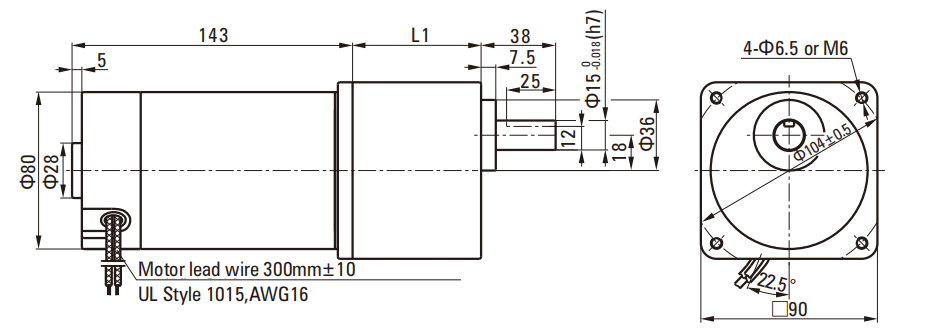

Dimensions (Unit: mm)
Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
