104mm Brush DC Gear Motor(GU Type)
Parallel shaft gearbox
- 250 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
- GU Type– Heavy Duty Gears, High torque capabilities
Notes:
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | |||
| Speed | Current | Speed | Torque | Current | |||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |
| Z6D250-24□ | 24 | 250 | 3400 | 3.0Max. | 3000 | 796 | 16.0 | 2000 | 3.2 |
| Z6D250-90□ | 90 | 250 | 3300 | 1.0Max. | 3000 | 796 | 4.00 | 2000 | 3.2 |
| Z6D250-220□ | 220 | 250 | 3300 | 0.8Max. | 3000 | 796 | 2.00 | 2000 | 3.2 |
Gear Motor Specification: (N.m) / (kgf.cm)
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
| Z6D250-24GN | Speed r/min | 1000 | 833 | 600 | 500 | 400 | 333 | 240 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 16 | 15 |
| 6GU□K | 1.93 | 2.32 | 3.22 | 3.87 | 4.83 | 5.80 | 7.25 | 8.70 | 10.4 | 13.1 | 15.7 | 18.8 | 26.1 | 31.3 | 39.2 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | |
| 19.0 | 22.7 | 31.6 | 37.9 | 47.4 | 56.9 | 71.1 | 85.3 | 102 | 128 | 154 | 184 | 256 | 307 | 384 | 400 | 400 | 400 | 400 | 400 | 400 |

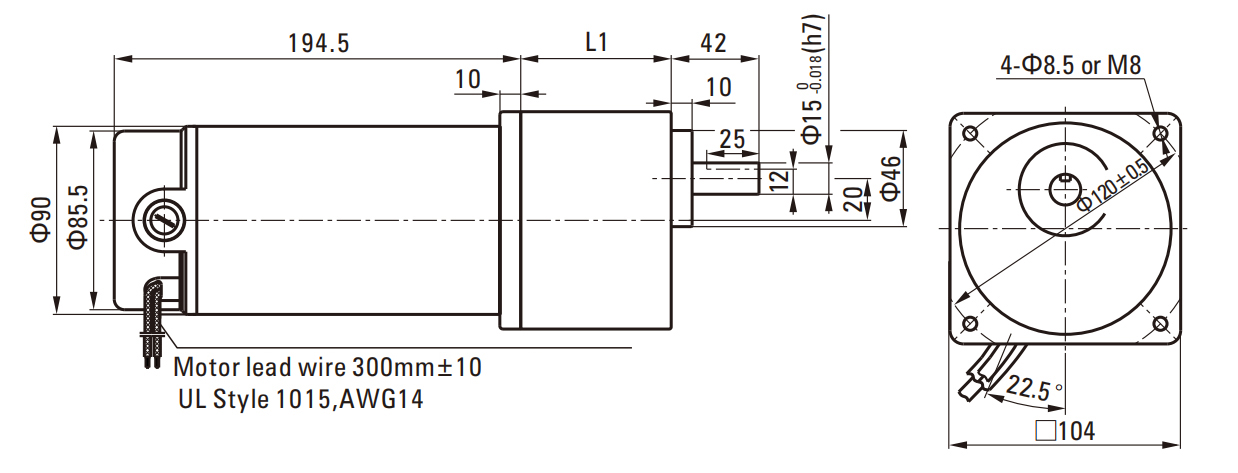

Dimensions (Unit: mm)
| Motor Model | Gearhead Model | Gear Ratio | L1 |
| Z6D250-24GU | 6GU□K | 3～200 | 72 |
| Z6D250-90GU | |||
| Z6D250-220GU |
Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
