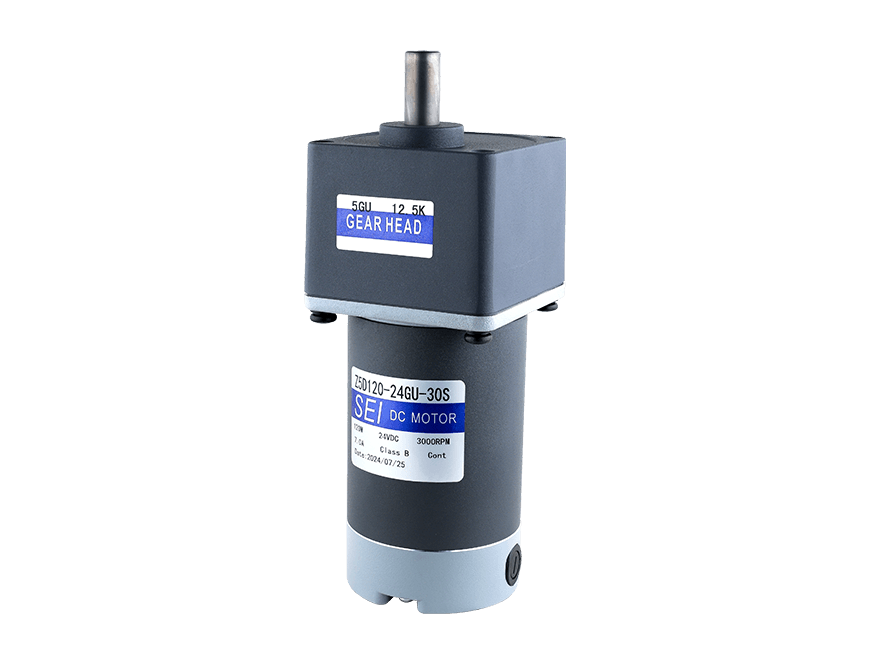

90mm Brush DC Gear Motor
Parallel shaft gearbox
- 40 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | |||
| Speed | Current | Speed | Torque | Current | |||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |
| Z5D40-12□ | 12 | 40 | 3100 | 2.0Max. | 2800 | 136 | 5.2 | 2000 | 1.9 |
| Z5D40-24□ | 24 | 40 | 3000 | 1.0Max. | 2800 | 136 | 2.6 | 2000 | 1.9 |
| Z5D40-90□ | 90 | 40 | 3200 | 0.3Max. | 3000 | 127 | 0.7 | 2000 | 1.9 |
Gear Motor Specification: (N.m) / (kgf.cm)
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
| Z5D40-24GN | Speed r/min | 933 | 778 | 560 | 467 | 373 | 311 | 280 | 224 | 187 | 156 | 140 | 112 | 93 | 78 | 70 | 56 | 47 | 37 | 31 | 28 | 23 | 19 | 16 | 14 |
| 5GN□K | 0.33 | 0.40 | 0.55 | 0.66 | 0.83 | 0.99 | 1.11 | 1.38 | 1.66 | 1.79 | 1.99 | 2.49 | 2.98 | 3.58 | 3.58 | 4.48 | 5.37 | 6.71 | 8.06 | 8.95 | 10.0 | 10.0 | 10.0 | 10.0 | |
| 3.25 | 3.90 | 5.41 | 6.50 | 8.12 | 9.75 | 10.8 | 13.5 | 16.2 | 17.5 | 19.5 | 24.4 | 29.2 | 35.1 | 35.1 | 43.9 | 52.6 | 65.8 | 78.9 | 87.7 | 100 | 100 | 100 | 100 |

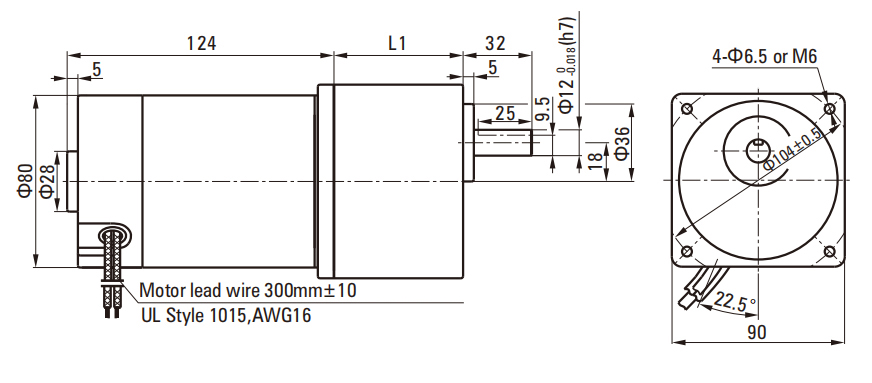

Dimensions (Unit: mm)
| Motor Model | Gearhead Model | Gear Ratio | L1 |
| Z5D40-12GN | 5GN□K | 3～200 | 42.5 |
| Z5D40-24GN | |||
| Z5D40-90GN |

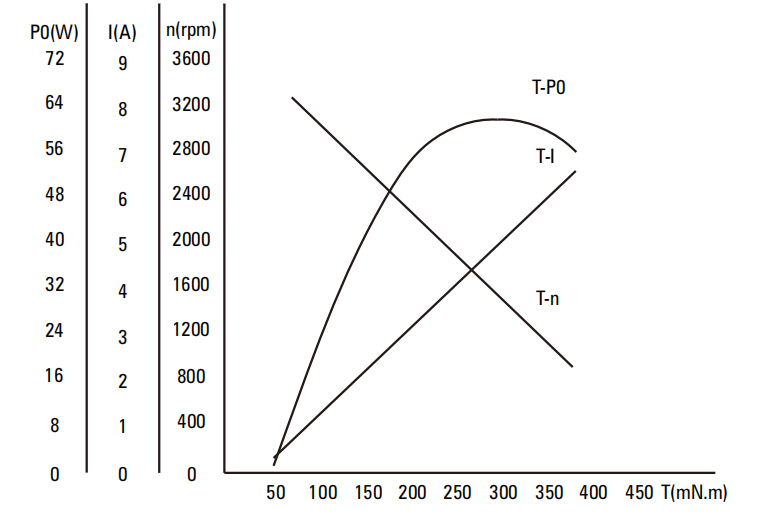

Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
