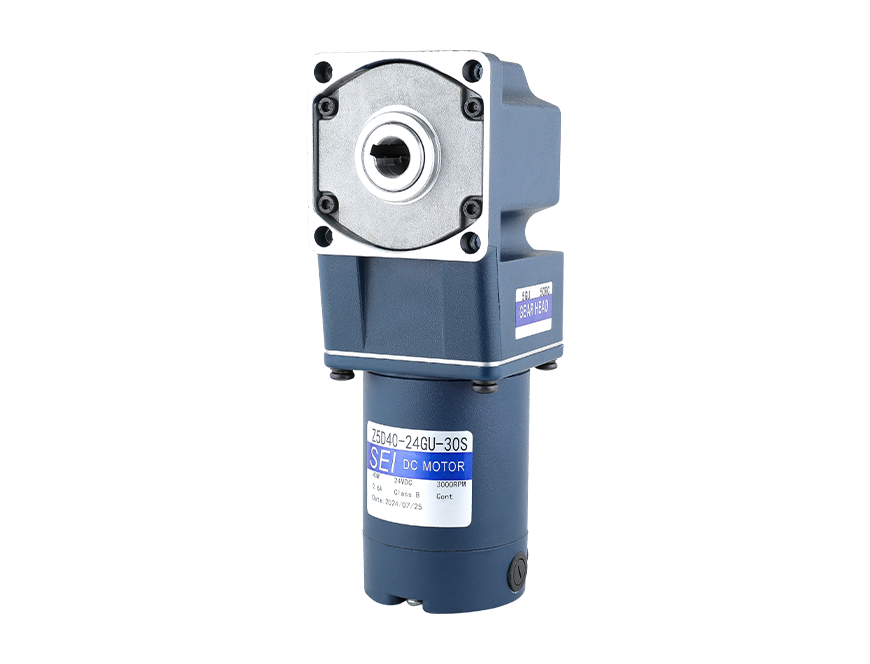

80mm Right Angle DC Brush Gear Motor
Spiral Bevel Right Angle Gearmotor
- 40 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
Notes: Z4D 70mm motor? 80mm gearbox, 40 Watts
Motor Performance Parameters
bb
Gear Motor Specification: (N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Speed r/min | 400 | 333 | 240 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 16 | |
| Z4D40-24GN-30S | 4GN□RC 4GN□RT | 0.70 | 0.84 | 1.16 | 1.39 | 1.67 | 2.32 | 2.78 | 3.34 | 4.64 | 5.01 | 6.27 | 7.52 | 80.0 | 80.0 | 80.0 | 80.0 |
| 7.14 | 8.57 | 11.8 | 14.2 | 17.0 | 23.7 | 28.4 | 34.1 | 47.3 | 51.1 | 64.0 | 76.7 | 80.0 | 80.0 | 80.0 | 80.0 |
Dimensions (Unit: mm)
Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
