60mm Brush DC Gear Motor

Parallel shaft gearbox

  • 6 Watt
  • 12, 24, 90VDC
  • 3-200:1 Ratio
  • Custom shafts

Note: Motors are available without gearbox

Datasheet
+Contact us

Motor Performance Parameters

Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
Z2D06-12□ 12 6 3200 0.6Max. 2950 19 0.8 2000 0.6
Z2DW06-12□ 12 6 3200 0.6Max. 2950 19 0.8 2000 0.6
Z2D06-24□ 24 6 3200 0.3Max 2950 19 0.5 2000 0.6
Z2DW06-24□ 24 6 3200 0.3Max. 2950 19 0.5 2000 0.6
 Z2D06-90□ 90 6 3000 0.2Max. 2800 20 0.3 2000 0.6
Z2DW06-90□ 90 6 3000 0.2Max. 2800 20 0.3 2000 0.6

Gear Motor Specification:  (N.m) / (kgf.cm)

TypeGear Ratio3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
Z2D06-24GN

Speed

r/min

983 819 590 492 393 328 295 236 197 164 148 118 98 82 74 59 49 39 33 30 25 20 16 15
2GN□K0.05 0.06 0.08 0.09 0.12 0.14 0.16 0.20 0.24 0.28 0.28 0.35 0.42 0.51 0.57 0.71 0.76 0.96 1.15 1.27 1.53 1.91 2.29 2.55
0.46 0.56 0.77 0.93 1.16 1.39 1.54 1.93 2.31 2.78 2.78 3.47 4.16 5.00 5.55 6.94 7.49 9.37 11.2 12.5 15.0 18.7 22.5 25.0

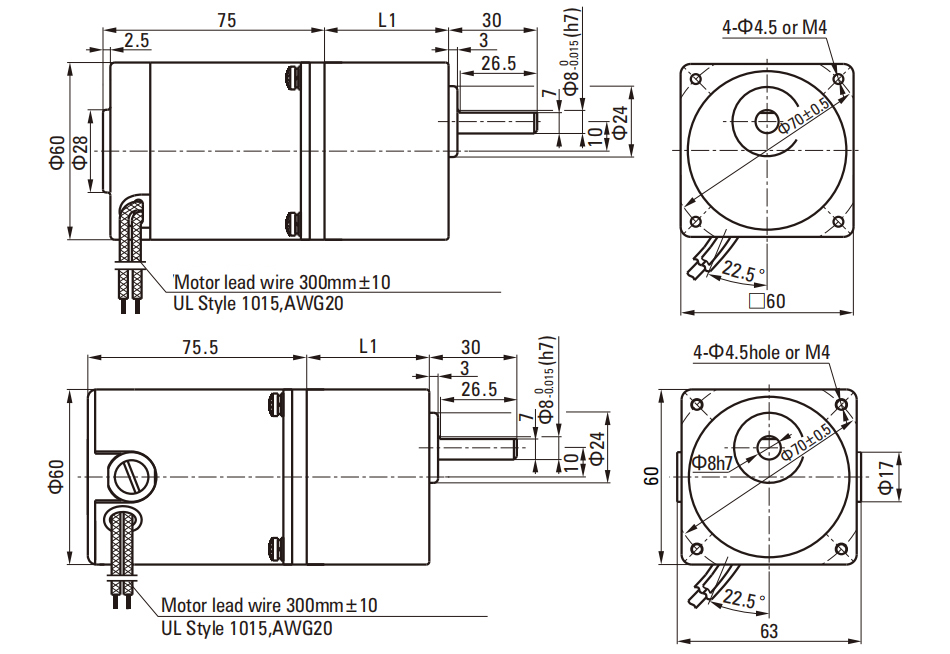

Dimensions (Unit: mm)

Motor Model Gearhead Model Gear Ratio L1
Z2D06-12GN 2GN□K 3～200 41
Z2DW06-12GN
Z2D06-24GN
Z2DW06-24GN
Z2D06-90GN
Z2DW06-90GN

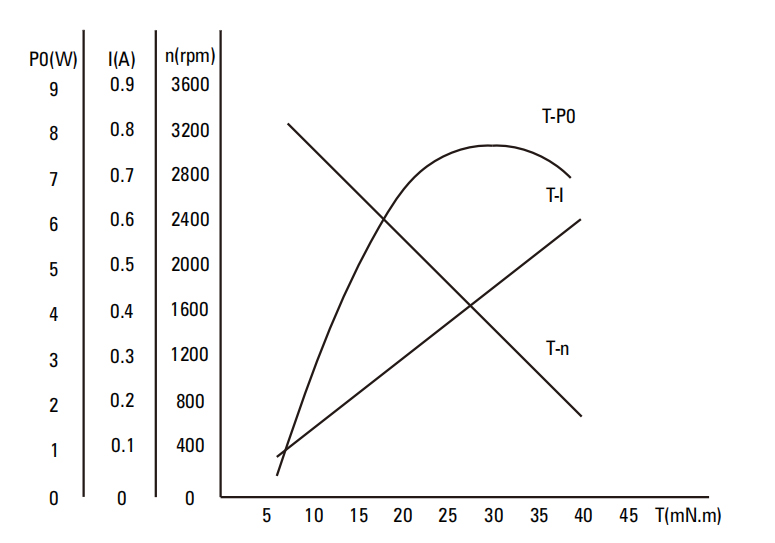

Characteristic Curve Of Motor

Wiring Diagram Of Motor

Standard length of lead wire: 300mm±10, model: Ul1015, type: AWG20; lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
