90mm Right Angle DC Brush Gear Motor(GU Type)
Spiral Bevel Right Angle Gearmotor
- 90 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
- GU Type – Heavy Duty Gears with Higher Torque Capabilities
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | |||
| Speed | Current | Speed | Torque | Current | |||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |
| Z5D90-12□ | 12 | 90 | 3100 | 2.0Max. | 2600 | 330 | 12.0 | 2000 | 2.2 |
| Z5D90-24□ | 24 | 90 | 3300 | 1.0Max. | 2800 | 307 | 5.00 | 2000 | 2.2 |
| Z5D90-90□ | 90 | 90 | 3000 | 0.3Max. | 2900 | 307 | 1.40 | 2000 | 2.2 |
Gear Motor Specification: (N.m)/(kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Speed r/min | 373 | 311 | 224 | 186 | 155 | 112 | 93 | 77 | 56 | 46 | 37 | 31 | 28 | 23 | 18 | 15 | |
| Z5D90-24GU-28S | 5GU□RC 5GU□RT | 1.68 | 2.01 | 2.80 | 3.36 | 4.03 | 5.59 | 6.71 | 7.25 | 10.1 | 12.1 | 15.1 | 18.1 | 20.0 | 20.0 | 20.0 | 20.0 |
| 17.1 | 20.5 | 28.6 | 34.3 | 41.1 | 57.0 | 68.4 | 74.0 | 103 | 123 | 154 | 185 | 200 | 200 | 200 | 200 |

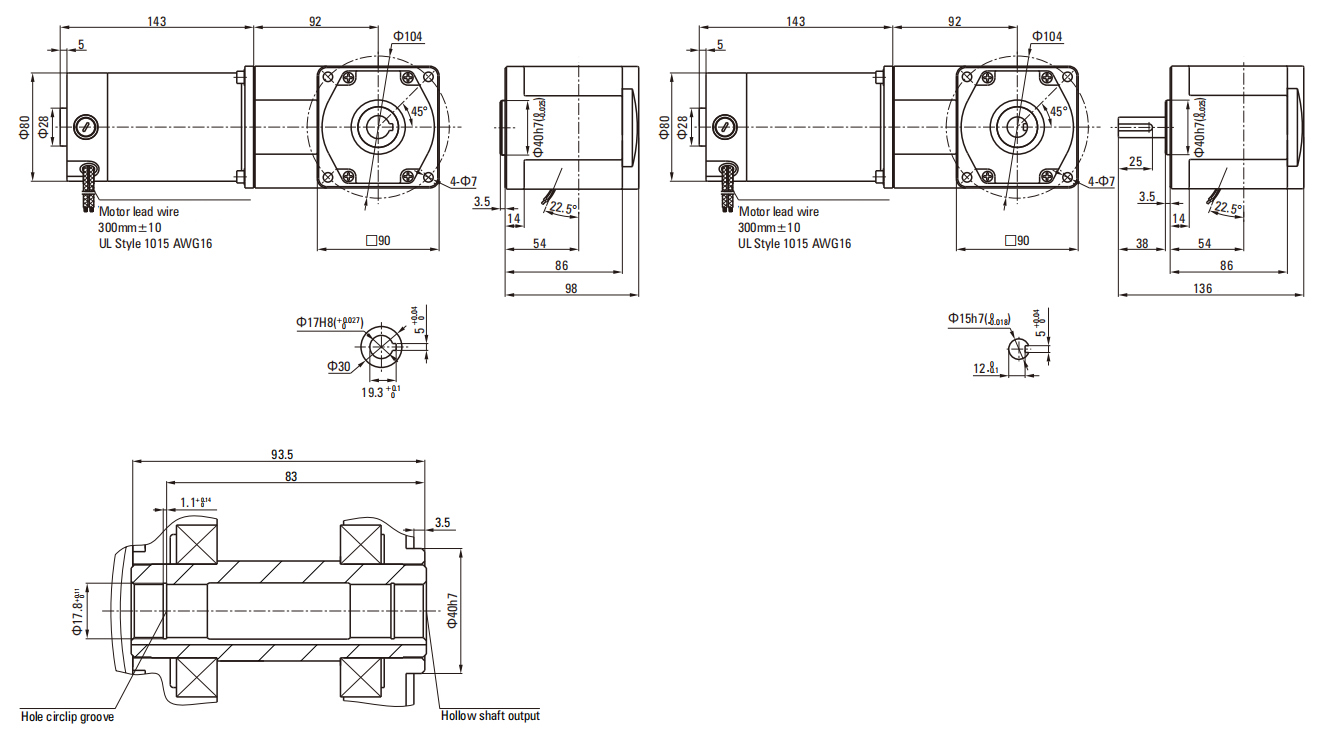

Dimensions (Unit: mm)
Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
