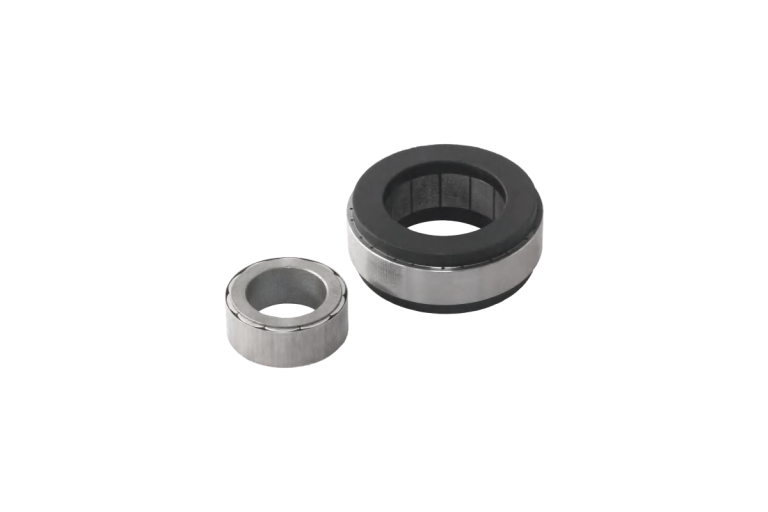

SYTT Series
39mm Frameless BLDC Motor Size
- 3 Phase
- 24-48 VDC
- 10 Pole
- 30-120 Watt
- 3,000 RPM
Note:
We can customize to meet our customers requirements.
Technical Specifications
| Motor Model | 39SYTT243030 | 39SYTT486030 | 46SYTT481230 |
| Number of Phase | 3 | ||
| Number of Poles | 10 | ||
| Rated Voltage(VDC) | 24 | 48 | |
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.1 | 0.2 | 0.4 |
| Rated Power(W) | 30 | 60 | 120 |
| Rated Current(A) | 1.9 | 1.3 | 1.5 |
| Peak Current(A) | 3.8 | 2.6 | 3 |
| Peak Torque(N.M) | 0.2 | 0.24 | 0.32 |
| Rotor Inertia(kg.cm2) | 0.009 | 0.018 | 0.036 |
| Torque Constant(N.m/A) | 0.053 | 0.1 | 0.11 |
| Torque Constant(V/krpm) | 3.2 | 6 | 6.6 |
| Line-Line Resistance(Ω) | 3.3 | 2.5 | 1.5 |
| Line-Line Inductance(mH) | 3.4 | 3 | 1.66 |
| Length(mm) | 6/6.6 | 12/13 | 24/25 |
| Weight(kg) | 0.05 | 0.075 | 0.14 |
Wiring Diagram

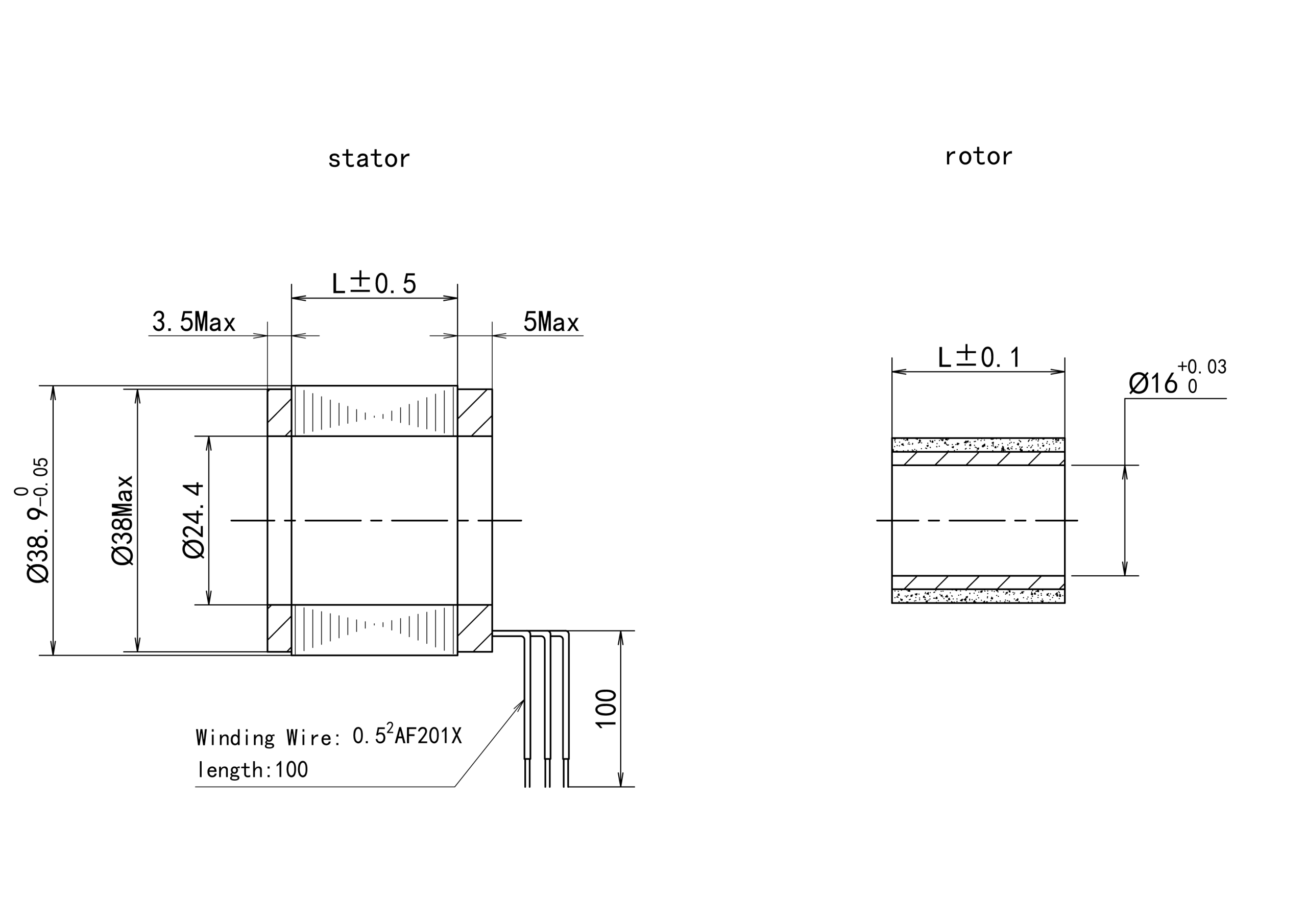

Motor Dimensions (mm)
OEM Service
Source Engineering has established a team of manufacturing partners in Asia to provide our customers with high-quality cost-effective Motors, Gearmotor and Motion Control products for the OEM marketplace.
