SYTT Series
46mm Frameless BLDC Motor
- 3 Phase
- 48 VDC
- 10 Pole
- 25-50 Watt
- 3,000 RPM
Note:
Motor can be customized to meet the customer’s requirements.
Technical Specifications
| Motor Model | 46SYTT482530 | 46SYTT484030 | 46SYTT485030 |
| Number of Phase | 3 | ||
| Number of Poles | 10 | ||
| Rated Voltage(VDC) | 48 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.08 | 0.12 | 0.16 |
| Rated Power(W) | 25 | 40 | 50 |
| Rated Current(A) | 1 | 1.3 | 1.5 |
| Peak Current(A) | 2 | 2.6 | 3 |
| Peak Torque(N.M) | 0.16 | 0.24 | 0.32 |
| Rotor Inertia(kg.cm2) | 0.01 | 0.012 | 0.015 |
| Torque Constant(N.m/A) | 0.102 | 0.13 | 0.113 |
| Torque Constant(V/krpm) | 6.91 | 8.48 | 7.98 |
| Line-Line Resistance(Ω) | 6.2 | 5.6 | 5.1 |
| Line-Line Inductance(mH) | 3.3 | 3.7 | 3.5 |
| Length(mm) | 6/6 | 8/8 | 10/10 |
| Weight(kg) | 0.07 | 0.09 | 0.12 |
Wiring Diagram

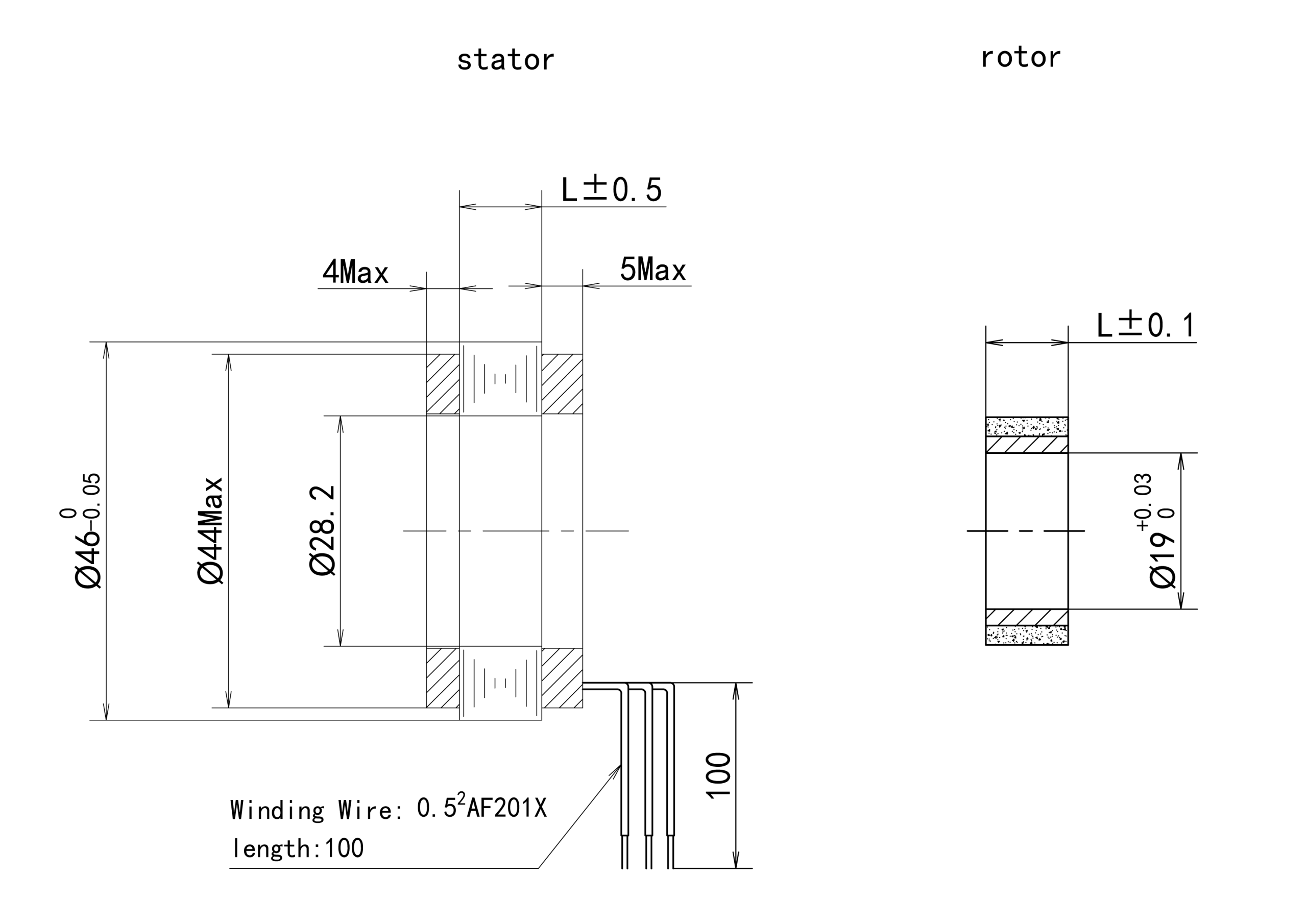

Motor Dimensions (mm)
