SFEC Series
85mm Frameless BLDC Motor
- 3 Phase
- 60 VDC
- 20 Pole
- 293-586 Watt
- 3,000 RPM
Note:
Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Model | 85SFEC602920 | 85SFEC605820 |
| Number of Phase | 3 | |
| Number of Poles | 20 | |
| Rated Voltage(VDC) | 60 | |
| Rated Speed(Rpm) | 2000 | |
| Rated Torque(N.m) | 1.4 | 2.8 |
| Rated Power(W) | 293 | 586 |
| Rated Current(A) | 6.5 | 13 |
| Peak Current(A) | 13 | 26 |
| Peak Torque(N.M) | 2.8 | 5.6 |
| Rotor Inertia(kg.cm2) | 0.2 | 0.5 |
| Torque Constant(N.m/A) | 0.21 | 0.21 |
| Torque Constant(V/krpm) | 17 | 17 |
| Line-Line Resistance(Ω) | 3 | 0.4 |
| Line-Line Inductance(mH) | 1.5 | 1 |
| Length(mm) | 12/13 | 24/25 |
| Weight(kg) | 0.9 | 1.3 |
Wiring Diagram

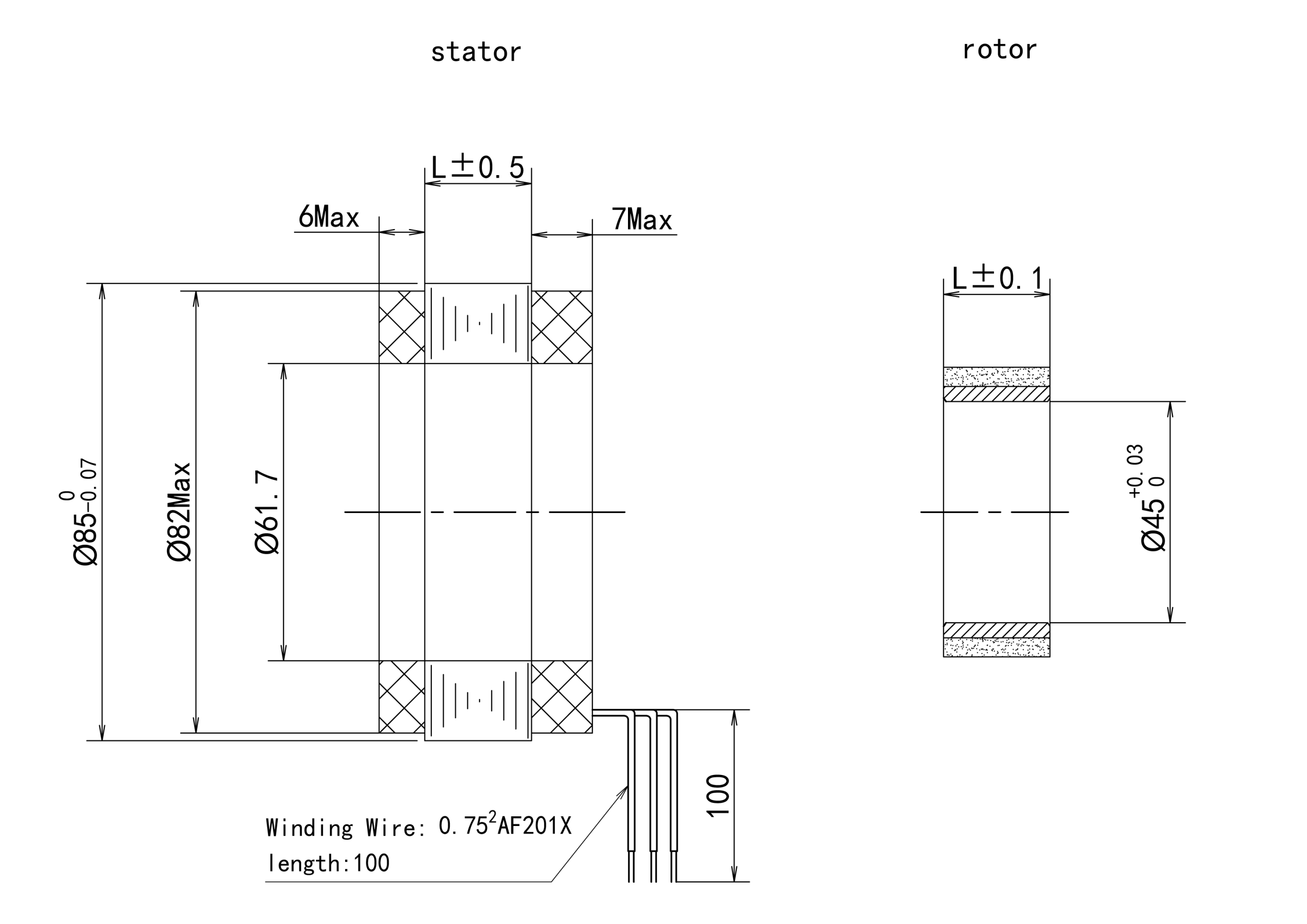

Motor Dimensions (mm)
