ESPX Series - Outer Rotor Design
110mm Frameless BLDC Motor
- 3 Phase
- 48 VDC
- 42 Pole
- 942-1570 Watt
- 3,000 RPM
Note:
Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Model | 110ESXP489430S | 110ESXP481530S |
| Number of Phase | 3 | |
| Number of Poles | 42 | |
| Rated Voltage(VDC) | 48 | |
| Rated Speed(Rpm) | 3000 | |
| Rated Torque(N.m) | 3 | 5 |
| Rated Power(W) | 942 | 1570 |
| Rated Current(A) | 25 | 41.6 |
| Peak Current(A) | 50 | 83.2 |
| Peak Torque(N.M) | 6 | 10 |
| Rotor Inertia(kg.cm2) | 1.2 | 1.9 |
| Torque Constant(N.m/A) | 0.12 | 0.12 |
| Torque Constant(V/krpm) | 5 | 8 |
| Line-Line Resistance(Ω) | 0.2 | 0.2 |
| Line-Line Inductance(mH) | 0.15 | 0.15 |
| L Length(mm) | 15 | 30 |
| Weight(kg) | 0.4 | 0.6 |
Wiring Diagram

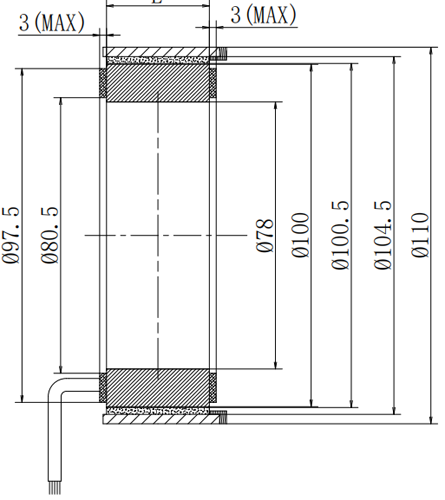

Motor Dimensions (mm)
