EYDN Series- Outer Rotor Design
52mm Frameless BLDC Motor
- 3 Phase
- 48 VDC
- 28 Pole
- 103-311 Watt
- 3,000 RPM
Note:
Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Model | 52EYDN481030 | 52EYDN482030 | 52EYDN483130 |
| Number of Phase | 3 | ||
| Number of Poles | 28 | ||
| Rated Voltage(VDC) | 48 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.33 | 0.66 | 0.99 |
| Rated Power(W) | 103 | 207 | 311 |
| Rated Current(A) | 3 | 6 | 9 |
| Peak Current(A) | 6 | 12 | 18 |
| Peak Torque(N.M) | 0.66 | 1.32 | 1.98 |
| Rotor Inertia(kg.cm2) | 0.13 | 0.23 | 0.33 |
| Torque Constant(N.m/A) | 0.11 | 0.11 | 0.11 |
| Torque Constant(V/krpm) | 12 | 12 | 12 |
| Line-Line Resistance(Ω) | 1 | 0.8 | 0.6 |
| Line-Line Inductance(mH) | 1.3 | 0.9 | 0.4 |
| L Length(mm) | 10 | 20 | 30 |
| Weight(kg) | 0.2 | 0.3 | 0.4 |
Wiring Diagram

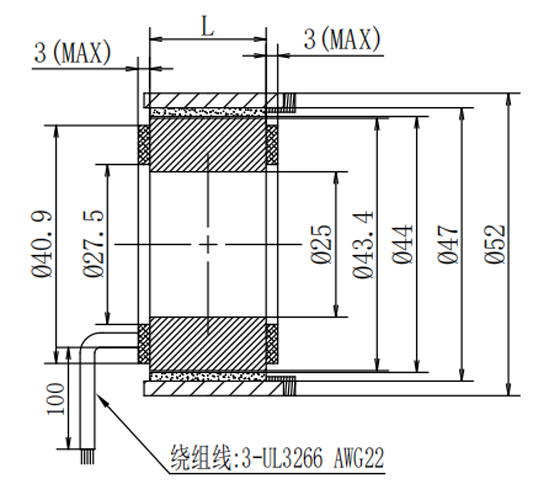

Motor Dimensions (mm)
