EYDN Series - Outer Rotor Design
62mm Frameless BLDC Motor
- 3 Phase
- 48 VDC
- 28 Pole
- 157-314 Watt
- 2,000-3,000 RPM
Note:
Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Model | 62EYDN481530 | 62EYDN483130 | 62EYDN483120 |
| Number of Phase | 3 | ||
| Number of Poles | 28 | ||
| Rated Voltage(VDC) | 48 | ||
| Rated Speed(Rpm) | 3000 | 2000 | |
| Rated Torque(N.m) | 0.5 | 1 | 1.5 |
| Rated Power(W) | 157 | 314 | 314 |
| Rated Current(A) | 4.5 | 9 | 9.2 |
| Peak Current(A) | 9 | 18 | 18.4 |
| Peak Torque(N.M) | 1 | 2 | 3 |
| Rotor Inertia(kg.cm2) | 0.23 | 0.43 | 0.53 |
| Torque Constant(N.m/A) | 0.11 | 0.11 | 0.16 |
| Torque Constant(V/krpm) | 10 | 10 | 20 |
| Line-Line Resistance(Ω) | 1.2 | 0.9 | 0.6 |
| Line-Line Inductance(mH) | 1.3 | 0.8 | 0.4 |
| Length(mm) | 10 | 20 | 30 |
| Weight(kg) | 0.3 | 0.4 | 0.5 |
Wiring Diagram

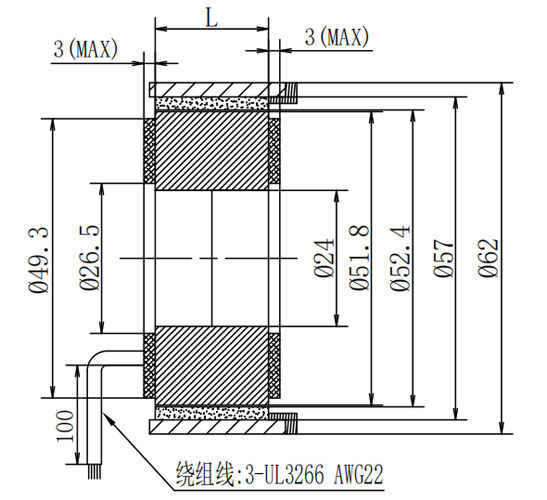

Motor Dimensions (mm)
