ESDN Series - Outer Rotor Design
67mm Frameless BLDC Motor
- 3 Phase
- 48 VDC
- 42 Pole
- 202 Watt
- 2,000 RPM
Note:
We can manufacture products according to customer’s requirements.
Technical Specifications
| Motor Model | 67ESDN482020 |
| Number of Phase | 3 |
| Number of Poles | 42 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(Rpm) | 2000 |
| Rated Torque(N.m) | 1 |
| Rated Power(W) | 202 |
| Rated Current(A) | 6 |
| Peak Current(A) | 12 |
| Peak Torque(N.M) | 2 |
| Rotor Inertia(kg.cm2) | 0.3 |
| Torque Constant(N.m/A) | 0.16 |
| Torque Constant(V/krpm) | 11 |
| Line-Line Resistance(Ω) | 0.7 |
| Line-Line Inductance(mH) | 0.5 |
| L Length(mm) | 11.8 |
| Weight(kg) | 0.4 |

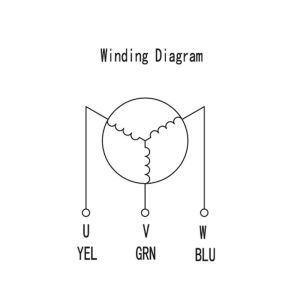

Wiring Diagram

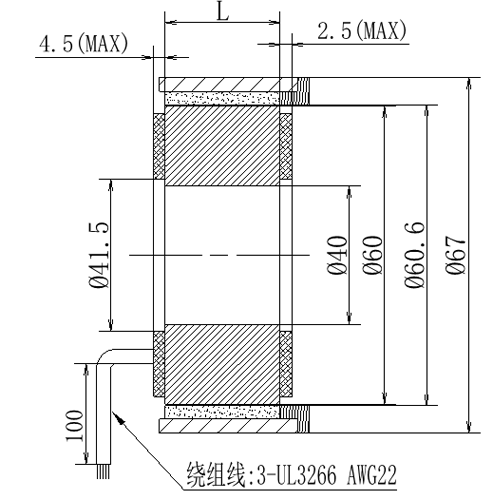

Motor Dimensions (mm)
