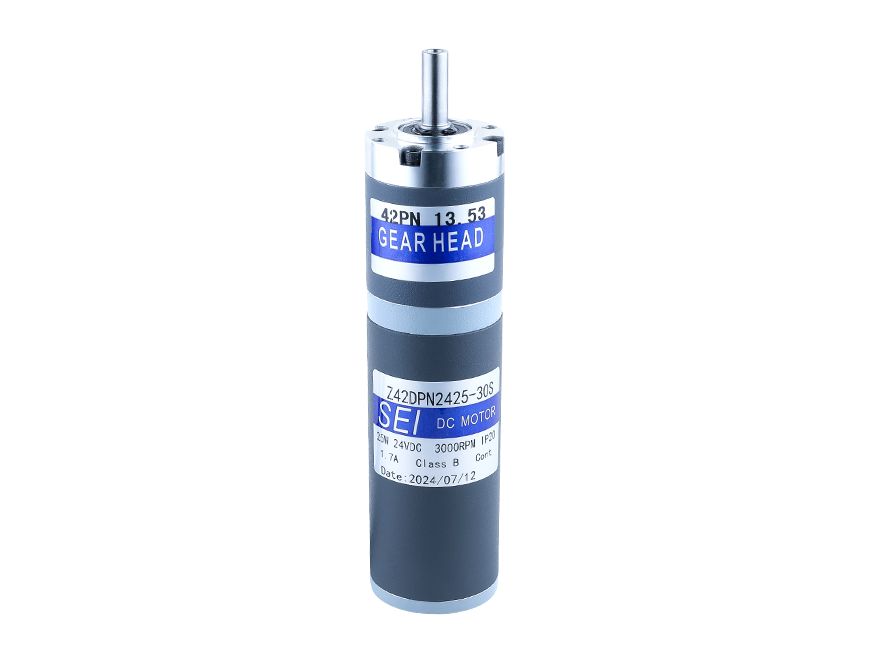

42mm Brush DC Planetary Gear Motor
- 24VDC
- 25 Watt
- Gear Ratio 3.65-392.98:1
- Low noise
- Helical cut gear.
Outside Diameter 42mm DC Brush Motor
| Motor Type | Gearbox Model | Gear Ratio | Dimension |
| Z42DPN | 42PN□ | 3.65~8.63 | 33.8 |
| 13.53~58.22 | 47.4 | ||
| 67.08~392.98 | 61.0 |
Brush DC Motor Technical Data
| Motor Type | Voltage V | Power W | No-load Current A | No-load Speed RPM | Rated Current A | Rated Speed RPM | Rated Torque N.m | Motor Life H |
| Z42DPN2425-30S | 24 | 25 | 0.6 | 3500 | 1.6 | 3000 | 0.080 | 600 |
Brush DC Planetary Gear Motor Technical Data-Z42DPN2425-30S
| Ratio | 3.65 | 5.36 | 6.55 | 8.63 | 13.53 | 18.92 | 24.65 | 28.05 | 33.92 | 44.69 | 58.22 | 67.08 | 81.11 |
| Output shaft speed | 822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 | 89 | 67 | 52 | 45 | 37 |
| Allowable torque | 0.26 | 0.39 | 0.47 | 0.62 | 0.88 | 1.23 | 1.60 | 1.82 | 2.20 | 2.90 | 3.77 | 2.75 | 4.74 |
| Reduction stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
| Ratio | 91.36 | 102.88 | 118.98 | 127.74 | 145.36 | 165.64 | 191.56 | 231.61 | 301.68 | 392.98 |
| Output shaft speed | 33 | 29 | 25 | 24 | 21 | 18 | 16 | 13 | 9.9 | 7.6 |
| Allowable torque | 5.34 | 6.01 | 6.95 | 7.46 | 8.49 | 9.67 | 11.19 | 13.53 | 15.00 | 15.00 |
| Reduction stage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
