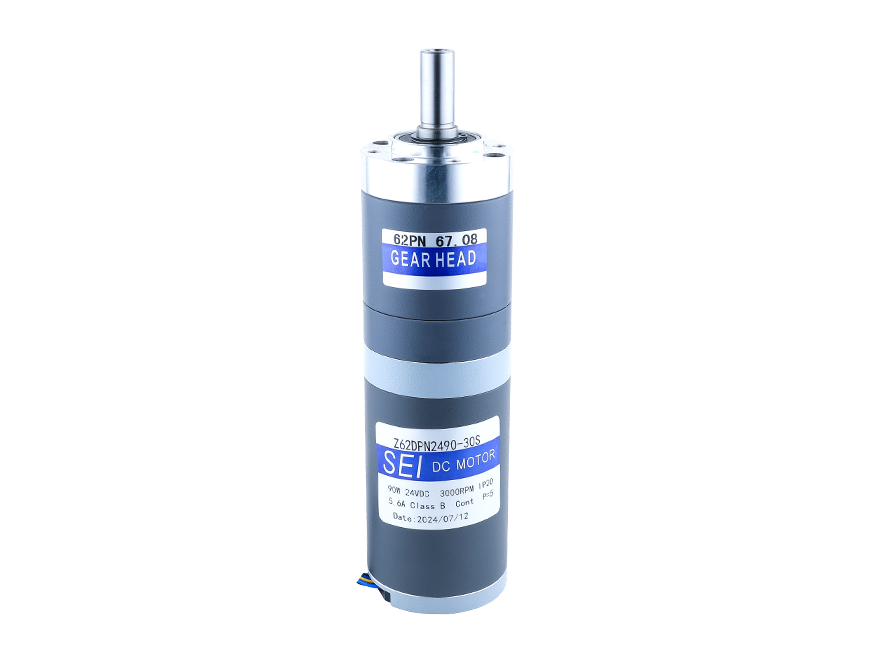

62mm Brush DC Planetary Gear Motor

Datasheet
+Contact us
  • 24VDC
  • 40-90 Watt
  • Gear Ratio 3.65-392.98:1
  • Low noise
  • Helical cut gear.

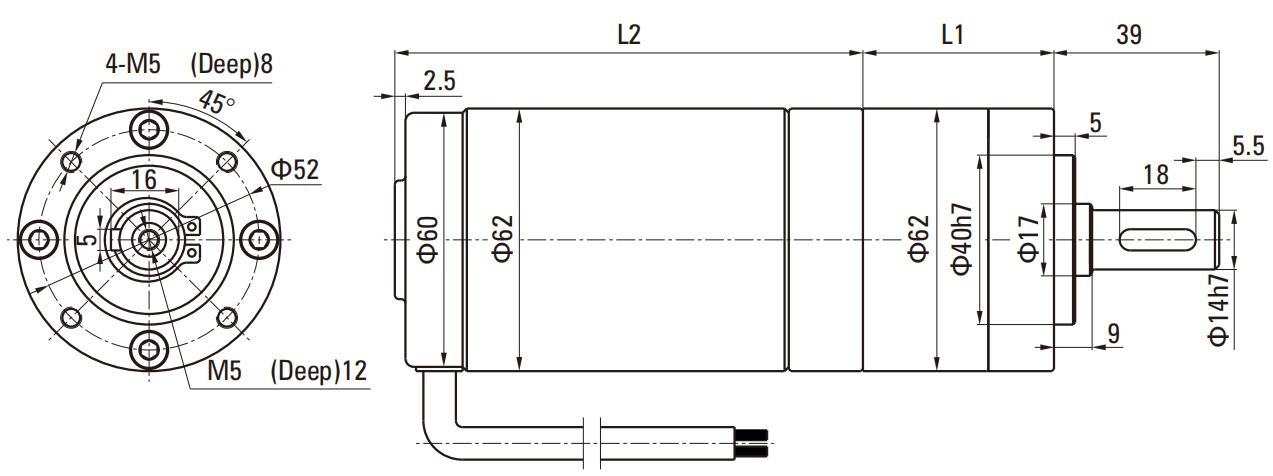

Outside Diameter 62mm DC Brush Motor

Motor Type Gearbox Model Gear Ratio Dimension
Z62DPN 62PN□ 3.65~8.63 45.1
13.53~58.22 62.7
67.08~392.98 80.3

Brush DC Motor Technical Data

Motor Type Voltage V Rated Power W No-load Current A No-load Speed RPM Rated Current A Rated Speed RPM Rated Torque N.m Motor Life H Dimension mm
Z62DPN2440-30S 24 40 1.2 3500 2.5 3000 0.127 2000 110.5
Z62DPN2460-30S 24 60 1.2 3500 3.5 3000 0.191 2000 121.5
Z62DPN2490-30S 24 90 1.5 3700 5.5 3000 0.287 2000 133.5

Brush DC Planetary Gear Motor Technical Data-Z62DPN2460-30S

Ratio 3.65 5.36 6.55 8.63 13.53 18.92 24.65 28.05 33.92 44.69 58.22 67.08 81.11
Output shaft speed 822 560 458 348 222 159 122 107 89 67 52 45 37
Allowable torque 0.63 0.92 1.13 1.48 2.09 2.93 3.81 4.34 5.25 6.91 9.01 9.35 11.31
Reduction stage 1 1 1 1 2 2 2 2 2 2 2 3 3
Ratio 91.36 102.88 118.98 127.74 145.36 165.64 191.56 231.61 301.68 392.98
Output shaft speed 33 29 25 24 21 18  16 13 9.9 7.6
Allowable torque 12.74 14.34 16.58 17.81 20.27 23.10 26.71 32.29 42.06 50.00
Reduction stage 3 3 3 3 3 3 3 3 3 3
