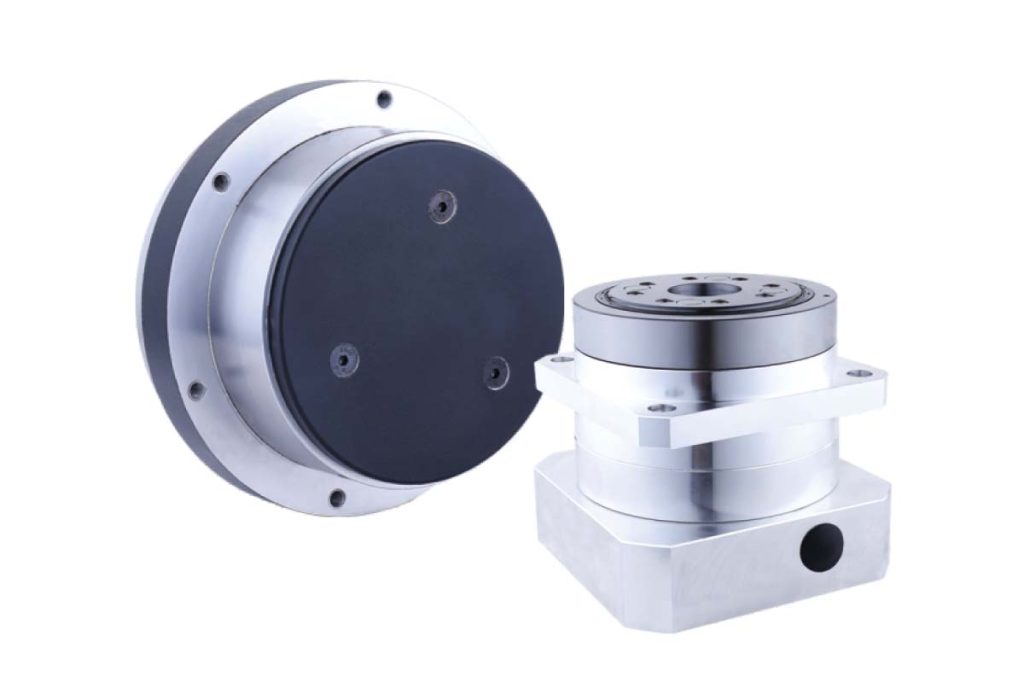

Reducer Performance Data
| Reduction Ratio | i
(Recommend) | 5 | 6 | 7 | 9 |
| Nominal output torque T2N | Nm | 60 | 55 | 50 | 40 |
| Maximu acceleration torque T2B | Nm | Rated torque*1.8 |
| Sudden stop torque T2NOT | Nm | 3 time the rated torque |
| Nominal input speed | rpm | 3000 |
| Maximun input speed | rpm | 4500 |
| Backlash | arcmin | ≤25 |
| Maximum radial load | N | 3000 |
| Maximum axial load | N | 500 |
| Noise value Distance 1m (n=3000 rpm, No load) | dB(A) | ≤60 |
| Service life | h | 20000 |
| Efficiency | % | 95% |
| Use of temperature | ℃ | -10℃～+90℃ |
| Lubrication | – | Lifetime Lubrication |
| Weight | kg | ≤3.6 |
| Rubber wheel specifications (Recommended) | – | 150*40 Polyurethane rubber wheel optional |
| Stage number | – | 1 |

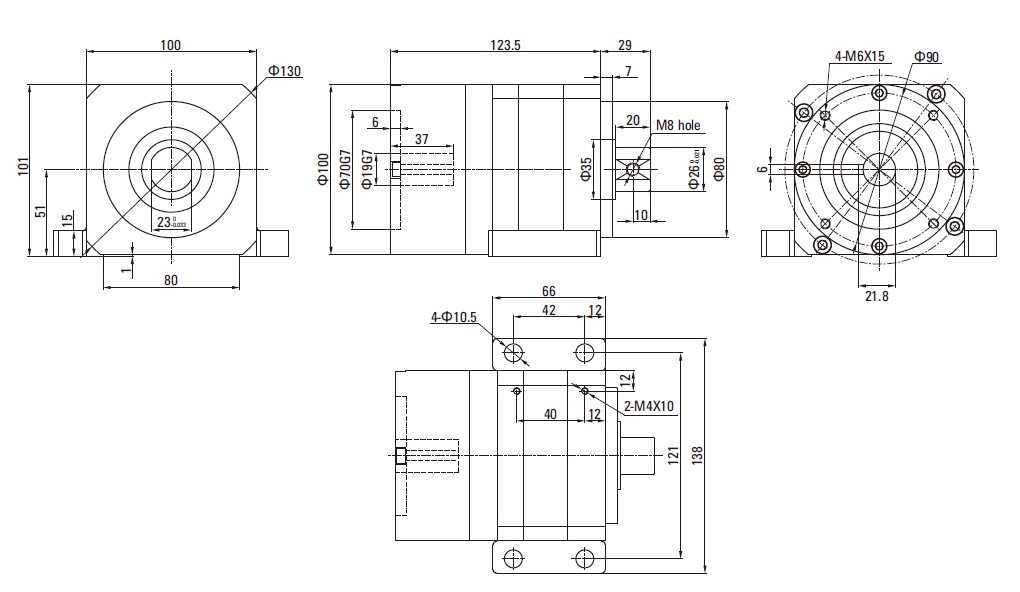

Dimensional Drawing
Reducer Performance Data
| Reduction Ratio |
i
(Recommend) |
12 |
15 |
16 |
20 |
| Nominal output torque T2N |
Nm |
55 |
50 |
75 |
70 |
| Maximu acceleration torque T2B |
Nm |
Rated torque*1.8 |
| Sudden stop torque T2NOT |
Nm |
3 time the rated torque |
| Nominal input speed |
rpm |
3000 |
| Maximun input speed |
rpm |
4500 |
| Backlash |
arcmin |
≤25 |
| Maximum radial load |
N |
3000 |
| Maximum axial load |
N |
500 |
| Noise value Distance 1m (n=3000 rpm, No load) |
dB(A) |
≤60 |
| Service life |
h |
20000 |
| Efficiency |
% |
92% |
| Use of temperature |
℃ |
-10℃～+90℃ |
| Lubrication |
– |
Synthetic grease |
| Weight |
kg |
≤4.5 |
| Rubber wheel specifications (Recommended) |
– |
150*40 Polyurethane rubber wheel optional |
| Stage number |
– |
2 |

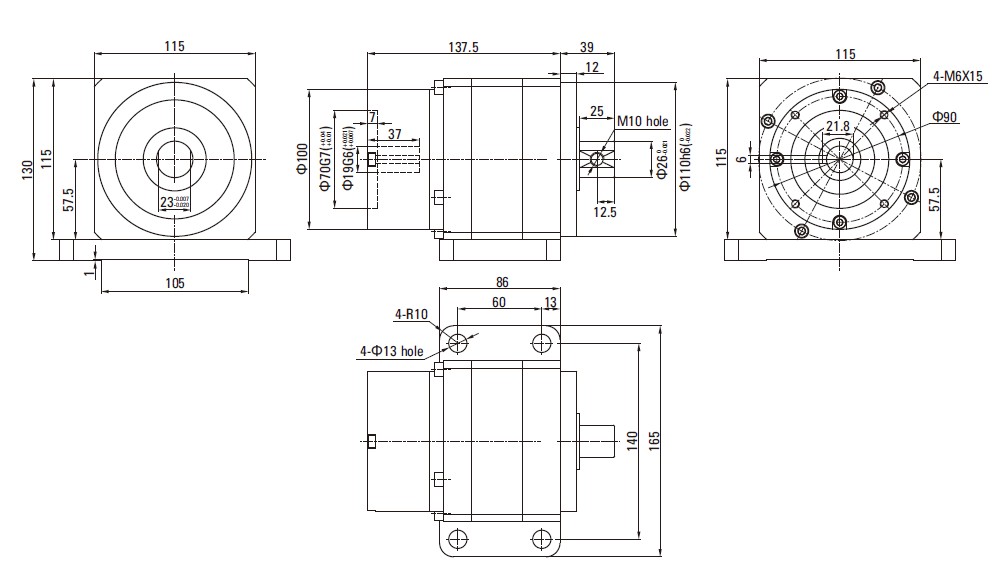

Dimensional Drawing
Reducer Performance Data
| Reduction Ratio |
i
(Recommend) |
15 |
18 |
20 |
21 |
30 |
| Nominal output torque T2N |
Nm |
80 |
140 |
100 |
130 |
150 |
| Maximu acceleration torque T2B |
Nm |
Rated torque*1.8 |
| Sudden stop torque T2NOT |
Nm |
3 time the rated torque |
| Nominal input speed |
rpm |
3000 |
| Maximun input speed |
rpm |
6000 |
| Backlash |
arcmin |
≤25 |
| Maximum radial load |
N |
8000 |
| Maximum axial load |
N |
2000 |
| Noise value Distance 1m (n=3000 rpm, No load) |
dB(A) |
≤63 |
| Service life |
h |
20000 |
| Efficiency |
% |
92% |
| Use of temperature |
℃ |
-10℃～+90℃ |
| Lubrication |
– |
Synthetic grease |
| Weight |
kg |
≤5 |
| Rubber wheel specifications (Recommended) |
– |
180*58.5 Polyurethane rubber wheel optional |
| Stage number |
– |
2 |

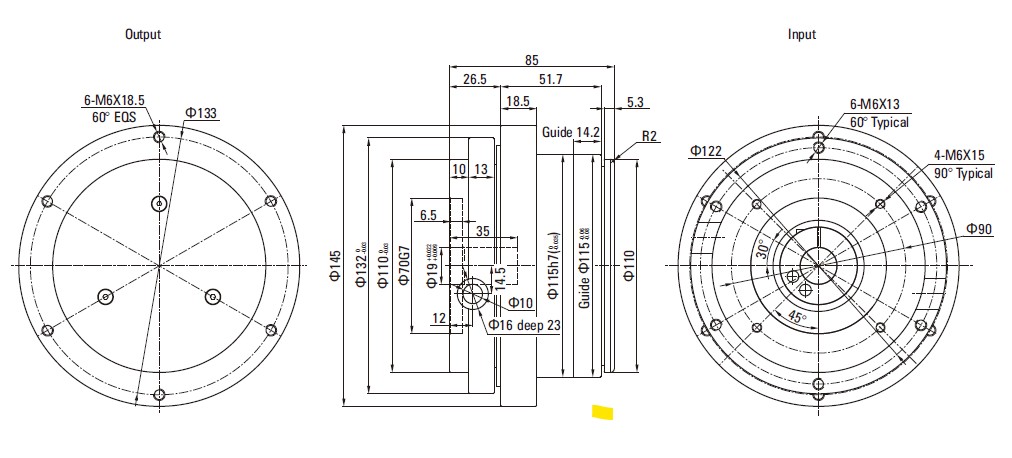

Dimensional Drawing
Reducer Performance Data
| Reduction Ratio |
i
(Recommend) |
80 |
| Nominal output torque T2N |
Nm |
180 |
| Sudden stop torque T2NOT |
Nm |
3 time the rated torque |
| Nominal input speed |
rpm |
3000 |
| Backlash |
arcmin |
≤25 |
| Maximum radial load |
N |
8000 |
| Maximum axial load |
N |
3300 |
| Noise value Distance 1m (n=3000 rpm, No load) |
dB(A) |
≤63 |
| Service life |
h |
20000 |
| Efficiency |
% |
92% |
| Use of temperature |
℃ |
-10℃～+90℃ |
| Lubrication |
– |
Synthetic grease |
| Weight |
kg |
≤5 |
| Stage number |
– |
2 |

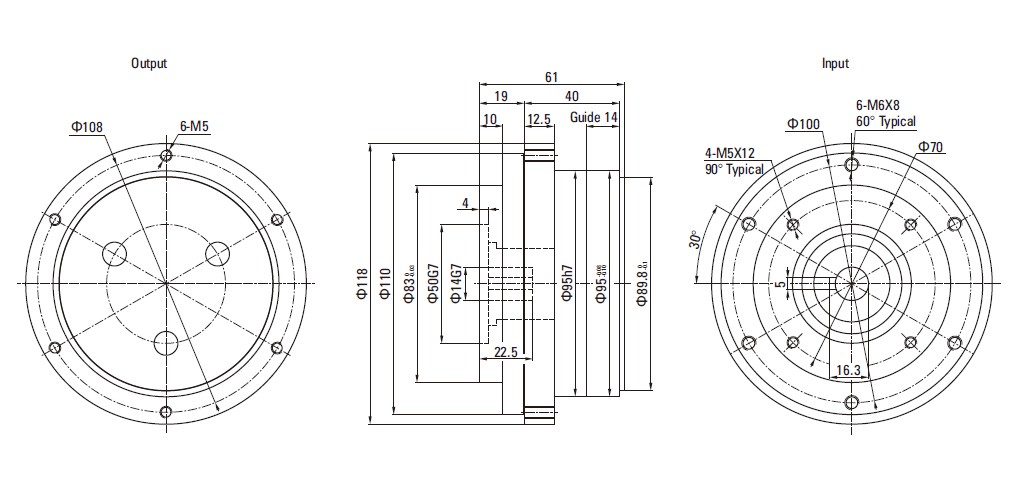

Dimensional Drawing
Reducer Performance Data
| Reduction Ratio |
i
(Recommend) |
80 |
| Nominal output torque T2N |
Nm |
180 |
| Sudden stop torque T2NOT |
Nm |
3 time the rated torque |
| Nominal input speed |
rpm |
3000 |
| Backlash |
arcmin |
≤25 |
| Maximum radial load |
N |
8000 |
| Maximum axial load |
N |
3300 |
| Noise value Distance 1m (n=3000 rpm, No load) |
dB(A) |
≤63 |
| Service life |
h |
20000 |
| Efficiency |
% |
92% |
| Use of temperature |
℃ |
-10℃～+90℃ |
| Lubrication |
– |
Synthetic grease |
| Weight |
kg |
≤5 |
| Stage number |
– |
2 |

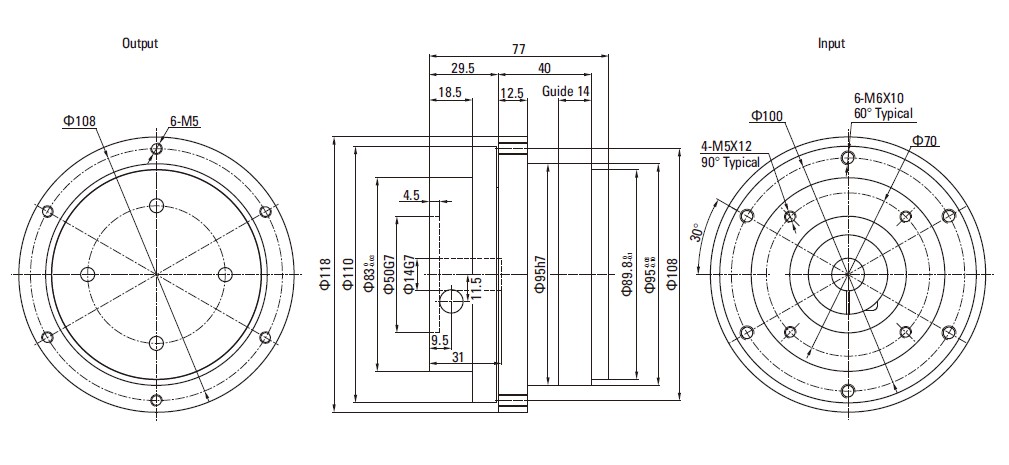

Dimensional Drawing
