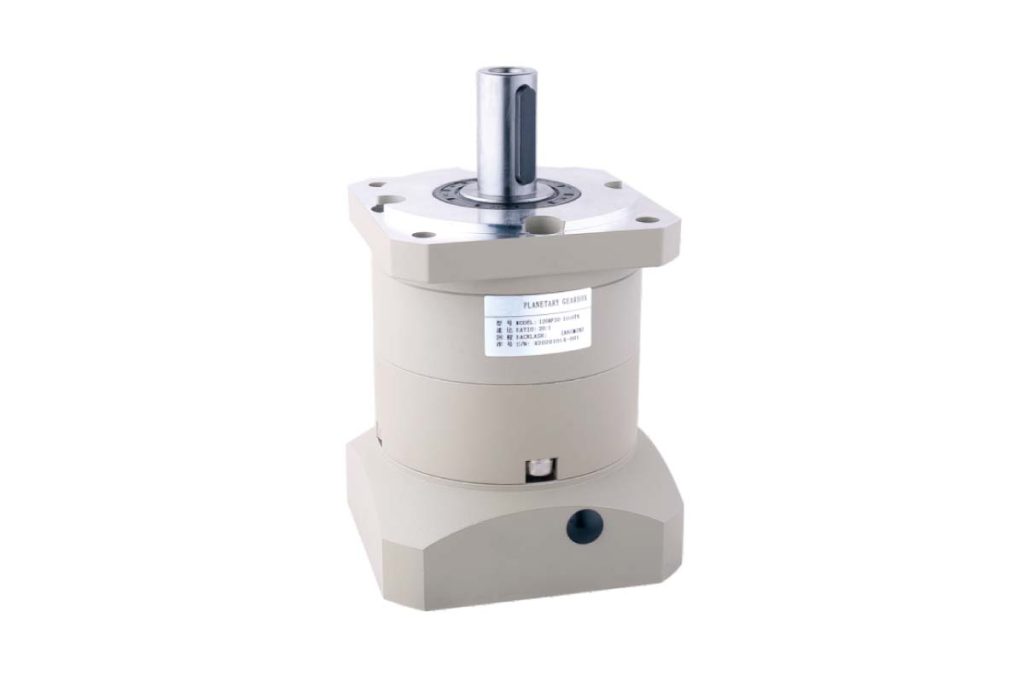

SBF Series Gearbox

Key features

  • Low noise
  • Helical Gear
  • Backlash ≤7-≤10 arcmin
  • 97% efficiency
  • Operating Temp -10° to 90°C
  • Lifetime lubrication
  • Multiple stage configurations
  • IP65
  • Customs available
Datasheet
Inquire Now!

Ordering Information

1Gear head frame size: 060/090/115/142/180
2Gear head series code:
SBF: Square mounting flange series
3Gear ratio: Single stage 10
4 Cabin seatStagePrecise P1Standard P2
Accuracy
Output shaft load value at ±3% of allowable output torque		 135
060SBF257
090SBF135
257
 135
115SBF257
142SBF135
257
 135
180SBF257
5Input type shaft
S: Overall locking (Omitted) (Can be used regardless of whether the motor has a keyway)
S1: Locking with locking ring (Can be used regardless of whether the motor has a keyway)
S2: Lock with keyway (Input shaft with key) K: With keyway
A: Other adapters (Please contact us)
6Applicable servo motor power (W)
7Corresponding dimension table of input flange and servo motor ( )

Maximum radial force and maximum axial force, when the output is 100RPM, it acts on the center position (L/2) of the output shaft.


Product type 60 90 115 142 180 Reduction ratio Stage
Rated output torque N.M 45 120 198 332 578 3 1
40 130 280 532 1040 4
50 150 320 650 1190 5
40 130 290 540 1090 7
35 110 250 490 990 8
30 90 220 440 890 10
45 120 198 332 578 15 2
40 130 280 532 1040 20
50 150 320 640 1190 25
40 130 290 540 1190 35
35 110 250 490 990 40
50 150 320 640 1190 50
45 140 300 – – 64
40 130 290 540 1090 70
35 110 250 490 990 80
30 90 220 440 890 100
Life Hour 20000
Instant emergency stop torque N.M 3 times rated output torque
Product type 60 90 115 142 180 Unit Stage
Radial force 1100 3000 6023 9230 13500 N –
Axial force 630 1230 2550 4200 7000 N –
Full load efficiency ≥97 % 1
≥94 2
Weight 1.055 2.68 6.32 18.3 26.8 Kg 1
1.065 3.135 7.2 22.14 33.55 2
Operating temperature -10~+90 ℃ –
Protection level IP65
Lubrication method Lifetime lubrication
Installation method Any
Product type 60 90 115 142 180 Reduction ratio Stage
Moment of inertia Kgcm2 0.16 0.61 3.25 9.21 28.98 3 1
0.14 0.48 2.74 7.54 23.67 4
0.13 0.47 2.71 7.42 23.29 5
0.13 0.45 2.62 7.14 22.48 7
0.13 0.44 2.58 7.07 22.59 8
0.13 0.44 2.57 7.03 22.51 10
0.03 0.13 0.47 2.71 7.42 15 2
0.03 0.13 0.47 2.71 7.42 20
0.03 0.13 0.47 2.71 7.42 25
0.03 0.13 0.47 2.71 7.42 35
0.03 0.13 0.47 2.71 7.42 40
0.03 0.13 0.44 2.57 7.03 50
0.03 0.13 0.44 – – 64
0.03 0.13 0.44 2.57 7.03 70
0.03 0.13 0.44 2.57 7.03 80
0.03 0.13 0.44 2.57 7.03 100
Product type 60 90 115 142 180 Stage
Backlash arcmin ≤5 ≤5 ≤5 ≤5 ≤5 1
≤7 ≤7 ≤7 ≤7 ≤7 2
Torsion resistance N.M/arcmin 7 14 25 50 145 –
Noise dB(A) ≤63 –
Output speed min-1 6000 6000 6000 6000 6000 –
Recommended input speed min-1 3000 3000 3000 3000 3000 –
  1. Moment of inertia is related to input shaft.
  2. Noise detection standard, distance 1m, measured at input speed of 3000 rpm with no load.
