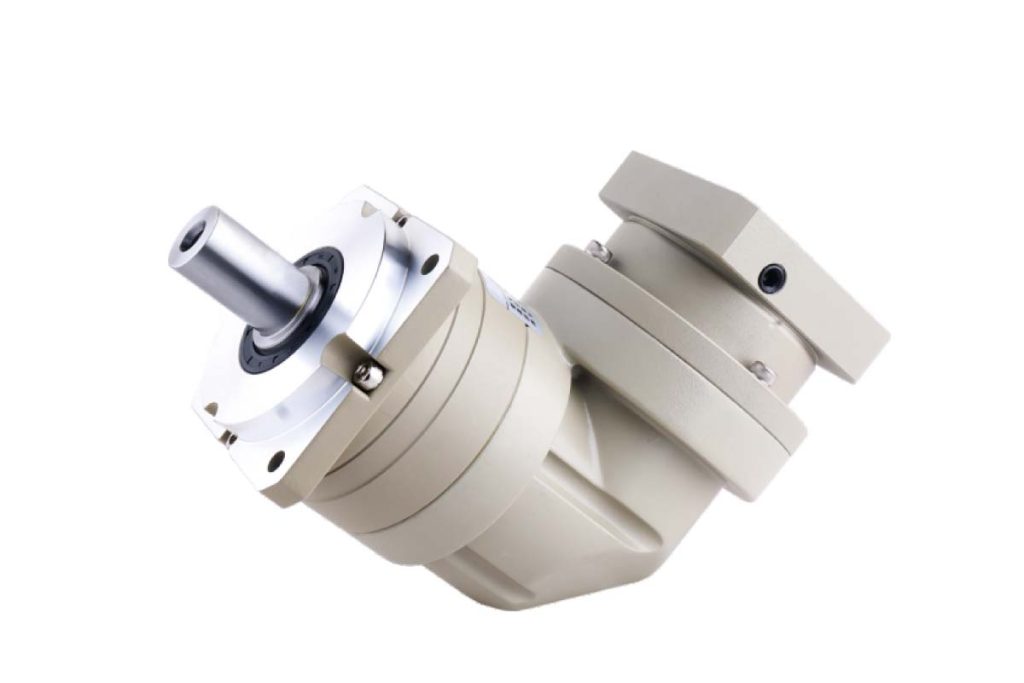

SBFWR/SAEWR/SAFWR SERIES GEAR BOX

  • High Precision
  • Quiet and smooth operation
  • High Torque
  • Helical Gear
  • Backlash ≤8-≤15 arcmin
  • ≥97% efficiency
  • IP65
  • Operating Temp -10° to 90°C
  • Multiple stage configurations
  • Customs available
Datasheet
Inquire Now!

Ordering Information

1Gear head frame size: 060/090/60/90
2Gear head series code: SBFWR: Square mounting flange series
3Gear ratio: Single stage 10
4

Accuracy


Output shaft load value at ±3% of allowable output torque

Cabin seatStageStandard (omitted)
060SBFWR18
212
090SBFWR18
212
60SAE/FWR110
215
90SAE/FWR110
215
5Input shaft type
S: Overall locking (Omitted) (Can be used regardless of whether the motor has a keyway)
S1: Locking with locking ring (Can be used regardless of whether the motor has a keyway)
S2: Lock with keyway (Input shaft with key)
K: With keyway
A: Other adapters (Please contact us)
6Applicable servo motor power (W)
7Corresponding dimension table of input flange and servo motor ( )

Maximum radial force and maximum axial force, when the output is 100RPM, it acts on the center position (L/2) of the output shaft.

Product type 060SBFWR090SBFWR60SAE/FWR90SAE/FWRReduction ratioStage
Rated output torqueN.M45120318531
4013050954
50150411055
4013030937
3511023838
3090187010
4512031115152
401305013020
501504113525
401504112535
351504111540
501504113550
45110238364
401203011070
35110238380
30901873100
LifeHour20000
Instant emergency stop torqueN.M3 times rated output torque2 times rated output torque–

Product type060SBFWR090SBFWR60SAE/FWR90SAE/FWRUnitStage
Radial force110030007502100N–
Axial force63012303751050N–
Full load efficiency ≥97 1
 ≥94%2
Weight1.65.61.55.6Kg1
1.96.31.86.32
Operating temperature -10~+90℃–
Protection levelIP65
Lubrication methodLifetime lubrication
Installation methodAny

Product type 060SBFWR090SBFWR60SAE/FWR90SAE/FWRReduction ratioStage
Moment of inertiaKgcm20.32.30.32.331
0.32.30.32.34
0.32.30.32.35
0.32.30.32.37
0.32.30.32.38
0.32.30.32.310
0.070.30.070.3152
0.070.30.070.320
0.070.30.070.325
0.070.30.070.335
0.070.30.070.340
0.070.30.070.350
0.070.30.070.364
0.070.30.070.370
0.070.30.070.380
0.070.30.070.3100

Product type 060SBFWR090SBFWR60SAE/FWR90SAE/FWRStage
Backlasharcmin≤8≤8≤10≤101
≤12≤12≤15≤152
Torsion resistanceN.M/arcmin7141.84.5–
NoisedB(A)≤65≤73–
Output speedmin-16000600045004500–
Recommended input speedmin-13000300030003000–

Maximum radial force and maximum axial force, when the output is 100RPM, it acts on the center position (L/2) of the output shaft.

Product type 060SBFWR 090SBFWR 60SAE/FWR 90SAE/FWR Reduction ratio Stage
Moment of inertia Kgcm2 0.3 2.3 0.3 2.3 3 1
0.3 2.3 0.3 2.3 4
0.3 2.3 0.3 2.3 5
0.3 2.3 0.3 2.3 7
0.3 2.3 0.3 2.3 8
0.3 2.3 0.3 2.3 10
0.07 0.3 0.07 0.3 15 2
0.07 0.3 0.07 0.3 20
0.07 0.3 0.07 0.3 25
0.07 0.3 0.07 0.3 35
0.07 0.3 0.07 0.3 40
0.07 0.3 0.07 0.3 50
0.07 0.3 0.07 0.3 64
0.07 0.3 0.07 0.3 70
0.07 0.3 0.07 0.3 80
0.07 0.3 0.07 0.3 100
Product type 060SBFWR 090SBFWR 60SAE/FWR 90SAE/FWR Stage
Backlash arcmin ≤8 ≤8 ≤10 ≤10 1
≤12 ≤12 ≤15 ≤15 2
Torsion resistance N.M/arcmin 7 14 1.8 4.5 –
Noise dB(A) ≤65 ≤73 –
Output speed min-1 6000 6000 4500 4500 –
Recommended input speed min-1 3000 3000 3000 3000 –

1. Moment of inertia is related to input shaft.
2. Noise detection standard, distance 1m, measured at input speed of 3000 rpm with no load.
