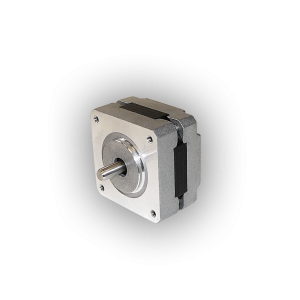

NEMA 16 High Resolution Stepping motor
Features:
- 0.9 degree Step Angle
- High Accuracy, Low Noise, and Low Vibration
- Holding Torque up to 35 oz-in
0.9° NEMA Size 16 (39mm) Stepping Motor Specifications
| Model No. | Rated Voltage | Per Phase | Holding Torque | # of Leads | Rotor Inertia | Weight | ||||
| Current | Resistance | Inductance | ||||||||
| Single Shaft | Double Shaft | V | A | W | MH | Oz-in | Kg-cm | g-cm2 | Kg | |
| 16H080M-028-4A | 16H080M-028-4B | 7.84 | 0.28 | 28 | 51 | 11.1 | 0.8 | 4 | 11 | 0.14 |
| 16H080M-040-6A | 16H080M-040-6B | 5.6 | 0.40 | 14 | 11 | 7.8 | 0.56 | 6 | ||
| 16H100M-046-4A | 16H100M-046-4B | 6.006 | 0.46 | 13.2 | 35 | 16.9 | 1.2 | 4 | 12 | 0.16 |
| 16H100M-065-6A | 16H100M-065-6B | 4.29 | 0.65 | 6.6 | 7.5 | 12.5 | 0.9 | 6 | ||
| 16H125M-046-4A | 16H125M-046-4B | 6.37 | 0.46 | 14 | 28 | 26.2 | 1.9 | 4 | 14 | 0.18 |
| 16H125M-065-6A | 16H125M-065-6B | 4.55 | 0.65 | 7 | 6 | 19.4 | 1.4 | 6 | ||
| 16H138M-057-4A | 16H138M-057-4B | 6.72 | 0.57 | 12 | 31 | 31.8 | 2.3 | 4 | 16 | 0.23 |
| 16H138M-080-6A | 16H138M-080-6B | 4.8 | 0.8 | 6 | 6.8 | 23.6 | 1.7 | 6 | ||
| 16H150M-057-4A | 16H150M-057-4B | 8.4 | 0.57 | 15 | 28 | 37.5 | 2.7 | 4 | 20 | 0.28 |
| 16H150M-080-6A | 16H150M-080-6B | 6 | 0.8 | 7.5 | 6 | 27.8 | 2 | 6 | ||
| 16H176M-035-4A | 16H176M-035-4B | 4.62 | 0.35 | 13.2 | 24.5 | 35 | 2.52 | 4 | 28 | 0.38 |
