BLDC Servo Motor
16SYTTS485030-24D8PJ3EC-1
- 3 Phase
- 10 Pole
- 40mm
- Length: 64mm
- Voltage: 48VDC (24VDC available)
- Power: 50W
- Speed : 3000 RPM
- Encoder resolution: 1000, 1024, 2500/17bit
Note:
Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Specification | 16SYTTS485030-24D8PJ3EC-1 |
| Number of phase | 3 |
| Number of Poles | 10 |
| Rated Voltage | 48VDC (24VDC available) |
| Rated Speed | 3000rpm |
| Rated Torque | 0.16N. m |
| Rated Power | 50W |
| Rated Current | 1.8A |
| Peak Current | 5.4A |
| Peak Torque | 0.48N. m |
| Resistance | 3.5±10%Ω |
| Inductance | 3±20% mH |
| Torque Constant | 0. 09Nm/A |
| Voltage Constant | 3.28V/kRPM |
| Rotor Inertia | 0. 03Kg. cm2 |
| Weight | 0.3Kg |
| Insulation Class | Class B |
| Dielectric Strength | 1000VDC for one minute |
| Insulation Resistance | 50MΩ Min. |
Wiring Diagram

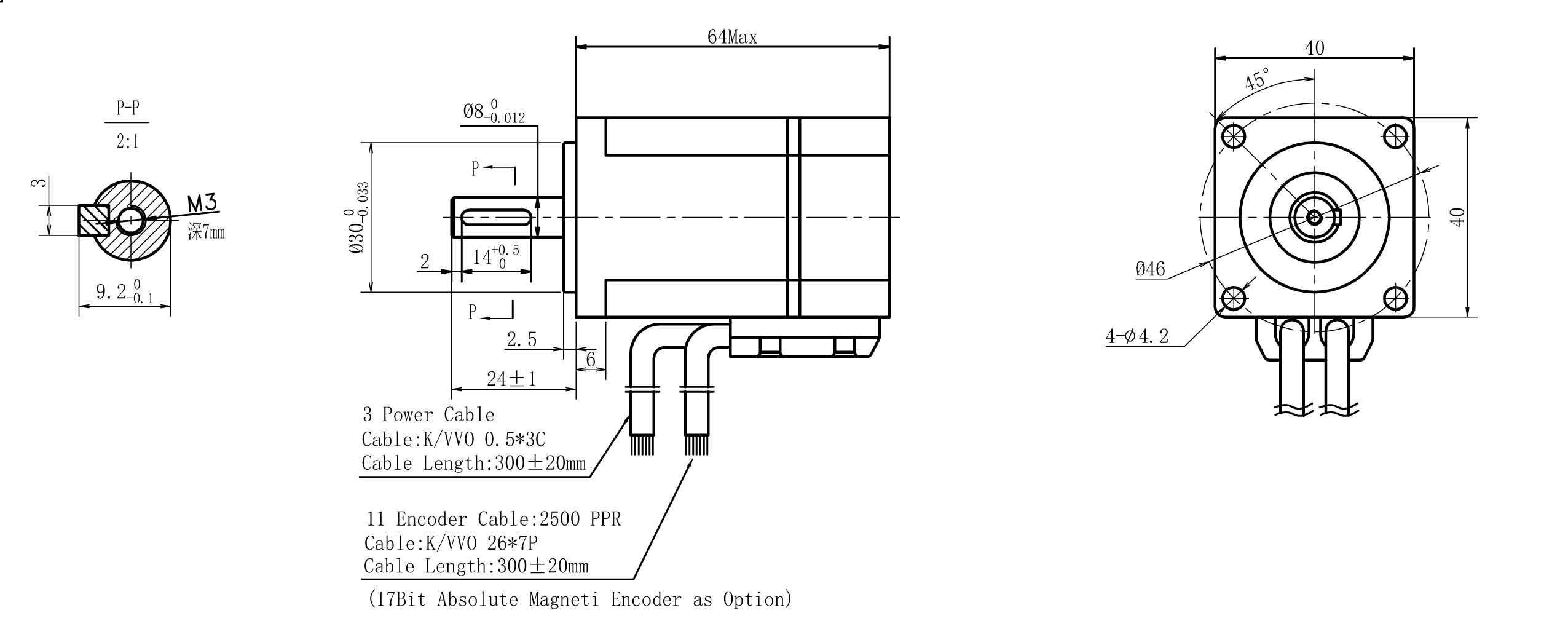

Motor Dimensions (mm)
OEM Service
Source Engineering has established a team of manufacturing partners in Asia to provide our customers with high-quality cost-effective Motors, Gearmotor and Motion Control products for the OEM marketplace.
