BLDC Servo Motor

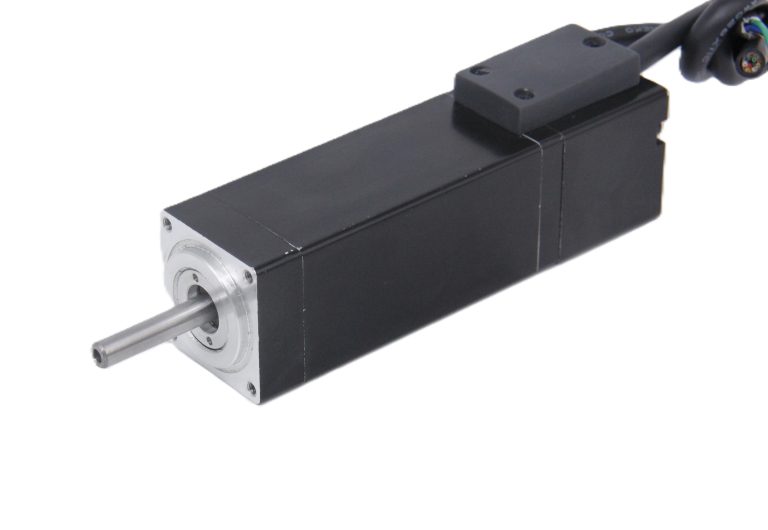

28mm Servo Motor 11SYNE Low Voltage Series
- 3 Phase
- Encoder resolution: 1000, 1024, 2500/17bit
Technical Specifications
| Motor Model | 11SYNE482530 | 11SYNE483830 | 11SYNE485030 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage(VDC) | 48 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.08 | 0.12 | 0.16 |
| Rated Power(W) | 25 | 38 | 50 |
| Rated Current(A) | 0.9 | 1.3 | 1.8 |
| Peak Current(A) | 2.7 | 3.9 | 5.4 |
| Peak Torque(N.M) | 0.24 | 0.36 | 0.48 |
| Rotor Inertia(kg.cm2) | 0.018 | 0.023 | 0.028 |
| Torque Constant(N.m/A) | 0.11 | 0.11 | 0.11 |
| Torque Constant(V/krpm) | 3.5 | 3.5 | 3.5 |
| Line-Line Resistance(Ω) | 3.3 | 2.8 | 2.3 |
| Line-Line Inductance(mH) | 2.3 | 1.8 | 1.3 |
| L Length(mm) | 52 | 62 | 72 |
| Weight(kg) | 0.4 | 0.6 | 0.8 |
| (P/R）Encoder Resolution | 1000, 1024, 2500, 4096, 17bit | ||
Wiring Diagram

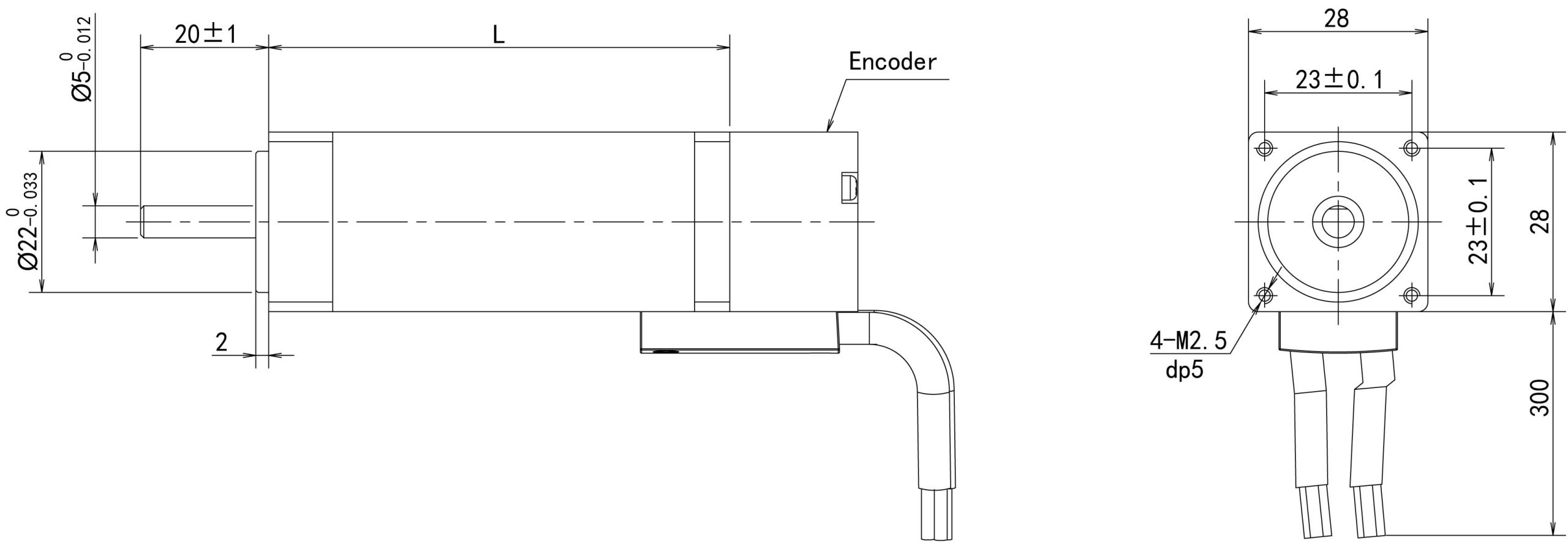

Motor Dimensions (mm)
