BLDC Servo Motor (NEMA)
34SSTT487530-EC625X
- NEMA 34
- 3 Phase
- 10 Pole
- Length: 130mm
- Voltage: 48VDC
- Power: 750W
- Speed : 3000
- Encoder resolution: 1000, 1024, 2500/17bit, 23bit
Note:
Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Specification | 34SSTT487530-EC625X |
| Number of phase | 3 |
| Number of Poles | 10 |
| Rated Voltage | 48VDC |
| Rated Speed | 3000rpm |
| Rated Torque | 2.39N. m |
| Rated Power | 750W |
| Rated Current | 21A |
| Peak Current | 42A |
| Peak Torque | 4.78N.m |
| Resistance | TBD |
| Inductance | TBD |
| Torque Constant | 0.11Nm/A |
| Voltage Constant | 10/V/kRPM |
| Rotor Inertia | 2.8Kg. cm2 |
| Weight | 3.9Kg |
| Insulation Class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
Wiring Diagram

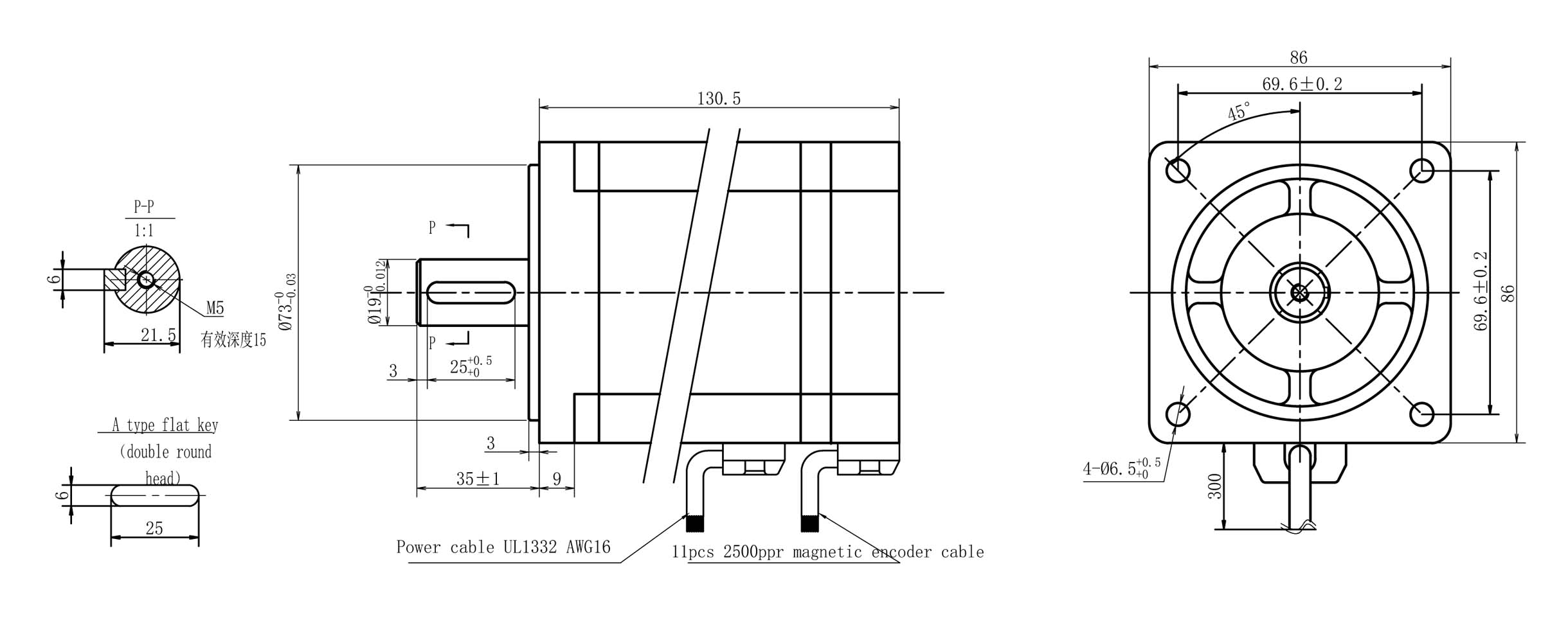

Motor Dimensions (mm)
