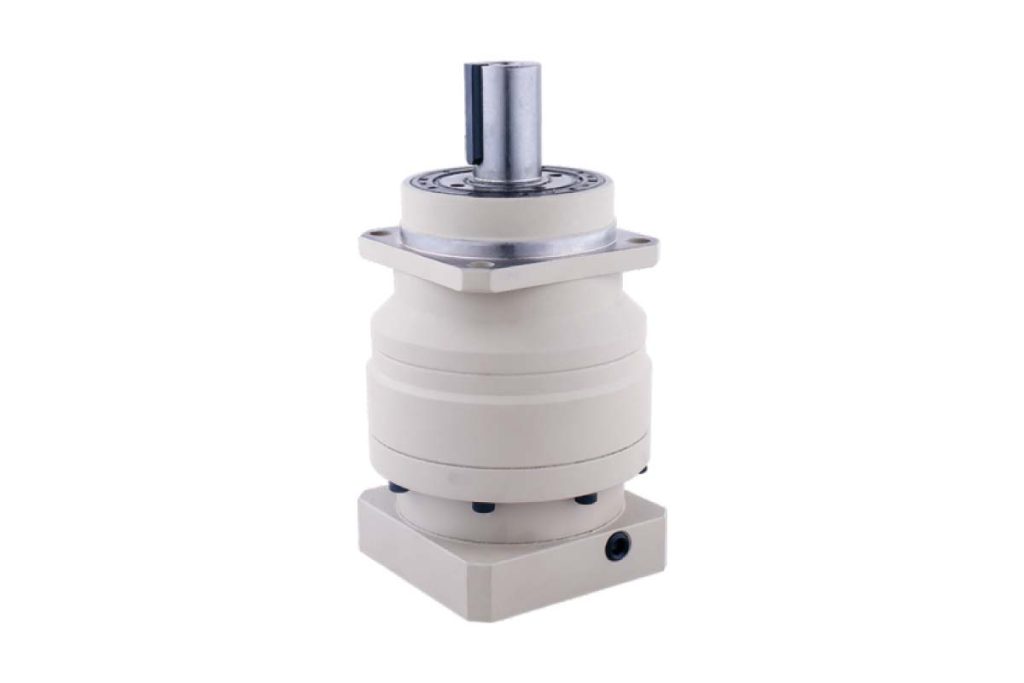

SRS Series Gearbox

Key features

  • Low noise
  • Helical Gear
  • Backlash ≤1-≤5 arcmin
  • 97% efficiency
  • Operating Temp -10℃~+90℃
  • Multiple stage configurations
  • IP65
  • Customs available
Datasheet
Inquire Now!

Ordering Information

1Gear head frame size: 060
2Gear head series code: SRS: Square mounting flange series
3Gear ratio
Single stage: 3, 4, 5, 6, 7, 8, 9, 10
Two stage: 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100
4Amount of backlash, (P07)
Standard type P1 (Omission), high precision P0
The load of output shaft is ±3% of allowable output torque
5Input shaft typeInput shaft type
S: Overall Locking (Omission) (Regardless whether the motor with keyway can use it)
S1: Locking with locking ring(Omission) (Regardless whether the motor with keyway can use it)
S2: Locking with keyway (Input shaft with key)
A: Other type (Please contact with us)
6Applicable servo motor power (W)
7Model of servo motor & input flange
Specifications Stage Number Reduction Ratio 060SRS 075SRS 100SRS 140SRS
Rated output torque T2N Nm 1 3 55 130 208 342
4 50 140 190 542
5 60 160 330 650
6 55 150 310 600
7 50 140 300 550
8 45 120 260 500
9 40 100 230 450
10 40 100 230 450
2 15 – 130 208 342
20 – 140 290 542
25 – 160 330 650
30 – 150 310 600
35 – 140 300 550
40 – 120 260 500
45 – 100 230 450
50 – 160 330 650
60 – 150 310 600
70 – 140 300 550
80 – 120 260 500
90 – 100 230 450
100 – 100 230 450
Sudden stop torque Nm 1,2 3~100 3 times rated output torque
Rated input speed rpm 1,2 3~100 3000 3000 3000 2000
Maximum input speed rpm 1,2 3~100 6000 6000 6000 4000
Precision back lash arcmin 1 3~10 ≤1 ≤1 ≤1 ≤1
2 15~100 – ≤3 ≤3 ≤3
Standard back lash arcmin 1 3~10 ≤3 ≤3 ≤3 ≤3
2 15~100 – ≤5 ≤5 ≤5
Torsional rigidity Nm/arcmin 1,2 3~100 7 14 25 50
Allowable radial force N 1,2 3~100 3000 4300 7000 10000
Allowable axial force N 1,2 3~100 2700 3900 6300 9000
Life hr 1,2 3~100 20000
Efficiency % 1 3~10 ≥97
2 15~100 ≥94
Weight Kg 1 3~10 1.3 3.7 7.8 14.5
2 15~100 – 4.1 9 17.5
Working temperature ℃ – – -10℃~+90℃
Lubrication way – – Synthetic grease
Protection grade – – IP65
Installation direction 1,2 3~100 Any direction
Noise value dB (A) 1,2 3~100 ≤58 ≤60 ≤63 ≤67
Specifications Stage Number Reduction Ratio 060SRS 075SRS 100SRS 140SRS
The moment of inertia Kg·cm2 1 3 0.22 1.2 5.2 20
4 0.17 0.95 4 15
5 0.16 0.86 3.6 13
6 0.15 0.82 3.3 13
7 0.14 0.79 3.1 12
8 0.14 0.77 3 12
9 0.14 0.76 3 11
10 0.14 0.75 3 11
2 15 – 0.72 2.8 11
20 – 0.72 2.8 11
25 – 0.71 2.8 11
30 – 0.7 2.7 10
35 – 0.71 2.7 11
40 – 0.69 2.7 10
45 – 0.71 2.7 11
50 – 0.69 2.7 10
60 – 0.69 2.7 10
70 – 0.69 2.7 10
80 – 0.69 2.7 10
90 – 0.69 2.7 10
100 – 0.69 2.7 10
