15W Induction AC Motor/Gear Motor
The 15W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
15W Induction AC Motor/Gear Motor

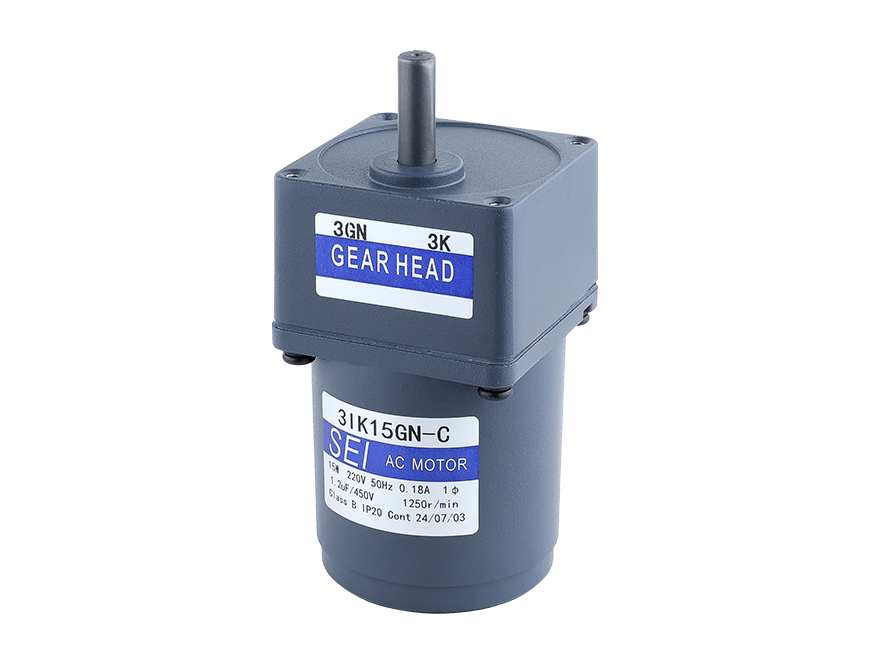

15W Induction AC Gear Motor
18 3IK 70 15 100-380 Parallel shaft 3-200
Motor Specification
| Model•Type | Output power | Voltage | Frequency | Current | Starting Torque | Rated | Ratad | Capacitor | |
|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type | W | V | Hz | A | mN.m | Torque | Speed | μF | |
| Pinion Shaft | Round Shaft | mN.m | r/min | ||||||
| 3IK15GN-A | 3IK15A-A | 15 | 1ph 100 | 50 | 0.35 | 90 | 125 | 1200 | 6 |
| 60 | 0.33 | 85 | 105 | 1450 | |||||
| 3IK15GN-E | 3IK15A-E | 15 | 1ph 110 | 60 | 0.3 | 65 | 105 | 1450 | 5 |
| 1ph 120 | 0.32 | ||||||||
| 3IK15GN-C | 3IK15A-C | 15 | 1ph 220 | 50 | 0.18 | 90 | 125 | 1200 | 1.2 |
| 1ph 230 | 0.2 | ||||||||
| 3IK15GN-H | 3IK15A-H | 15 | 1ph 220 | 60 | 0.16 | 65 | 1G5 | 1450 | |
| 1ph 230 | 0.15 | 70 | |||||||
| 3IK15GN-S | 3IK15A-S | 15 | 3ph 220 | 50 | 0.14 | 220 | 125 | 1200 | – |
| 60 | 0.12 | 180 | 105 | 1450 | |||||
| 3IK15GN-S3 | 3IK15A-S3 | 15 | 3ph 380 | 50 | 0.08 | 220 | 125 | 1200 | – |
| 60 | 0.07 | 180 | 105 | 1450 | |||||
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 3IK15GN-A | 3GN□K | 50Hz | 0.3 | 0.36 | 0.51 | 0.61 | 0.76 | 0.91 | 1.3 | 1.5 | 1.8 | 2.3 | 2.7 | 3.3 | 4.1 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 3IK15GN-E | |||||||||||||||||||||||
| 3IK15GN-C | 3.06 | 3.67 | 5.2 | 6.22 | 7.75 | 9.28 | 13.2 | 15.3 | 18.3 | 23.4 | 27.5 | 33.7 | 41.8 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||
| 3IK15GN-H | 60Hz | 0.26 | 0.31 | 0.43 | 0.51 | 0.64 | 0.77 | 1.1 | 1.3 | 1.5 | 1.9 | 2.3 | 2.8 | 3.5 | 4.2 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 3IK15GN-S 3IK15GN-S3 | 2.65 | 3.16 | 4.38 | 5.2 | 6.53 | 7.85 | 11.2 | 13.2 | 15.3 | 19.3 | 23.4 | 28.5 | 35.7 | 42.8 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||

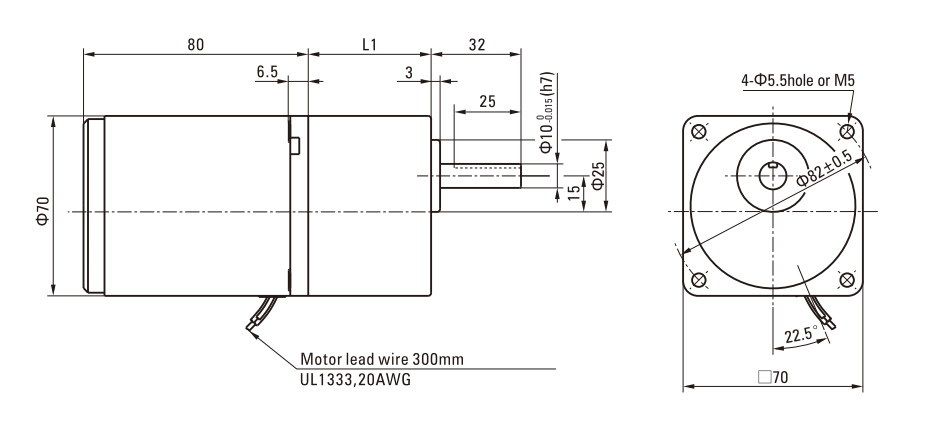

Dimensions (Unit: mm)
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 3IK15GN-A 3IK15GN-E 3IK15GN-C 3IK15GN-H 3IK15GN-S 3IK15GN-S3 | 3GN□K | 3~18 | 32 |
| 25~200 | 42 |
Wiring Diagram
- The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.
- Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.
Note:
Change the direction of single-phase motor rotation only after bring the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating，motor may ignore reversing command or change its direction of rotation after some delay.
