Products

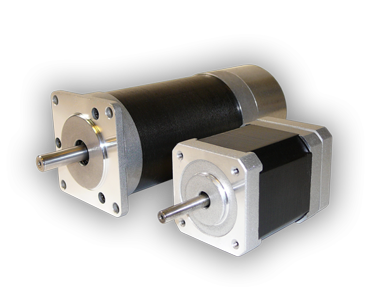

Brushless DC Motors
Source Engineering’s cost-effective BLDC motors are built for high-volume OEM applications. Round (standard torque) and square (high torque) frame styles cover sizes from 28mm through NEMA 34 with output power from 1W through 660W.
Motors can be specially wound to match your voltage, current, and speed requirements. Cabling, connectors, special shaft configurations, and encoder options are available on request. BLDC motors can also be paired with SEI planetary gearboxes and gearmotors.
Models & Series

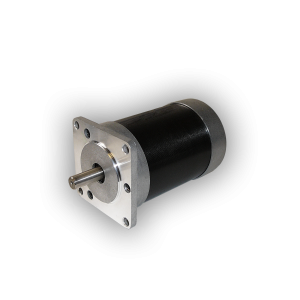

BLF – SQUARE BRUSHLESS DC MOTOR

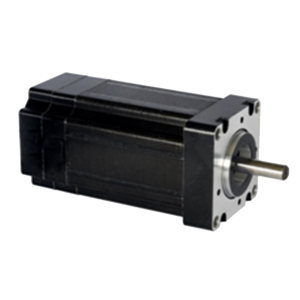

BLFX – SQUARE BRUSHLESS DC MOTOR

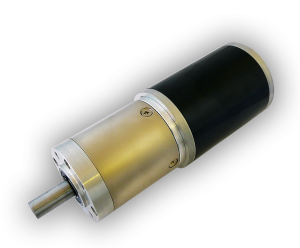

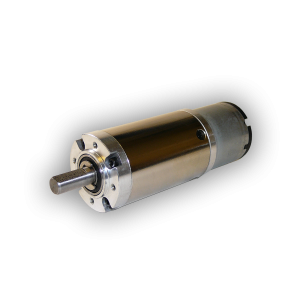

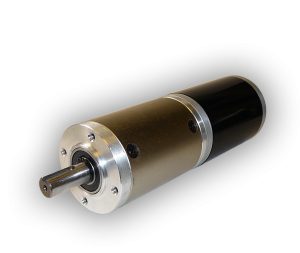

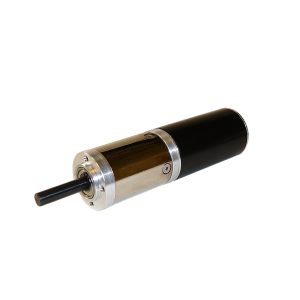

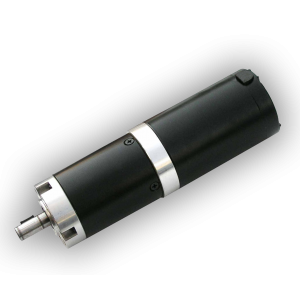

Planetary Brushless Gearmotor
Key Features
- Round and square (high-torque) frame styles
- Sizes from 28mm through NEMA 34
- Output power from 1W through 660W
- Custom windings for voltage, current, and speed matching
- Optional cabling, connectors, shafts, and encoders
- Compatible with SEI planetary gearboxes and BLDC gearmotors
Specifications
| Frame styles | Round (standard torque) and square (high torque) |
|---|---|
| Size range | 28mm through NEMA 34 |
| Output power | 1W–660W |
| Customization | Windings, cables, connectors, shafts, encoders |
| Pairing | Planetary gearboxes and brushless DC gearmotors |
Configuration Options
- Standard and high-torque square-frame variants
- Custom windings at no extra tooling cost for OEM volumes
- Encoder and hall-sensor configurations on request
- Integration with SEI reduction gearheads
Applications
- Fans, pumps, and blowers
- Robotics and mobile platforms
- Industrial instrumentation
- Battery-powered and portable equipment
- Automation subsystems requiring efficient DC motion

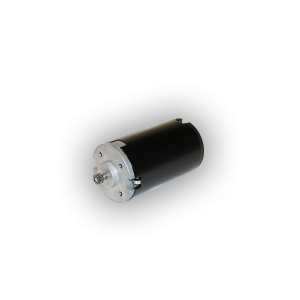

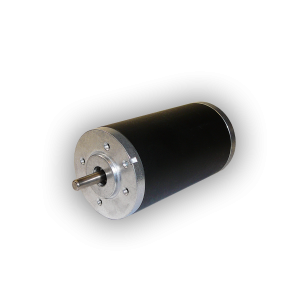

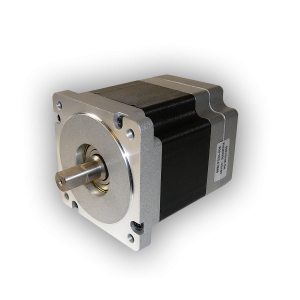

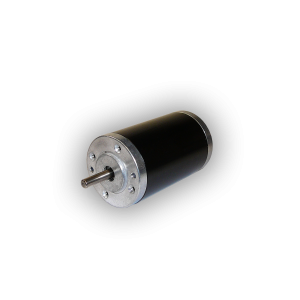

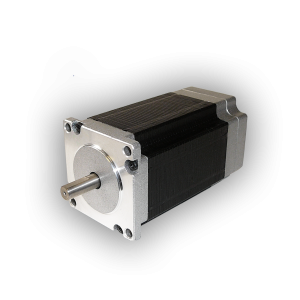

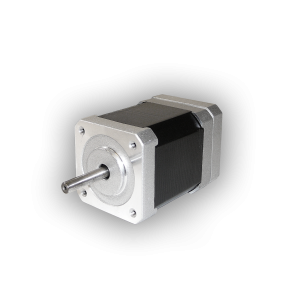

Gallery
FAQ
- What is the difference between round and square BLDC motors?
- Round-frame motors provide standard torque density in compact diameters. Square (NEMA-format) frames deliver higher torque in a mount-friendly envelope for automation and robotics applications.
- Can SEI match a BLDC motor to my drive voltage?
- Yes. BLDC motors can be wound for your target voltage, current, and speed. Contact us with your drive specifications and duty cycle.
Related Products

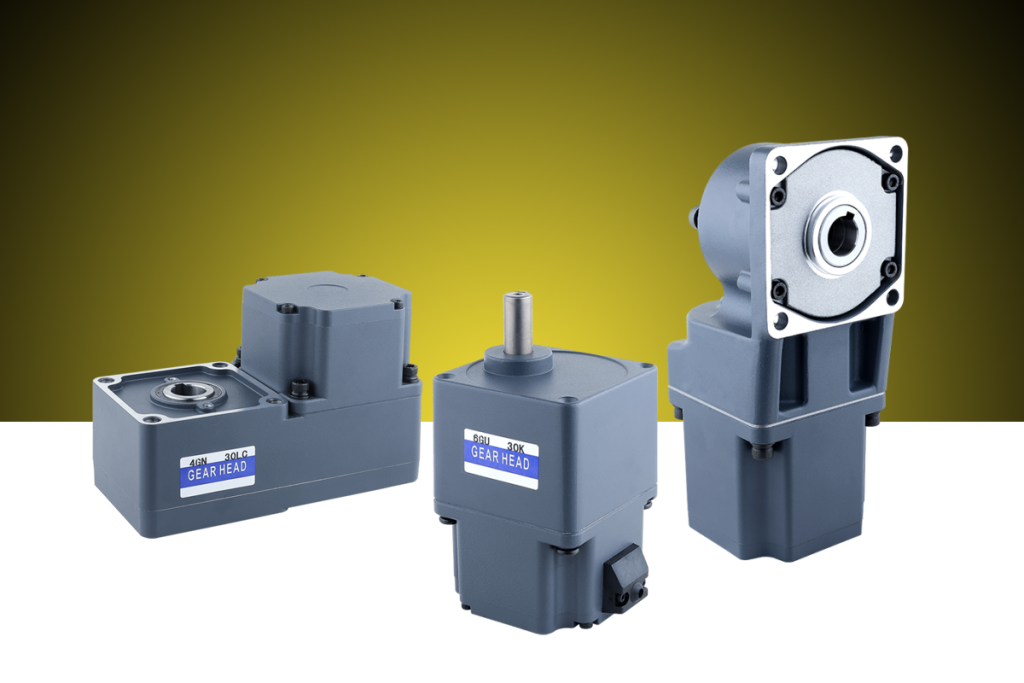

Brushless DC Gearmotors
High-efficiency BLDC gearmotors with spur, L-type, and right-angle gearboxes.
Learn more

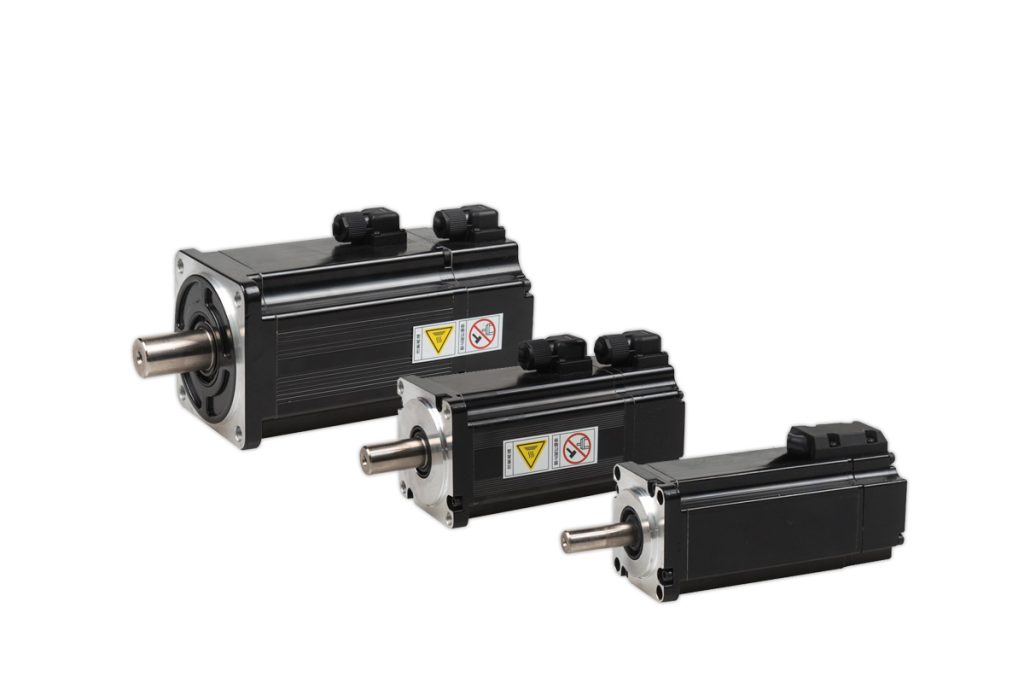

BLDC Servo Motors
