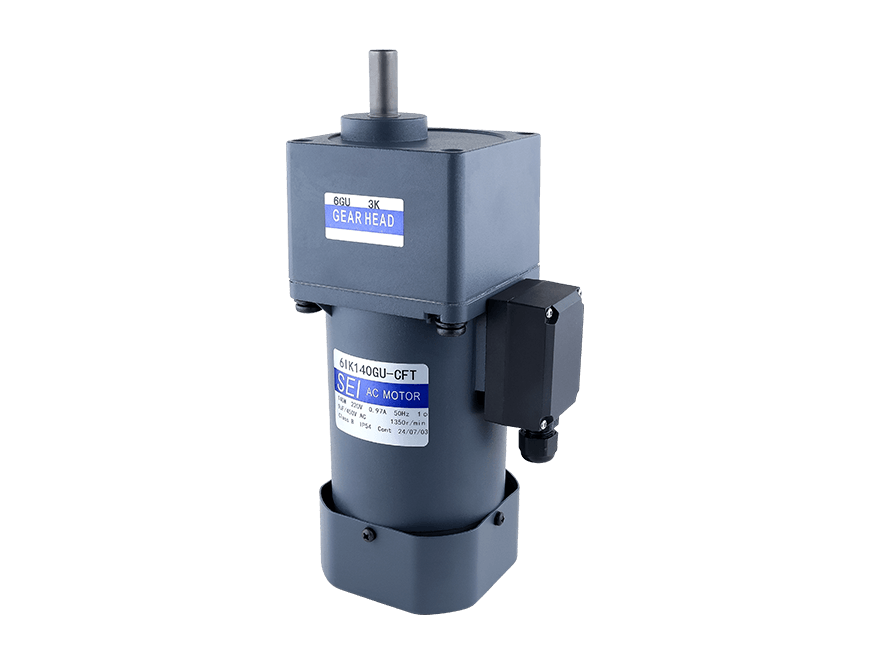

200W Induction AC Motor/Gear Motor
The 200W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
200W Induction AC Motor/Gear Motor
200W Induction AC Gear Motor
11 6IK 104 200 100-380 Parallel shaft 3-200
Motor Specification
| Model •Type Upper:Pinion Shaft Below:Round Shaft | Output power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF | |
|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type Dimensions ① | Terminal Box Type Dimensions ② | ||||||||
| 6IK200GU-AF (6IK200A-AF) | 6IK200GU-AFT (6IK200A-AFT) | 200 | 1ph 100 | 50 | 3.2 | 900 | 1520 | 1250 | 45.0 |
| 60 | 3.5 | 1230 | 1550 | ||||||
| 6IK200GU-EF (6IK200A-EF ) | 6IK200GU-EFT (6IK200A-EFT) | 200 | 1ph 110 | 60 | 2.75 | 850 | 1230 | 1550 | 35.0 |
| 1ph 120 | 2.65 | ||||||||
| 6IK200GU-CF (6IK200A-CF) | 6IKZ00GU-CFT (6IK200A-CFT) | 200 | 1ph 220 | 50 | 1.40 | 1000 | 1520 | 1250 | 10.0 |
| 1ph 230 | |||||||||
| 6IK200GU-HF (6IK200A-HF) | 6IK200GU-HFT (6IK200A-HFT) | 200 | 1ph 220 | 60 | 1.40 | 900 | 1230 | 1550 | |
| 1ph 230 | |||||||||
| 6IK200GU-SF(6IK200A-SF) | 6IK200GU-SFT(6IK200A-SFT) | 200 | 3ph 220 | 50 | 1.20 | 3400 | 1520 | 1250 | – |
| 60 | 1.0 | 2700 | 1230 | 1550 | |||||
| 6IK200GU-S3F (6IK200A-S3F) | 6IK200GU-S3FT (6IK200A-S3FT) | 200 | 3ph 380 | 50 | 0.69 | 3400 | 1520 | 1250 | – |
| 60 | 0.58 | 2700 | 1230 | 1550 | |||||
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 42 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||
| 6IK200GU-AF□ 6IK200GU-EF□ 6IK200GU-CF□ 6IK200GU-HF□ 6IK200GU-SF□ 6IK200GU-S3F□ | 6GU□RC 6GU□RT | Allowable Torque | 50Hz | 3.71 | 4.46 | 6.19 | 7.43 | 9.28 | 11.1 | 13.9 | 16.7 | 20.1 | 25.2 | 30.3 | 36.3 | 50.4 | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 |
| 37.9 | 45.5 | 63.1 | 75.8 | 94.7 | 114 | 142 | 171 | 205 | 257 | 30.9 | 370 | 515 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | ||||
| 60Hz | 2.99 | 3.59 | 4.99 | 5.99 | 7.49 | 8.98 | 11.2 | 13.5 | 16.2 | 20.3 | 24.4 | 29.3 | 40.7 | 48.8 | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 | |||
| 30.6 | 36.7 | 50.9 | 61.1 | 76.4 | 91.7 | 115 | 138 | 165 | 207 | 249 | 299 | 415 | 498 | 600 | 600 | 600 | 600 | 600 | 600 | ||||

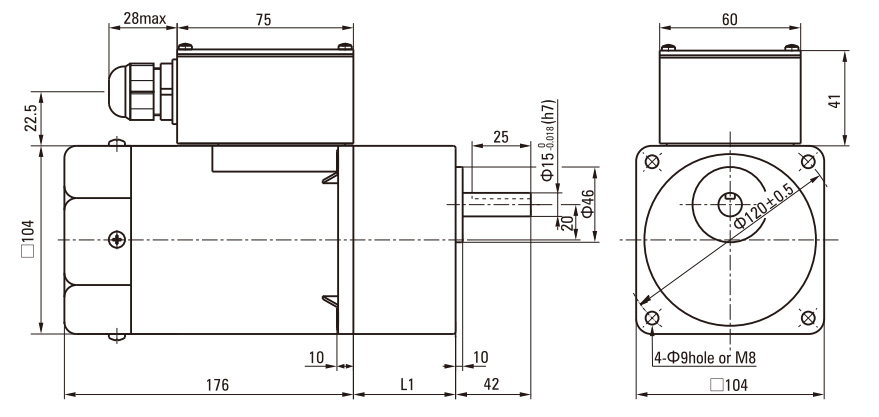

Dimensions (Unit: mm)

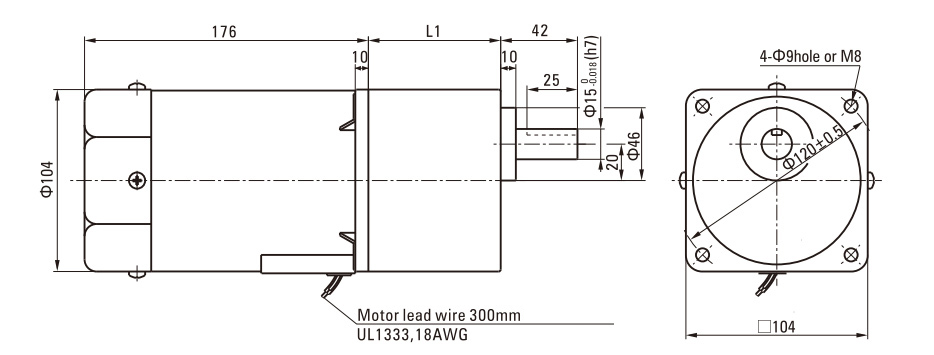

- Lead Wiring Type①
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 6IK200GU-AF | 6GU□K | 3~200 | 72 |
| 6IK200GU-EF | |||
| 6IK200GU-CF | |||
| 6IK200GU-HF | |||
| 6IK200GU-SF | |||
| 6IK200GU-S3F |
Enter the gear ratio in the box(□)within the model name
- Terminal Box Type②

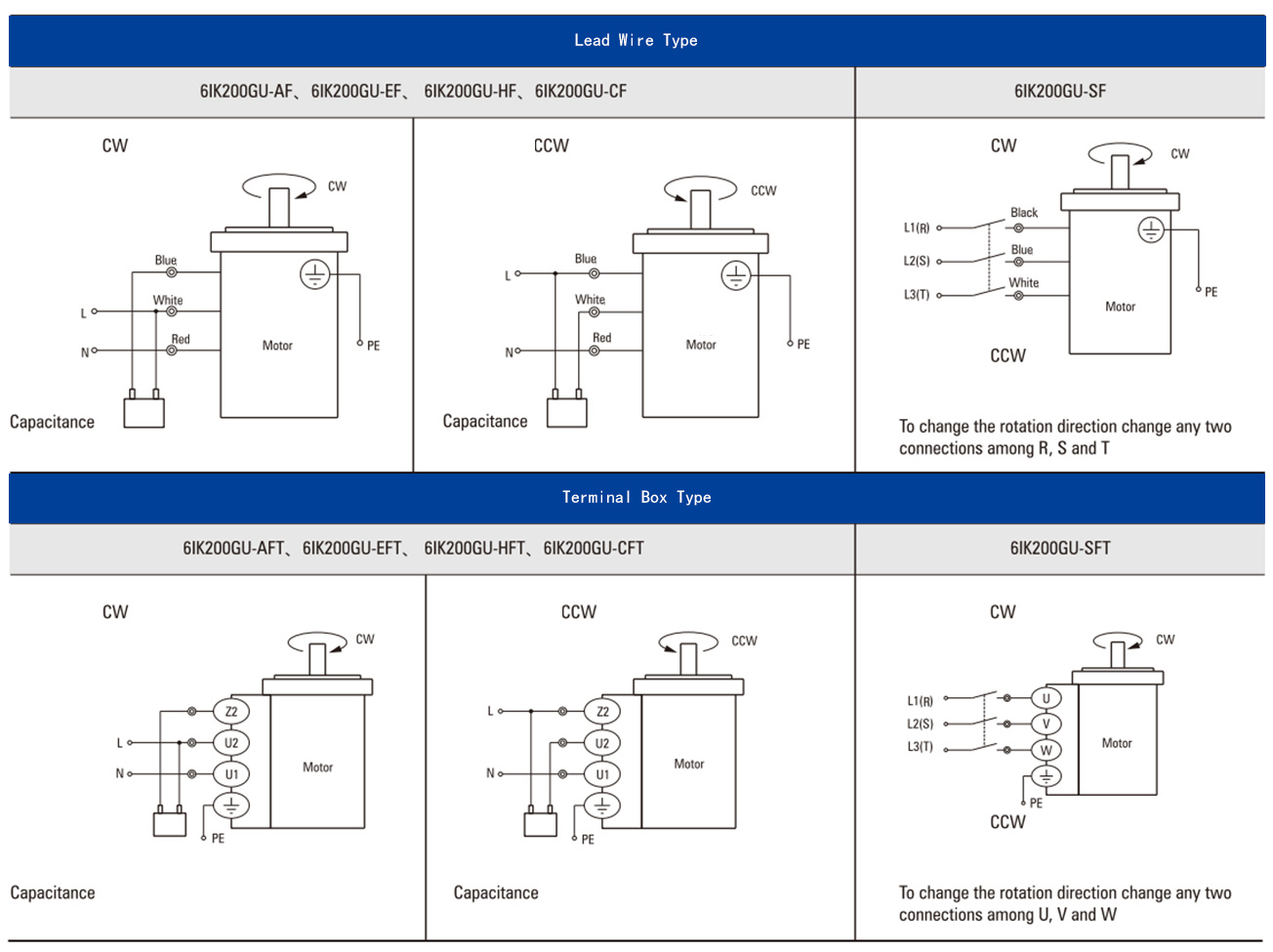

Wiring Diagram
- The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.
- Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.
Note:
Change the direction of single-phase motor rotation only after bring the motor to a stop. If an attempt is made to change the direction of rotation while the motor is rotating, motor may ignore reversing command or change its direction of rotation after some delay.
Capacitor

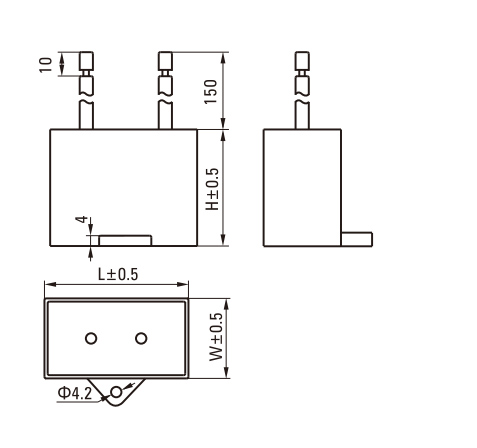

| Model | Capacitor Model | L | W | H | |
|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | ||||
| 6IK200GU-AF | 6IK200A-AF | ZD450CFAUL | 70 | 38 | 52 |
| 6IK200GU-EF | 6IK200A-EF | ZD350CFAUL | 58 | 30 | 40 |
| 6IK200GU-CF | 6IK200A-CF | ZD100BFAUL | 58 | 26 | 38 |
- Note: Conventional capacitor is a lead wire type. Inserted 187# is optional
- Enter the code that represents the terminal box type (T) in the box (□) within the model name
