25W Induction AC Motor/Gear Motor
The 25W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
Dimensions (Unit: mm)
25W Induction AC Gear Motor
17 4IK 80 25 100-380 Parallel shaft 3-200
Motor Specification
| Model •Type Upper:Pinion Shaft Below:Round Shaft | Output power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF | |
|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type Dimensions ① | Terminal Box Type Dimensions ② | ||||||||
| 4IK25GN-A (4IK25A-A) | 4IK25GN-AT (4IK25A-AT ) | 25 | 1ph 100 | 50 | 0.50 | 120 | 200 | 1250 | 8.0 |
| 60 | 0.55 | 165 | 1550 | ||||||
| 4IK25GN-E (4IK25-E) | 4IK25GN-ET (4IK25A-ET) | 25 | 1ph 110 | 60 | 0.45 | 120 | 165 | 1550 | 7.0 |
| 1ph 120 | 0.50 | ||||||||
| 4IK25GN-C (4IK25A-C ) | 4IK25GN-CT (4IK25A-CT) | 25 | 1ph 220 | 50 | 0.25 | 120 | 200 | 1250 | 1.8 |
| 1ph 230 | 0.23 | ||||||||
| 4IK25GN-H (4IK25A-H) | 4IK25GN-HT (4IK25A-HT) | 25 | 1ph 220 | 60 | 0.23 | 120 | 165 | 1550 | |
| 1ph 230 | |||||||||
| 4IK25GN-S (4IK25A-S ) | 4IK25GN-ST (4IK25A-ST) | 25 | 3ph 220 | 50 | 0.185 | 350 | 200 | 1250 | – |
| 60 | 0.170 | 250 | 165 | 1550 | |||||
| 4IK25GN-S3 (4IK25A-S3) | 4IK25GN-S3 (4IK25A-S3T) | 25 | 3ph 380 | 50 | 0.106 | 350 | 200 | 1250 | – |
| 60 | 0.098 | 250 | 165 | 1550 | |||||
- When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
- Note:”-A” it means the voltage 110v，the assembly capacitor value it is according the label.
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 42 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | ||
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | |||
| 4IK25GN-A□ 4IK25GN-E□ 4IK25GN-C□ 4IK25GN-H□ 4IK25GN-S□ 4IK25GN-S3□ | 4GN□RH 4GN□RA | Allowable Torque | 50Hz | 0.26 | 0.31 | 0.39 | 0.46 | 0.58 | 0.70 | 0.97 | 1.16 | 1.39 | 1.93 | 2.32 | 2.78 | 3.87 | 4.64 | 5.80 | 6.96 | 7.74 | 8.00 | 8.00 | 8.00 |
| 2.63 | 3.16 | 3.95 | 4.74 | 5.92 | 7.10 | 9.87 | 11.8 | 14.2 | 19.7 | 23.7 | 28.4 | 39.5 | 47.4 | 59.2 | 71.0 | 78.9 | 80.0 | 80.0 | 80.0 | ||||
| 60Hz | 0.21 | 0.31 | 0.39 | 0.46 | 0.58 | 0.70 | 0.97 | 1.16 | 1.39 | 1.93 | 2.32 | 2.78 | 3.87 | 4.64 | 5.82 | 6.96 | 7.74 | 8.00 | 8.00 | 8.00 | |||
| 2.12 | 3.16 | 3.95 | 4.74 | 5.92 | 7.10 | 9.87 | 11.8 | 14.2 | 19.7 | 23.7 | 28.4 | 39.5 | 47.4 | 59.2 | 71.0 | 78.9 | 80.0 | 80.0 | 8.00 | ||||
Dimensions (Unit: mm)

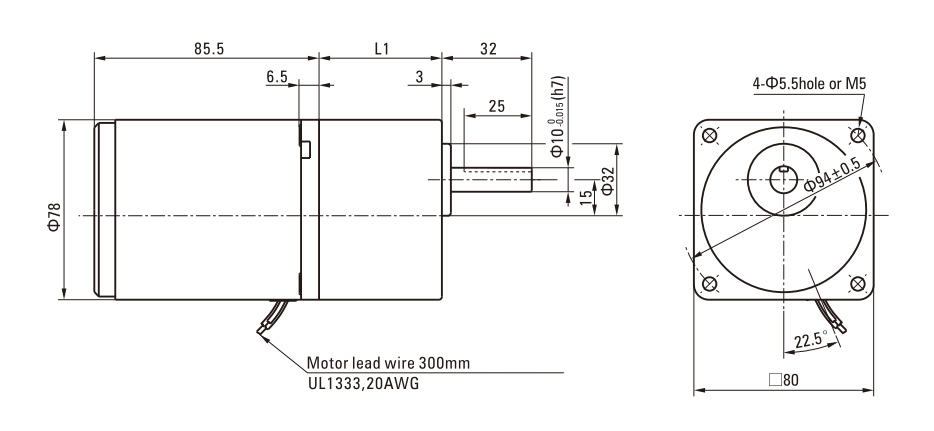

- Lead Wiring Type①
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 4IK25GN-A 4IK25GN-E 4IK25GN-C 4IK25GN-H 4IK25GN-S 4IK25GN-S3 | 4GN□K | 3~18 | 32 |
| 25~200 | 43.5 |
Enter the gear ratio in the box (□) within the model name

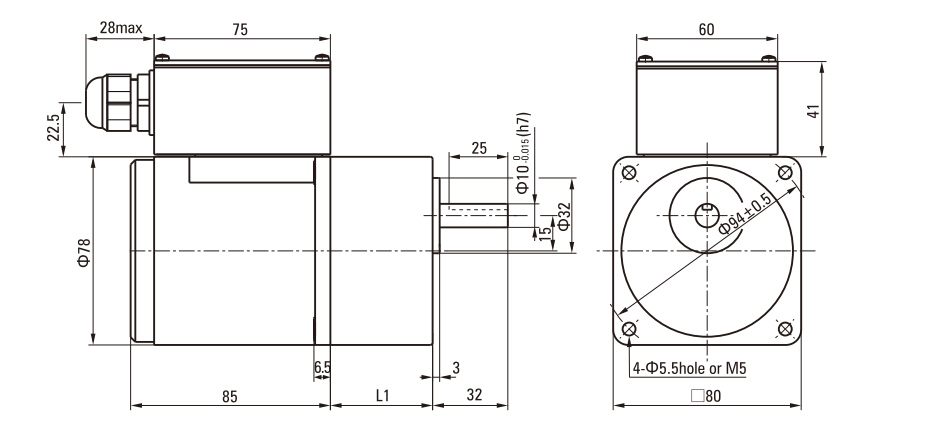

Terminal Box Type②

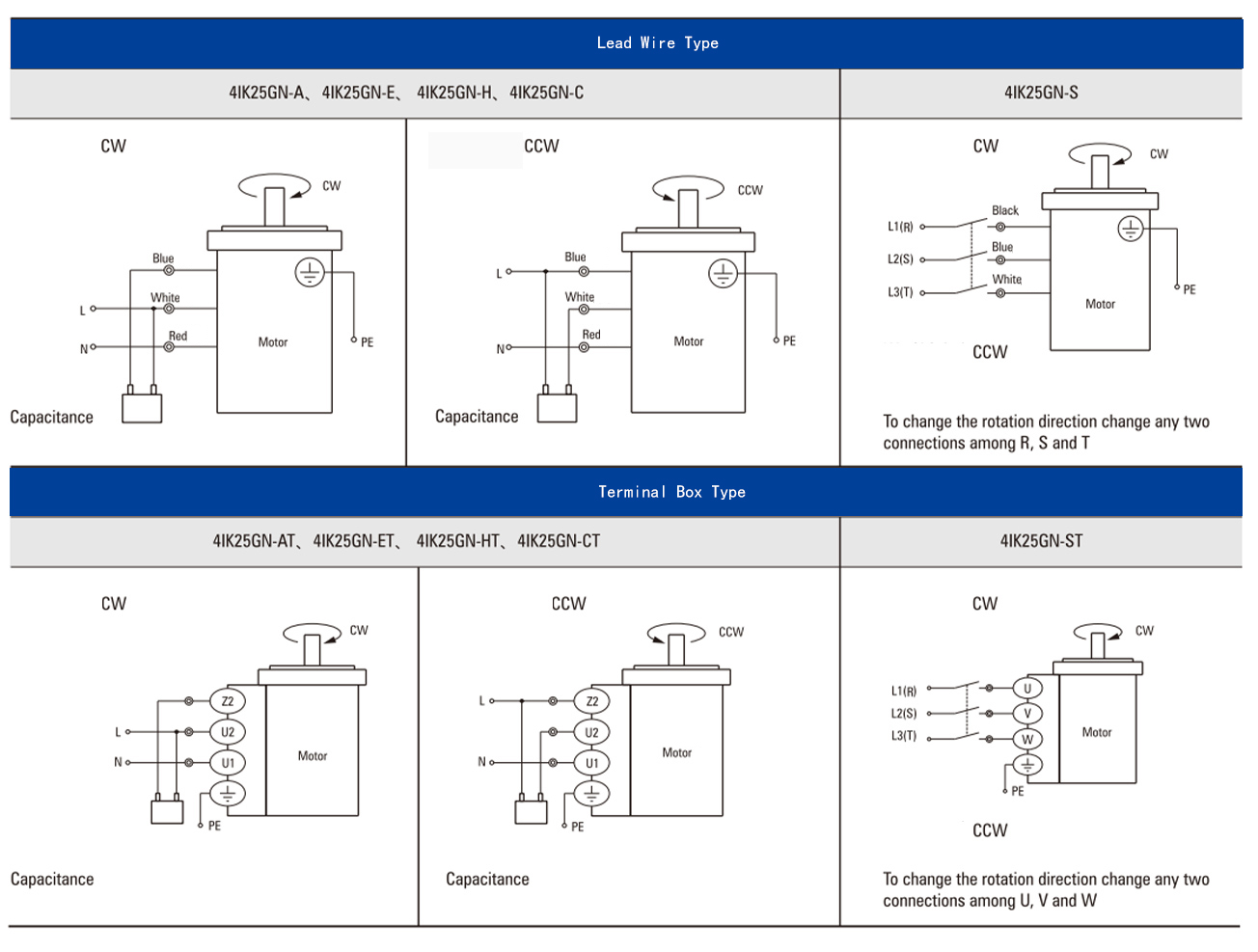

Wiring Diagram
- The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.
- Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.

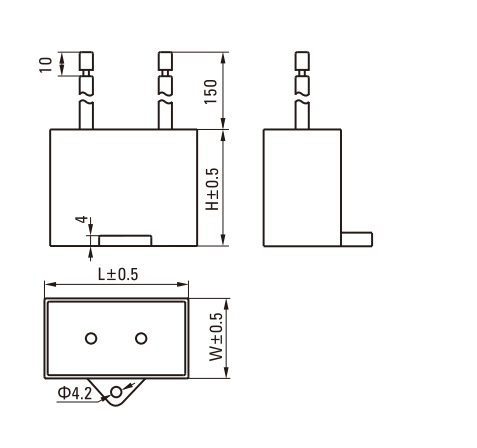

Capacitor
| Model | Capacitor Model | L | W | H | |
|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | ||||
| 4IK25GN-A□ | 4IK25A-A□ | ZD80CFAUL | 48 | 26.5 | 38 |
| 4IK25GN-E□ | 4IK25A-E□ | ZD70CFAUL | 47 | 24 | 37 |
| 4IK25GN-C□ | 4IK25A-C□ | ZD18BFAUL | 36 | 13.5 | 24 |
- Note: Conventional capacitor is a lead wire type. Inserted 187# is optional
- Enter the code that represents the terminal box type “T” in the box (□ ) within the model name
