AC Gearmotors6W REVERSIBLE
6W Reversible AC Motor/Gear Motor
The 6W Reversible AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
6W Reversible AC Motor/Gear Motor
Specs 30 Minutes Rating
Product Specifications
- Тype
| Model •Type Lead Wire Type | Output power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF | |
|---|---|---|---|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | ||||||||
| 2RK6GN-A | 2RK6A-A | 6 | 1ph 100 | 50 | 0.265 | 60 | 48 | 1200 | 4.0 |
| 60 | 0.232 | 55 | 40 | 1450 | |||||
| 2RK6GN-E | 2RK6A-E | 6 | 1ph 110 | 50 | 0.185 | 45 | 40 | 1450 | 2.5 |
| 1ph 120 | 60 | 0.200 | |||||||
| 2RK6GN-C | 2RK6A-C | 6 | 1ph 220 | 50 | 0.145 | 55 | 48 | 1200 | 1.0 |
| 1ph 230 | 60 | 0.150 | |||||||
| 2RK6GN-H | 2RK6A-H | 6 | 1ph 220 | 50 | 0.145 | 40 | 60 | 1450 | 1.0 |
| 1ph 230 | 60 | 0.150 | |||||||
●Values shown for rated torque and starting torque are measured for operation without the friction brake installed.
●When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
●Contains a built-in thermal protector(automatic return). If a motor overheats for any reason, the thermal protector is opened and the motor stops.
●When the motor temperature drops, the thermal protector closes and the motor restarts. Be sure to turn the motor off before inspecting.
●Note:”-A”it means the voltage 110v, the assembly capacitor vaule it is according the label.
●Motor
| Type | Model | |
|---|---|---|
| Pinion Shaft | Round Shaft | |
| Lead Wire Type | 2RK6GN-A | 2RK6A-A |
| 2RK6GN-E | 2RK6A-E | |
| 2RK6GN-C | 2RK6A-C | |
| 2RK6GN-H | 2RK6A-H | |
●Parallel Shaft Gearhead (Sold Separately)
| Gearhead Type | Gearhead Model | Gear Ratio |
|---|---|---|
| Long Life•Low Noise | 2GN□K | 3、3.6、5、 6、7.5、9、 12.5、15、18、25、30、 36、 50、 60、 75、90、100、 120、 150、 180、 200 |
| 2GN10XK ( Decimal Gearhead ) | ||
Gear Motor-Torque Table & Allowable Torque Unit：Upside(N.m)/Downside(kgf.cm)
- Enter the gear ratio in the box(□)within the model name
- Gearhead and mid-gearbox can be sold separately.
- The speed is calculated by dividing the motor’s synchronous speed（50Hz：1500r/min，60Hz：1800/min）by the gear ratio.The actual speed is 2%~ 20% less than the displayed value，depending on the size of the load.
- To reduce the speed beyond the gear ratio in the table，attach a decimal gearhead(gear ratio：10)between the gearhead and motor.In that case，the permissible torque is 3 N.m.
| Type Motor/Gearhead | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 2RK6GN-A 2RK6GN-E 2RK6GN-C 2RK6GN-H | 2GN口K | 50Hz | 0.12 | 0.14 | 0.19 | 0.23 | 0.29 | 0.35 | 0.49 | 0.58 | 0.70 | 0.88 | 1.1 | 1.3 | 1.6 | 1.9 | 2.4 | 2.9 | 3 | 3 | 3 | 3 | 3 |
| 1.22 | 1.43 | 1.94 | 2.35 | 2.96 | 3.57 | 5.0 | 5.92 | 7.14 | 8.98 | 11.2 | 13.3 | 16.3 | 19.4 | 24.5 | 29.6 | 30 | 30 | 30 | 30 | 30 | |||
| 60Hz | 0.10 | 0.12 | 0.16 | 0.19 | 0.24 | 0.29 | 0.41 | 0.49 | 0.58 | 0.73 | 0.88 | 1.1 | 1.3 | 1.6 | 2.0 | 2.4 | 2.6 | 3 | 3 | 3 | 3 | ||
| 1.02 | 1.22 | 1.63 | 1.94 | 2.45 | 2.96 | 4.18 | 5.0 | 5.92 | 7.45 | 8.98 | 11.2 | 13.3 | 16.3 | 20.4 | 24.5 | 2.65 | 30 | 30 | 30 | 30 | |||

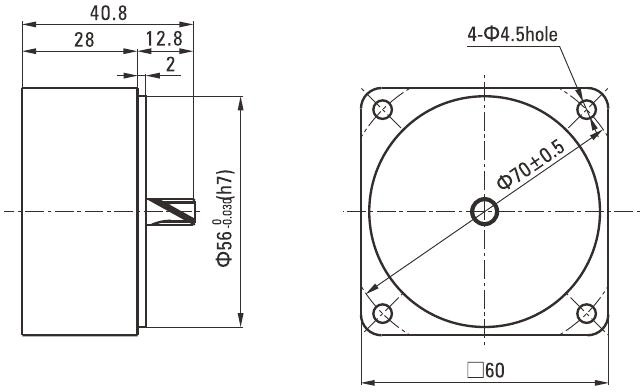

Dimensions(Unit: mm)

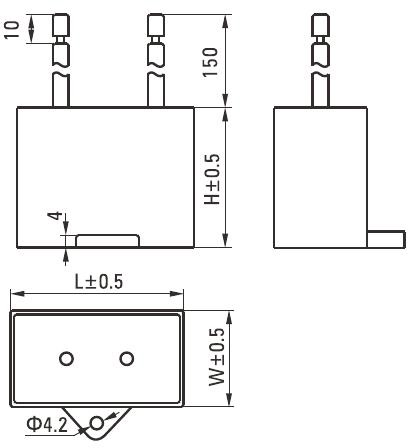

- Formal Dimension Of Capacitor
Mounting screws are included with gearhead.

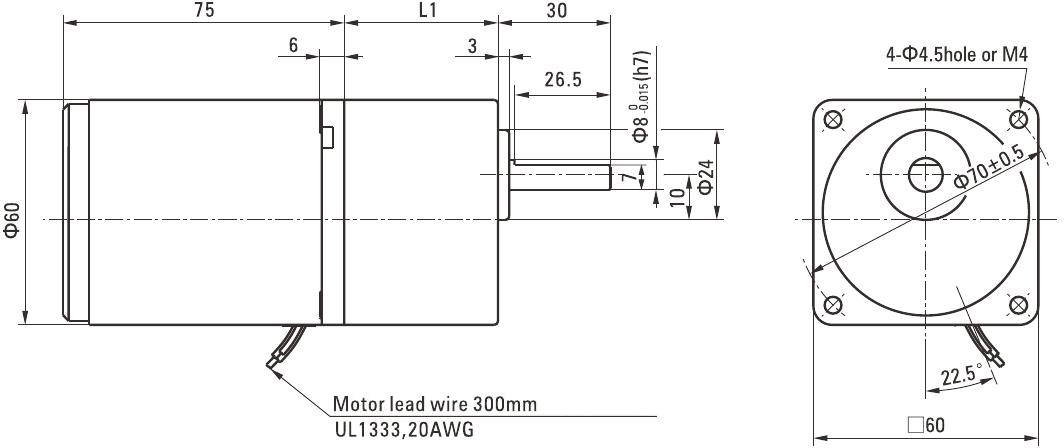

•Lead Wiring Type
Weight：Motor：0.8kg Gearhead：0.4kg
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| 2RK6GN-A2RK6GN-E2RK6GN-C2RK6GN-H | 2GN□K | 3-18 | 32 |
| 25-200 | 41.5 |

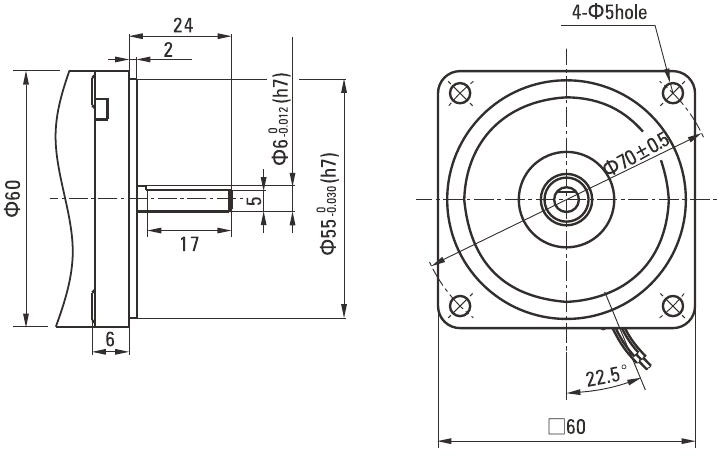

• Shaft Section Of Round Shaft Type
Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.
•Decimal Gearhead
Can be connected to GN pinion shaft type
2GN10XK
Weight : 0.24kg
| Model | Capacitor Model | L | W | H | |
|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | ||||
| 2RK6GN-A | 2RK6A-A | ZD40CFAUL | 47 | 17 | 31 |
| 2RK6GN-E | 2RK6A-E | ZD25CFAUL | 38 | 17 | 28 |
| 2RK6GN-C | 2RK6A-C | ZD10CFAUL | 36 | 11 | 22 |
•Note: Conventional capacitor is a lead wire type.
Note：
Change the direction of single-phase motor rotation only after bring the motor to a stop.
If an attempt is made to change the direction of rotation while the motor is rotating, motor may ignore reversing command or change its direction of rotation after some delay.

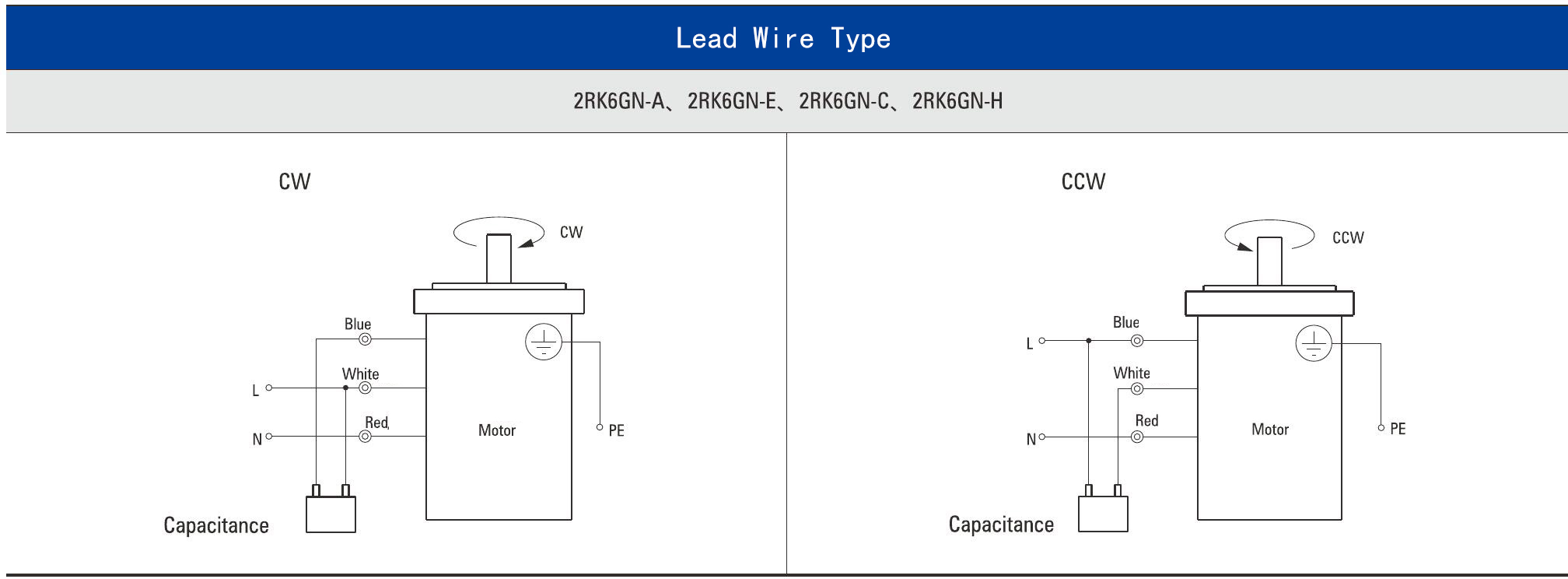

Wiring Diagram
- The direction of motor rotation is as viewed from the shaft end of motor. CW represents the clockwise direction, while CCW represents the counterclockwise direction.
- Name indicated in the list is pinion shaft type, also valid for the equivalent round shaft type.
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
