AC Gearmotors60W INDUCTION

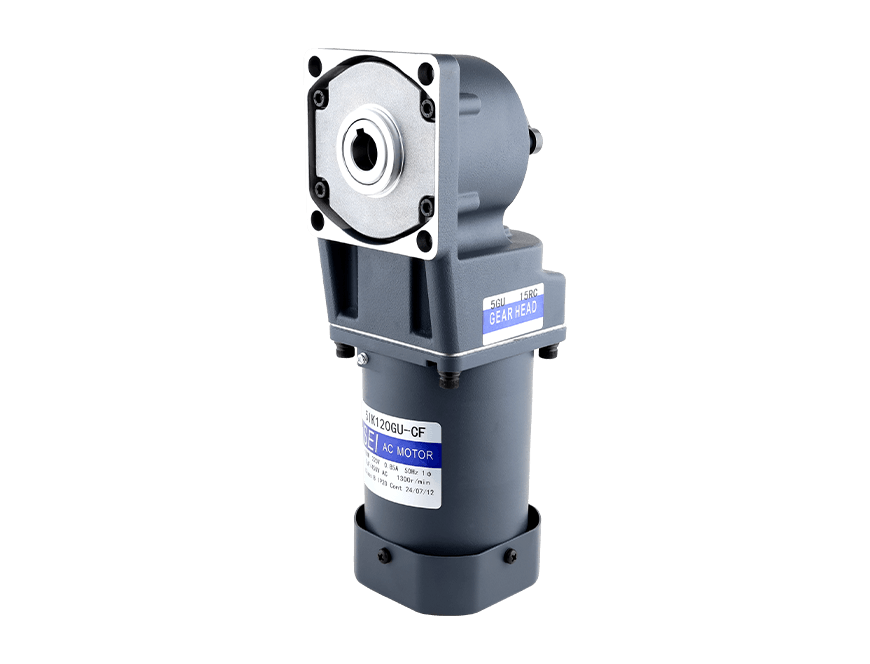

60W Induction AC Motor/Gear Motor
The 60W Induction AC Motor/Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM ac gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
60W Induction AC Motor/Gear Motor
60W Induction AC Gear Motor
5IK
90
60
100-380
Right Angle Type
3-200
Motor Specification
| Model · Type Upper: Pinion Shaft Below: Round Shaft | Output power W | Voltage V | Frequency Hz | Current A | Starting Torque mN.m | Rated Torque mN.m | Rated Speed r/min | Capacitor μF | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type Dimensions① | Terminal Box Type Dimensions② | |||||||||
| 5IK60GU-AF | 5IK60GU-AFT | 60 | 1ph 100 | 50 | 1.00 | 320 | 470 | 1250 | 20 | |
| 60 | 1.10 | 380 | 1550 | |||||||
| 5IK60GU-EF | 5IK60GU-EFT | 60 | 1ph 110 | 60 | 0.80 | 300 | 380 | 1550 | 12 | |
| 1ph 120 | 0.85 | |||||||||
| 5IK60GU-CF | 5IK60GU-CFT | 60 | 1ph 220 | 50 | 0.50 | 340 | 470 | 1250 | 4.0 | |
| 1ph 230 | 0.55 | |||||||||
| 5IK60GU-HF | 5IK60GU-HFT | 60 | 1ph 220 | 60 | 0.50 | 340 | 380 | 1550 | 4.0 | |
| 1ph 230 | 0.55 | |||||||||
| 5IK60GU-SF | 5IK60GU-SFT | 60 | 3ph 220 | 50 | 0.45 | 1000 | 470 | 1250 | – | |
| 60 | 0.40 | 800 | 380 | 1550 | ||||||
| 5IK60GU-S3F | 5IK60GU-S3FT | 60 | 3ph 380 | 50 | 0.26 | 1000 | 470 | 1250 | – | |
| 60 | 0.23 | 800 | 380 | 1550 | ||||||
- When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
- Note: “-A” it means the voltage 110V, the assembly capacitor value it is according the label.
Gear Motor Specification: ( N.m) / (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 50Hz | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 42 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | |||
| 60Hz | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | ||||
| 5IK60GU-AF□ 5IK60GU-EF□ 5IK60GU-CF□ 5IK60GU-HF□ 5IK60GU-SF□ 5IK60GU-S3F□ | 5GUD□RC 5GUD□RT | Allowance Torque | 50Hz | 2.37 | 2.84 | 3.95 | 4.73 | 5.68 | 7.89 | 9.47 | 10.2 | 14.2 | 17.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | |
| 24.2 | 29.0 | 40.3 | 48.3 | 58.0 | 80.5 | 96.6 | 104 | 145 | 174 | 200 | 200 | 200 | 200 | 200 | 200 | |||||
| 60Hz | 1.91 | 2.29 | 3.18 | 3.82 | 4.58 | 6.36 | 7.64 | 8.25 | 11.5 | 13.7 | 17.2 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | ||||
| 19.48 | 23.37 | 32.46 | 38.96 | 46.75 | 64.93 | 77.92 | 84.1 | 117 | 140 | 175 | 200 | 200 | 200 | 200 | 200 | |||||

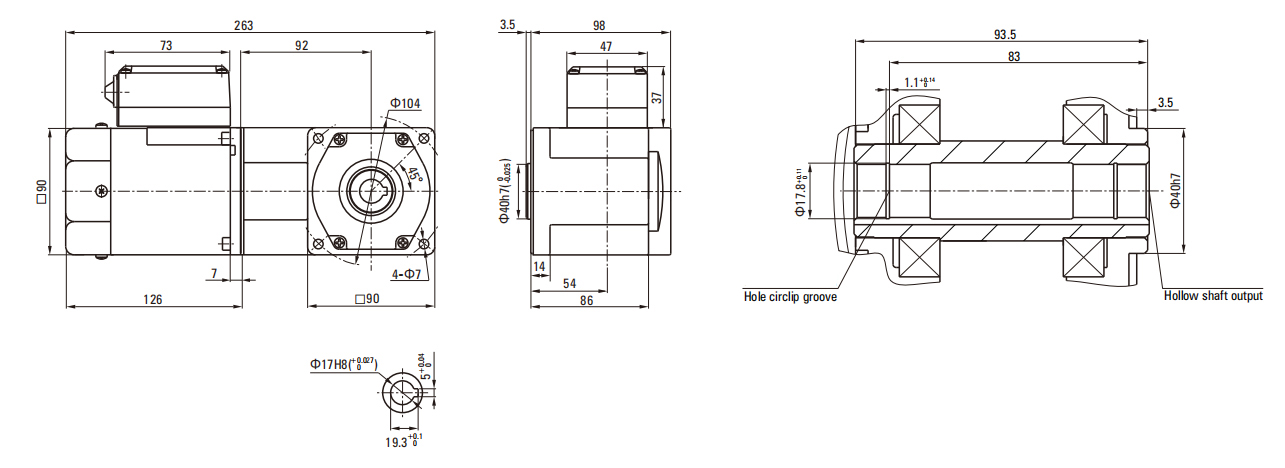

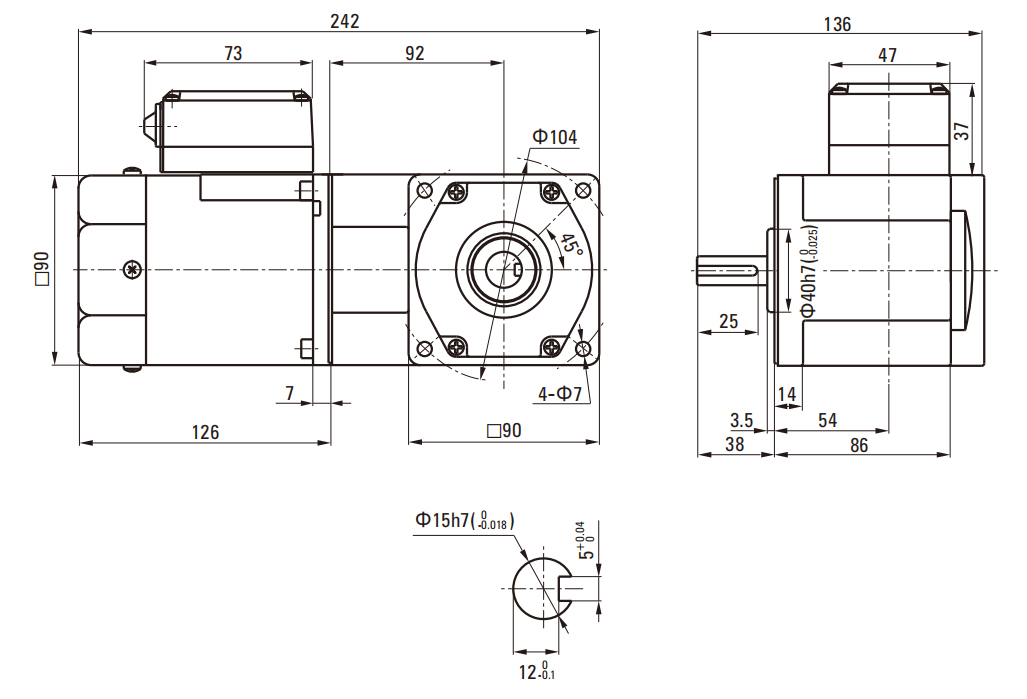

Dimensions (Unit: mm)
5IK60GU-AF□/5GU□RC 5IK60GU-CF□/5GU□RC 5IK60GU-SF□/5GU□RC 5IK60GU-EF□/5GU□RC 5IK60GU-HF□/5GU□RC 5IK60GU-S3F□/5GU□RC
5IK60GU-AF□/5GU□RT 5IK60GU-CF□/5GU□RT 5IK60GU-SF□/5GU□RT 5IK60GU-EF□/5GU□RT 5IK60GU-HF□/5GU□RT 5IK60GU-S3F□/5GU□RT
Key Features
- 60W Induction AC Motor/Gear Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Conveyors
- Pumps
- Packaging
- Industrial machinery
- Material handling
When to Choose This Model
Choose AC gearmotors for continuous-duty industrial drives on mains power with parallel or right-angle gearheads.
Frequently Asked Questions
What is the 60W Induction AC Motor/Gear Motor used for?
The 60W Induction AC Motor/Gear Motor is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.
Can you customize this model?
Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.
How do I get pricing and lead time?
Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
