BLDC Servo Motors23WSTT482030 EC625X

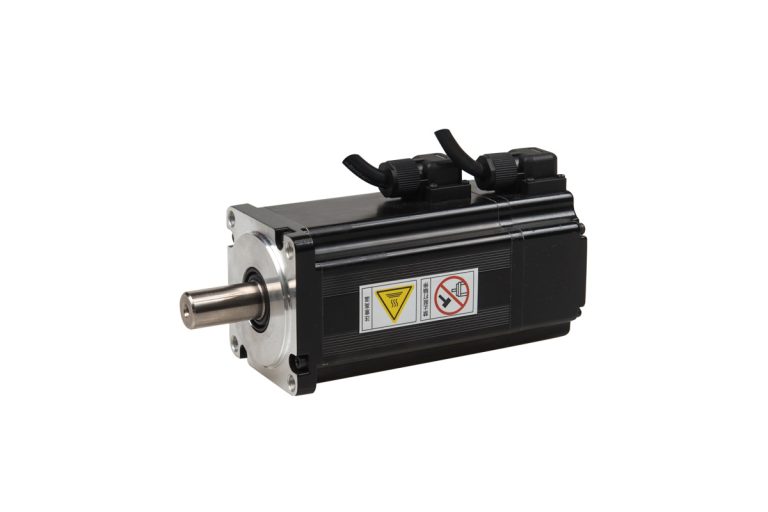

23WSTT482030-EC625X
The 23WSTT482030-EC625X is available from Source Engineering Inc. in Santa Clara, CA for OEM bldc servo motors programs. Contact us for sizing, customization, samples, and volume pricing.
23WSTT482030-EC625X
Product Details
- NEMA 23
- 3 Phase
- 10 Pole
- Length: 88mm
- Voltage: 48 VDC
- Power: 200W
- Speed : 3000
- Encoder resolution: 1000, 1024, 2500/17bit, 23bit
Technical Specifications
| Motor Specification | 23WSTT482030-EC625X |
|---|---|
| Number of phase | 3 |
| Number of Poles | 10 |
| Rated Voltage | 48VDC |
| Rated Speed | 3000rpm |
| Rated Torque | 0.64N.m |
| Rated Power | 200W |
| Rated Current | 5.6A |
| Peak Current | 11.2A |
| Peak Torque | 1.28N.m |
| Resistance | TBD |
| Inductance | TBD |
| Torque Constant | 0.11Nm/A |
| Voltage Constant | 8V/kRPM |
| Rotor Inertia | 0.45Kg. cm2 |
| Weight | 1.4Kg |
| Insulation Class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
Wiring Diagram

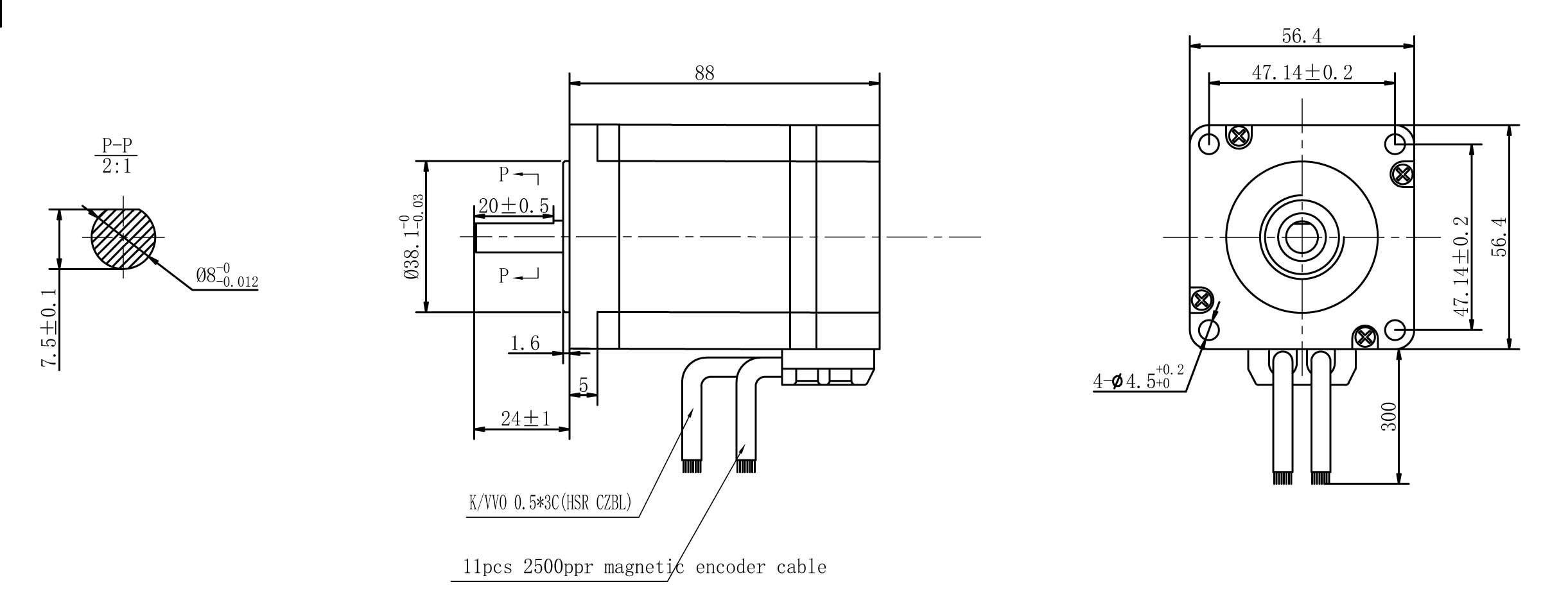

Motor Dimensions (mm)
