250W Brush DC Gear Motor 104mm
The 250W Brush DC Gear Motor 104mm is available from Source Engineering Inc. in Santa Clara, CA for OEM brush dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
250W Brush DC Gear Motor 104mm

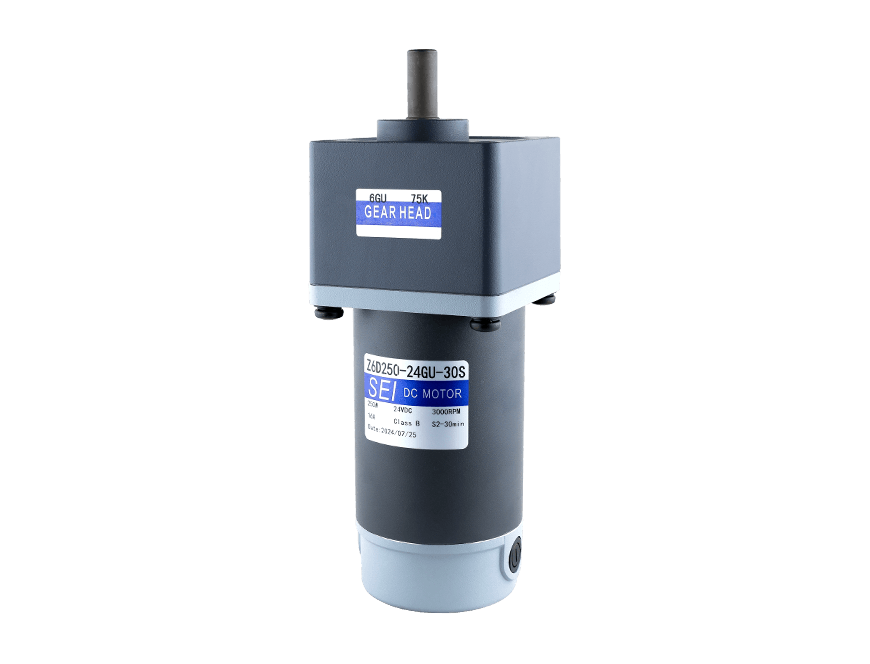

104mm Brush DC Gear Motor(GU Type)
Parallel shaft gearbox
- 250 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
- GU Type– Heavy Duty Gears, High torque capabilities
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Torque | Current | |||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |
| Z6D250-24□ | 24 | 250 | 3400 | 3.0Max. | 3000 | 796 | 16.0 | 2000 | 3.2 |
| Z6D250-90□ | 90 | 250 | 3300 | 1.0Max. | 3000 | 796 | 4.00 | 2000 | 3.2 |
| Z6D250-220□ | 220 | 250 | 3300 | 0.8Max. | 3000 | 796 | 2.00 | 2000 | 3.2 |
Gear Motor Specification: (N.m) / (kgf.cm)
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z6D250-24GN | Speed r/min | 1000 | 833 | 600 | 500 | 400 | 333 | 240 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 16 | 15 |
| 6GU□K | 1.93 | 2.32 | 3.22 | 3.87 | 4.83 | 5.80 | 7.25 | 8.70 | 10.4 | 13.1 | 15.7 | 18.8 | 26.1 | 31.3 | 39.2 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | |
| 19.0 | 22.7 | 31.6 | 37.9 | 47.4 | 56.9 | 71.1 | 85.3 | 102 | 128 | 154 | 184 | 256 | 307 | 384 | 400 | 400 | 400 | 400 | 400 | 400 |

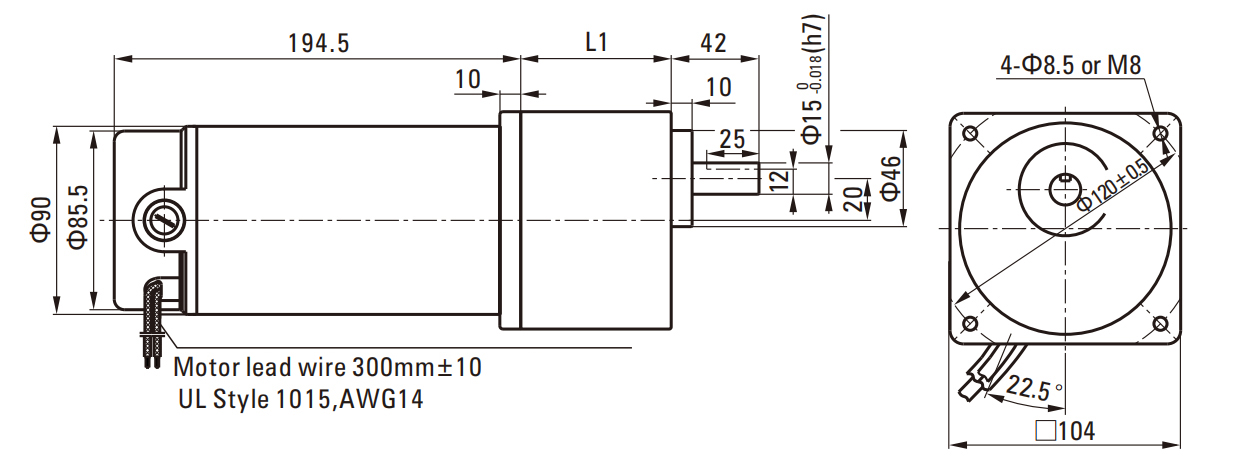

Dimensions (Unit: mm)
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| Z6D250-24GU | 6GU□K | 3～200 | 72 |
| Z6D250-90GU | |||
| Z6D250-220GU |

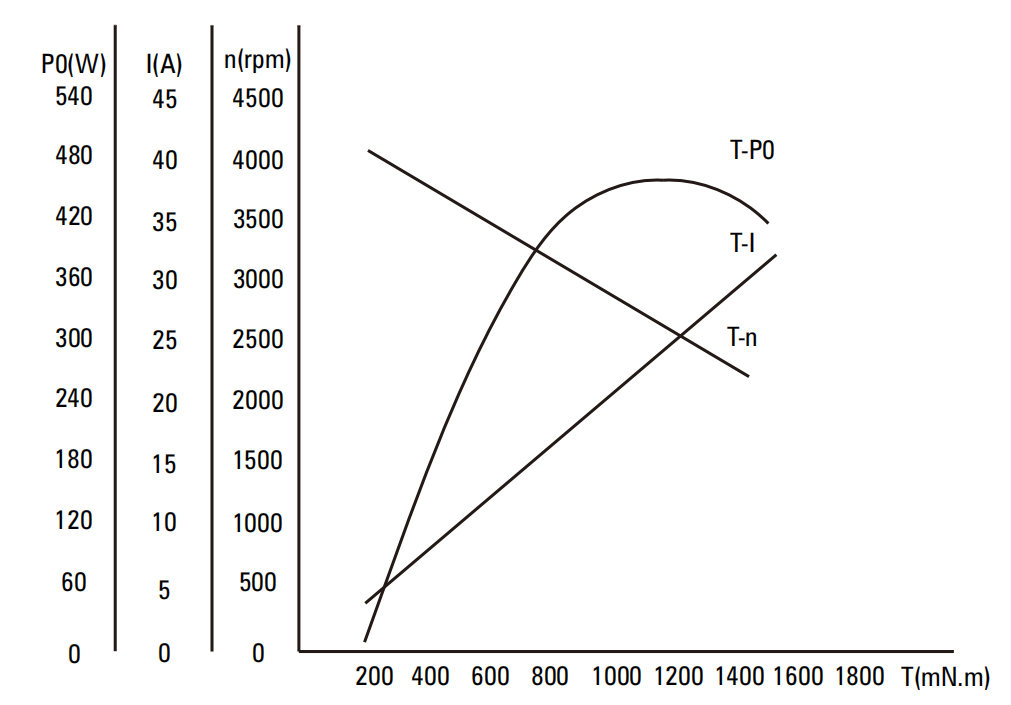

Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
Key Features
- 250W Brush DC Gear Motor 104mm: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Actuators
- Medical devices
- Office automation
- Consumer products
- Battery-powered equipment
When to Choose This Model
Choose brush DC gearmotors for cost-effective variable-speed drives with simple control electronics.
