25W Brush DC Gear Motor 80mm

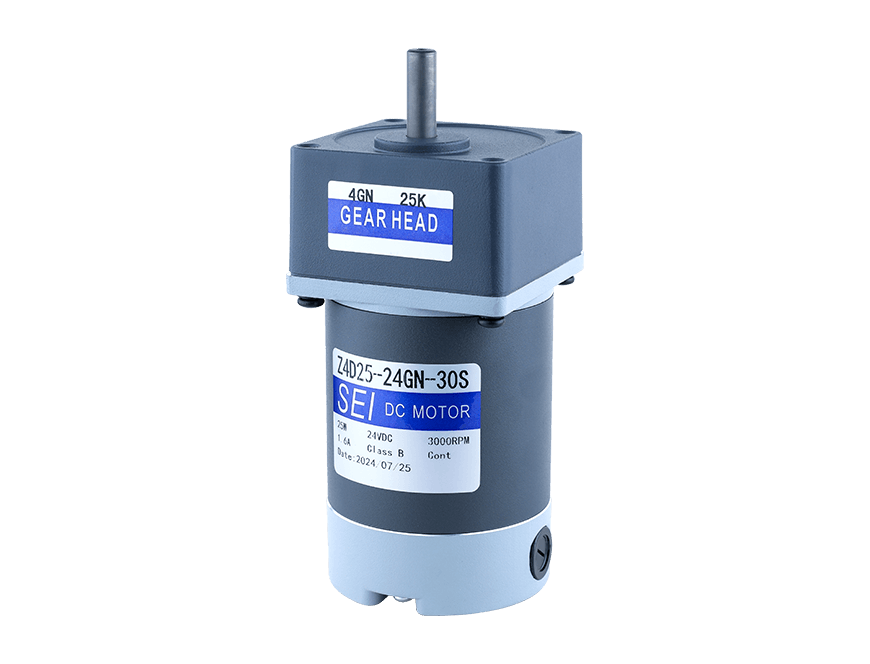

80mm Brush DC Gear Motor
Parallel shaft gearbox
- 25 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | BrushLife | Motor Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Torque | Current | |||||||||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |||||||
| Z4D25-12□ | 12 | 25 | 3200 | 1.4Max. | 3100 | 77 | 3.6 | 2000 | 1.7 | ||||||
| Z4D25-24□ | 24 | 25 | 3000 | 0.7Max. | 2850 | 84 | 1.7 | 2000 | 1.7 | ||||||
| Z4D25-90□ | 90 | 25 | 3200 | 0.2Max | 3000 | 80 | 0.5 | 2000 | 1.7 | ||||||
Gear Motor Specification: (N.m) / (kgf.cm)
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z4D25-24GN | Speedr/min | 950 | 792 | 570 | 475 | 380 | 317 | 285 | 228 | 190 | 158 | 143 | 114 | 95 | 79 | 71 | 57 | 48 | 38 | 32 | 29 | 24 | 19 | 16 | 14 |
| 4GN□K | 0.20 | 0.24 | 0.34 | 0.41 | 0.51 | 0.61 | 0.68 | 0.85 | 1.02 | 1.22 | 1.36 | 1.53 | 1.83 | 2.20 | 2.44 | 3.05 | 3.30 | 4.12 | 4.95 | 5.50 | 6.60 | 8.00 | 8.00 | 8.00 | |
| 1.99 | 2.39 | 3.32 | 3.99 | 4.99 | 5.98 | 6.65 | 8.31 | 10.0 | 12.0 | 13.3 | 15.0 | 18.0 | 21.5 | 23.9 | 29.9 | 32.3 | 40.4 | 48.5 | 53.9 | 64.6 | 80.0 | 80.0 | 80.0 |

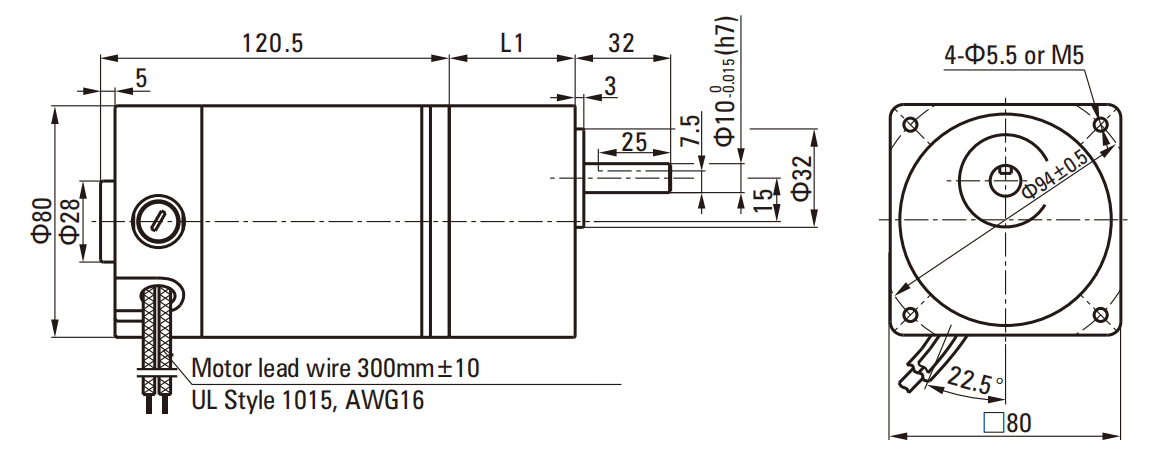

Dimensions (Unit: mm)
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| Z4D25-12GN | 4GN□K | 3～200 | 42.5 |
| Z4D25-24GN | |||
| Z4D25-90GN |

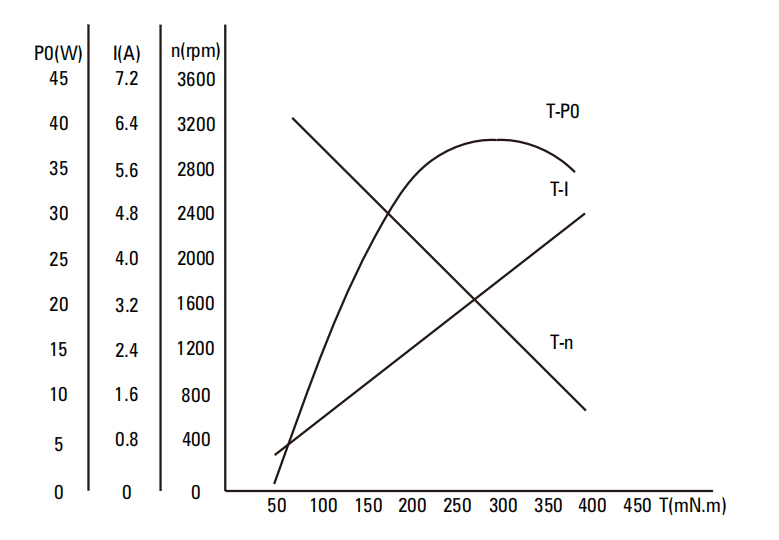

Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
Key Features
- 25W Brush DC Gear Motor 80mm: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Actuators
- Medical devices
- Office automation
- Consumer products
- Battery-powered equipment
When to Choose This Model
Choose brush DC gearmotors for cost-effective variable-speed drives with simple control electronics.
