Brush DC Gearmotors300W RIGHT ANGLE
300W Right Angle DC Brush Gear Motor
The 300W Right Angle DC Brush Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM brush dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.

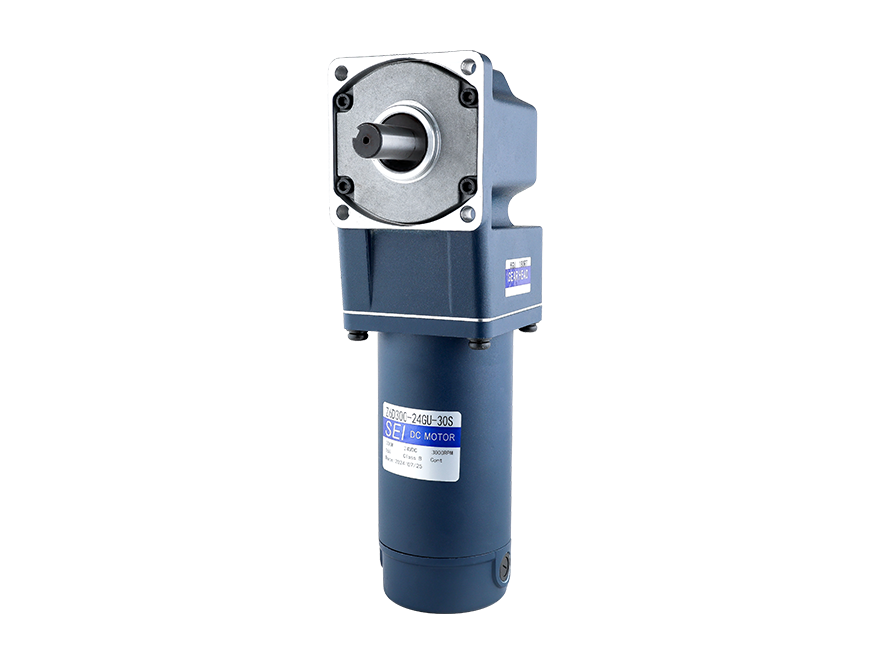

300W Right Angle DC Brush Gear Motor
104mm Right Angle DC Brush Gear Motor(GU Type)
Spiral Bevel Right Angle Gearmotor
- 300 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
- GU Type – Heavy Duty Gears with Higher Torque Capabilities
Allowance Torque Unit: Upside (N.m) / Belowside (kgf.cm)
| Type Motor/Gearhead | Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min | 400 | 333 | 240 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 16 | |
| Z6D250-24GU-30S | 6GU□RC 6GU□RT | 4.35 | 5.20 | 6.50 | 8.70 | 10.4 | 14.5 | 17.4 | 18.8 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
| 44.4 | 53.0 | 66.3 | 88.7 | 106 | 148 | 177 | 192 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |

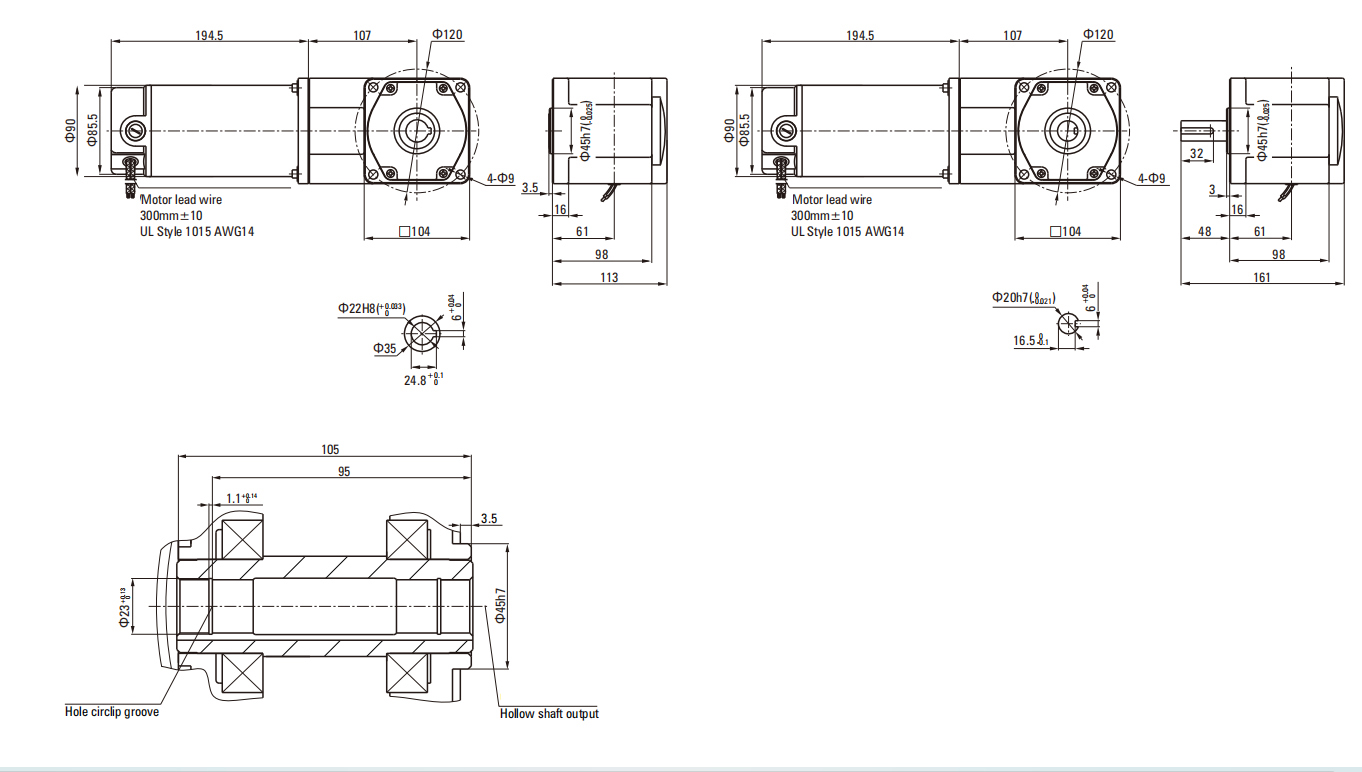

Dimensions (mm)
Key Features
- 300W Right Angle DC Brush Gear Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Actuators
- Medical devices
- Office automation
- Consumer products
- Battery-powered equipment
When to Choose This Model
Choose brush DC gearmotors for cost-effective variable-speed drives with simple control electronics.
Frequently Asked Questions
What is the 300W Right Angle DC Brush Gear Motor used for?
The 300W Right Angle DC Brush Gear Motor is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.
Can you customize this model?
Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.
How do I get pricing and lead time?
Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
