90W Brush DC Gear Motor
The 90W Brush DC Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM brush dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.

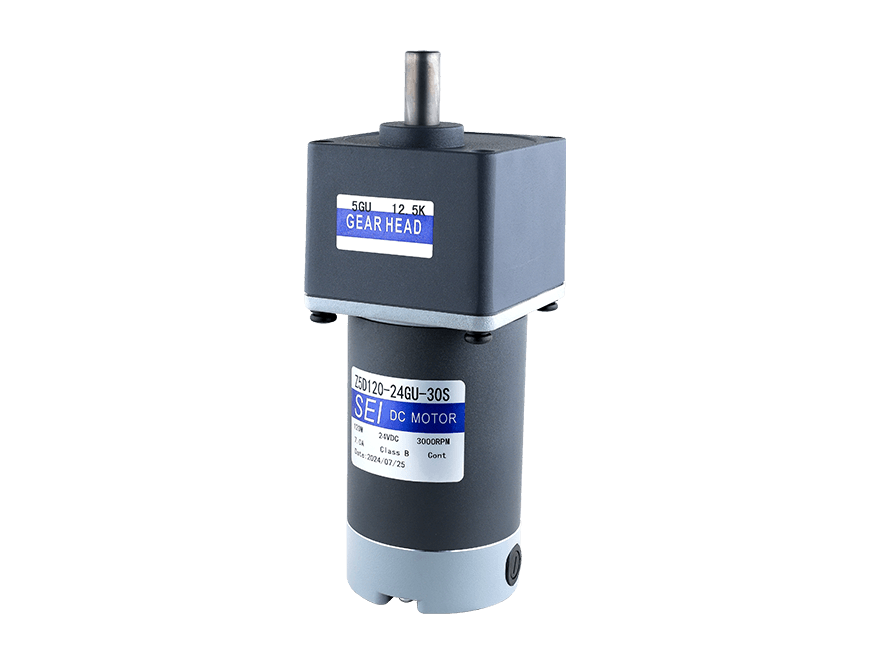

90W Brush DC Gear Motor
90mm Brush DC Gear Motor(GU Type)
Parallel shaft gearbox
- 90 Watt
- 12, 24, 90VDC
- 3-200:1 Ratio
- Custom shafts
- GU Type – Heavy Duty Gears with Higher Torque Capabilities
Motor Performance Parameters
| Model | Voltage | Power | No-load Parameters | Load Parameters | Brush Life | Motor Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Torque | Current | |||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |
| Z5D90-12□ | 12 | 90 | 3100 | 2.0Max. | 2600 | 330 | 12.0 | 2000 | 2.2 |
| Z5D90-24□ | 24 | 90 | 3300 | 1.0Max. | 2800 | 307 | 5.00 | 2000 | 2.2 |
| Z5D90-90□ | 90 | 90 | 3000 | 0.3Max. | 2900 | 307 | 1.40 | 2000 | 2.2 |
Gear Motor Specification: (N.m) / (kgf.cm)
| Type | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z5D90-24GU | Speed r/min | 933 | 778 | 560 | 467 | 373 | 311 | 280 | 224 | 187 | 156 | 140 | 112 | 93 | 78 | 70 | 56 | 47 | 37 | 31 | 28 | 23 | 19 | 16 | 14 |
| 5GU□KB | 0.75 | 0.90 | 1.24 | 1.49 | 1.86 | 2.24 | 2.24 | 2.80 | 3.36 | 4.03 | 4.03 | 5.03 | 6.04 | 7.25 | 8.06 | 10.1 | 12.4 | 15.1 | 16.3 | 18.1 | 20.0 | 20.0 | 20.0 | 20.0 | |
| 7.31 | 8.77 | 12.2 | 14.6 | 18.3 | 21.9 | 21.9 | 27.4 | 32.9 | 39.5 | 39.5 | 49.3 | 59.2 | 71.1 | 78.9 | 98.7 | 118 | 148 | 160 | 178 | 200 | 200 | 200 | 200 |

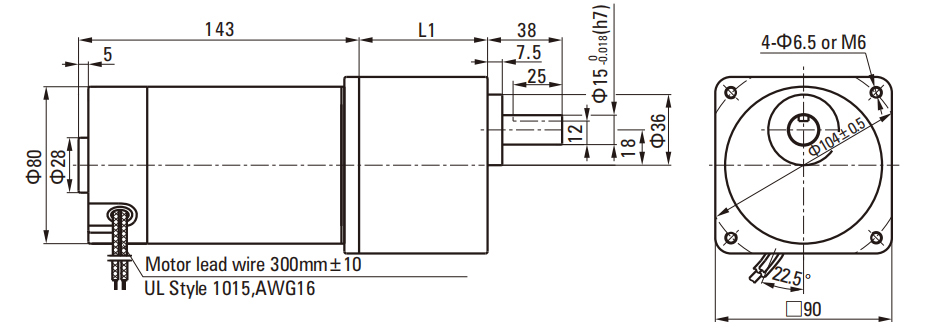

Dimensions (Unit: mm)
| Motor Model | Gearhead Model | Gear Ratio | L1 |
|---|---|---|---|
| Z5D90-12GU | 5GU□KB | 3～200 | 65.5 |
| Z5D90-24GU | |||
| Z5D90-90GU |

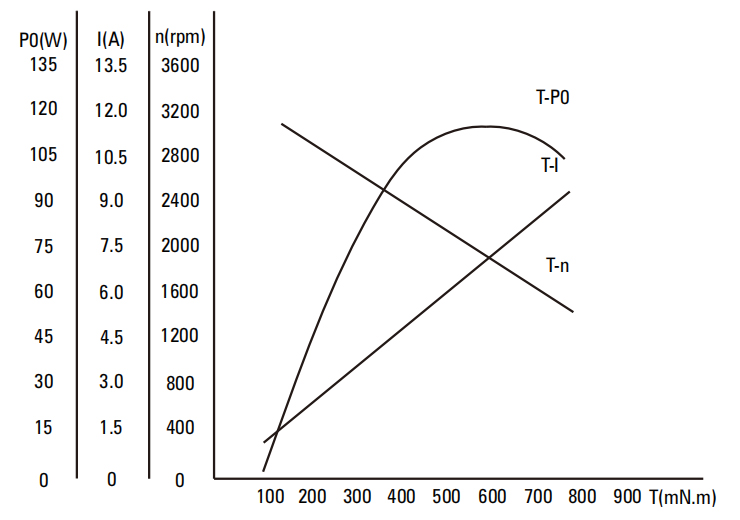

Characteristic Curve Of Motor
Wiring Diagram Of Motor
Standard length of lead wire: 300mm±10, Model: Ul1015, Type: AWG20; Lead wire length, model will be customized by client request meant under allowed circumstance of adoptable dimension.
Key Features
- 90W Brush DC Gear Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Actuators
- Medical devices
- Office automation
- Consumer products
- Battery-powered equipment
When to Choose This Model
Choose brush DC gearmotors for cost-effective variable-speed drives with simple control electronics.
