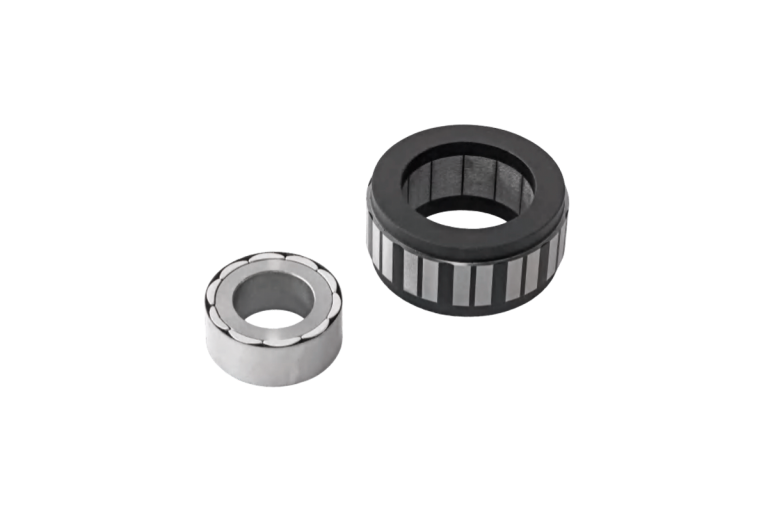

49mm Frameless BLDC Motor
- 3 Phase
- 48 VDC
- 10 Pole
- 100-260 Watt
- 3,000 RPM
Note: Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Model | 49SYTT481030 | 49SYTT481430 | 49SYTT482630 |
|---|---|---|---|
| Number of Phase | 3 | ||
| Number of Poles | 10 | ||
| Rated Voltage(VDC) | 48 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.32 | 0.45 | 0.83 |
| Rated Power(W) | 100 | 141 | 260 |
| Rated Current(A) | 2.9 | 4.1 | 7.5 |
| Peak Current(A) | 5.8 | 8.2 | 15 |
| Peak Torque(N.M) | 0.64 | 0.9 | 1.66 |
| Rotor Inertia(kg.cm2) | 0.05 | 0.06 | 0.09 |
| Torque Constant(N.m/A) | 0.1 | 0.1 | 0.1 |
| Torque Constant(V/krpm) | 8.5 | 8.4 | 8.2 |
| Line-Line Resistance(Ω) | 2.5 | 1.6 | 0.8 |
| Line-Line Inductance(mH) | 3.7 | 2.8 | 0.9 |
| Length(mm) | 45940 | 14/15 | 27/28 |
| Weight(kg) | 0.4 | 0.45 | 0.8 |
Wiring Diagram

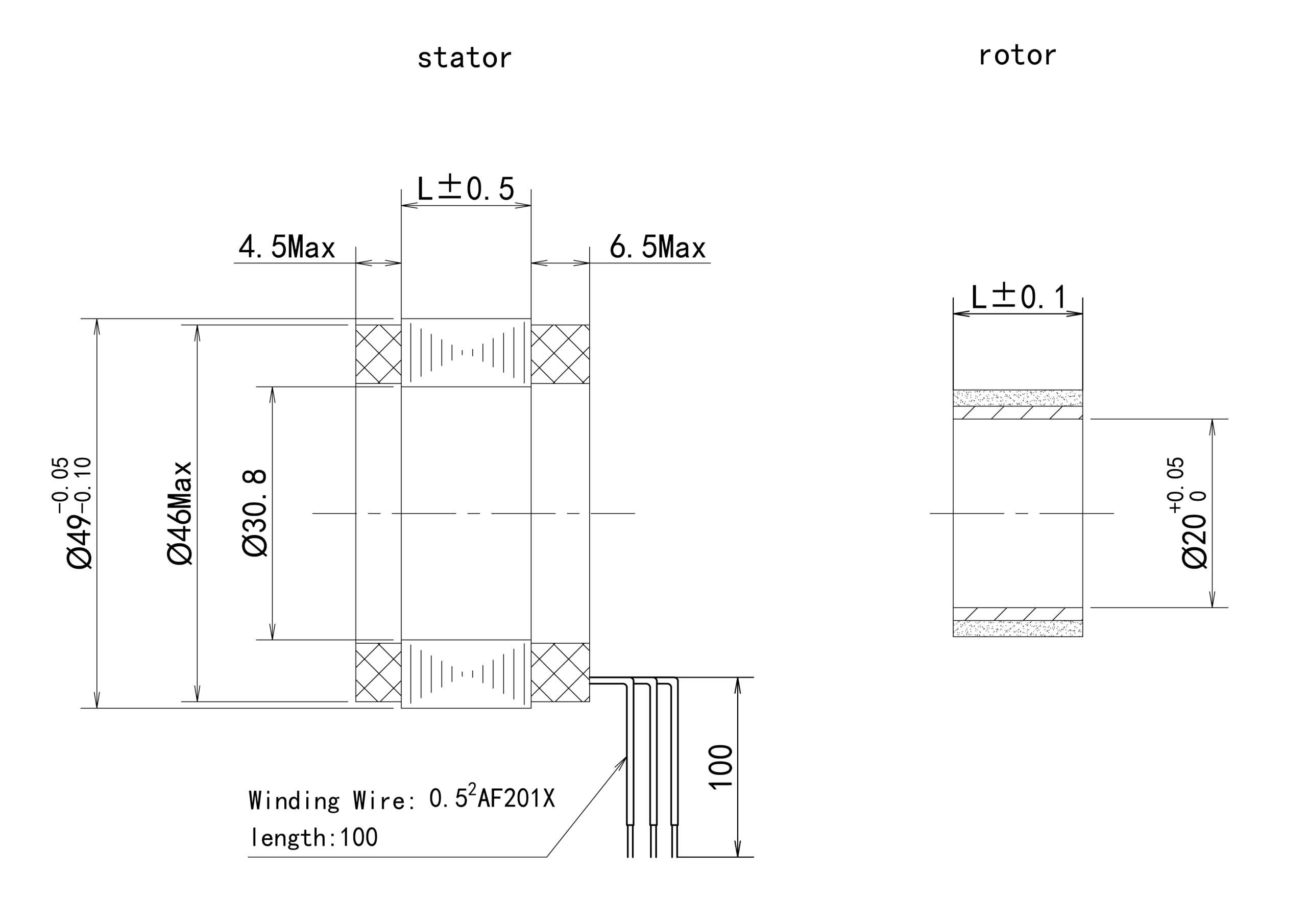

Motor Dimensions (mm)
