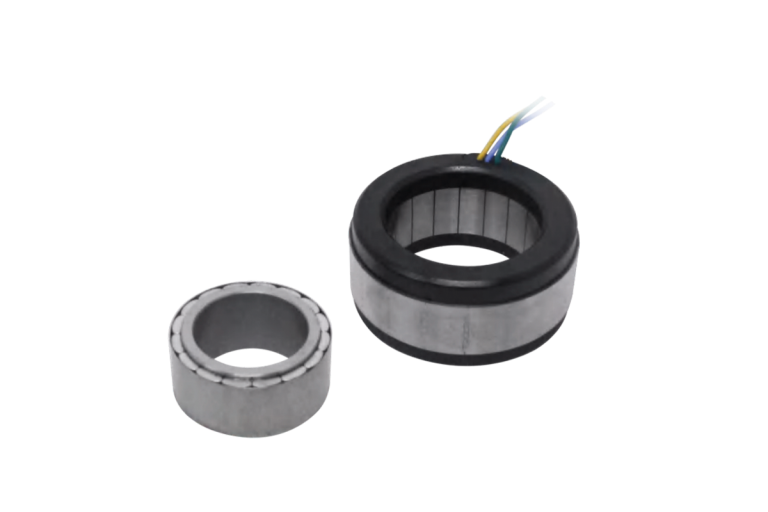

69mm Frameless BLDC Motor
- 3 Phase
- 48 VDC
- 16 Pole
- 201-440 Watt
- 3,000 RPM
Note: Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Model | 69SYEH482030 | 69SYEH484430 |
|---|---|---|
| Number of Phase | 3 | |
| Number of Poles | 16 | |
| Rated Voltage(VDC) | 48 | |
| Rated Speed(Rpm) | 3000 | |
| Rated Torque(N.m) | 0.64 | 1.4 |
| Rated Power(W) | 201 | 440 |
| Rated Current(A) | 6 | 13 |
| Peak Current(A) | 12 | 26 |
| Peak Torque(N.M) | 1.28 | 2.8 |
| Rotor Inertia(kg.cm2) | 0.19 | 0.24 |
| Torque Constant(N.m/A) | 0.1 | 0.1 |
| Torque Constant(V/krpm) | 8.2 | 8.1 |
| Line-Line Resistance(Ω) | 1.5 | 0.9 |
| Line-Line Inductance(mH) | 1.1 | 0.7 |
| Length(mm) | 12.5/12.5 | 22/23 |
| Weight(kg) | 0.6 | 0.9 |
Wiring Diagram

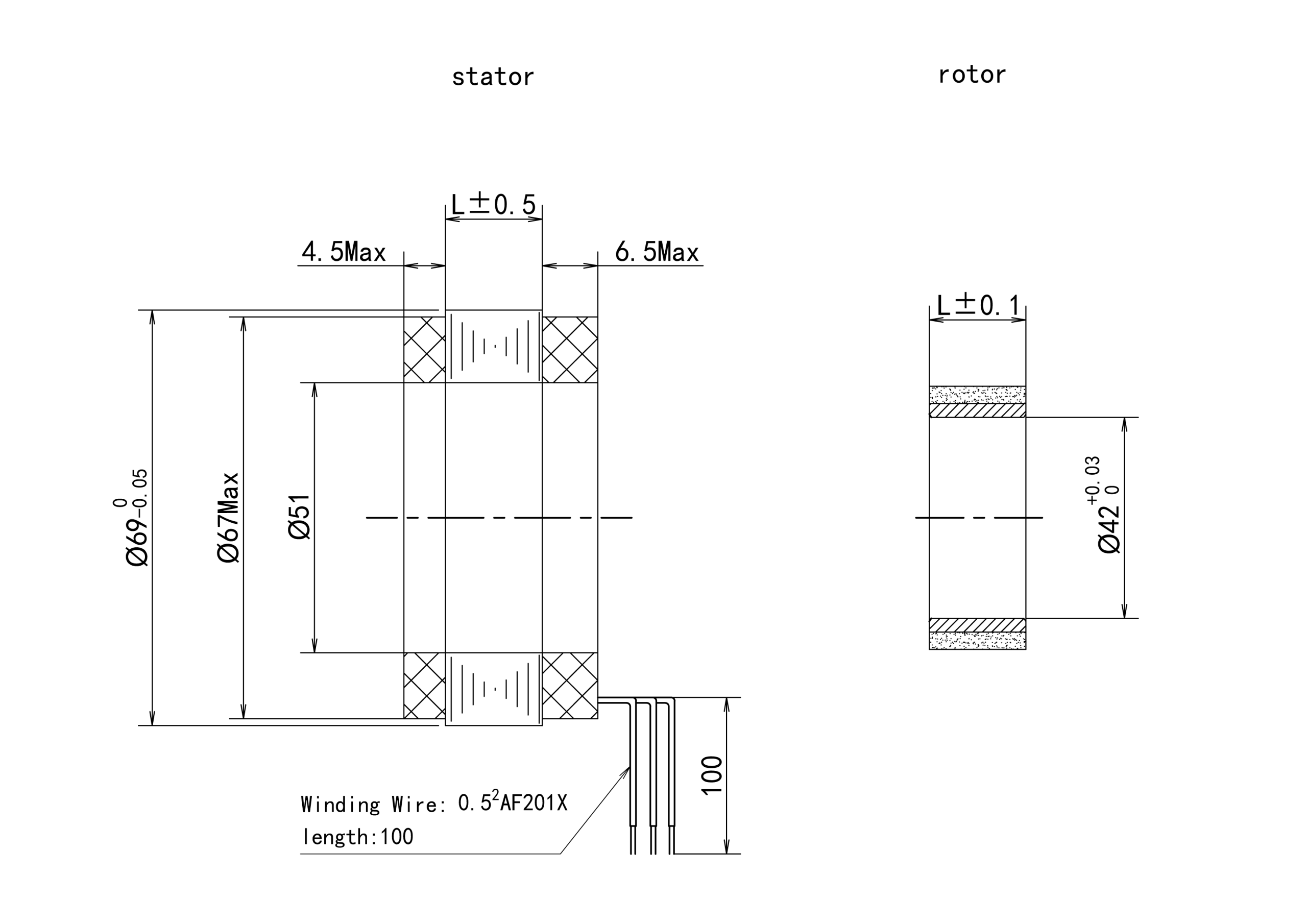

Motor Dimensions (mm)
