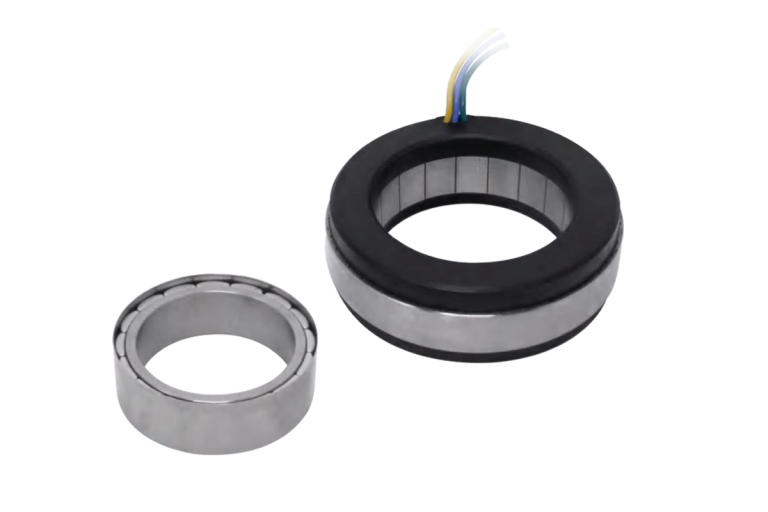

94mm Frameless BLDC Motor
- 3 Phase
- 48 VDC
- 16 Pole
- 630-1200 Watt
- 3,000 RPM
Note: Motor can be customized to meet the customers requirements.
Technical Specifications
| Motor Model | 94SSEH486330S | 94SSEH481230S |
|---|---|---|
| Number of Phase | 3 | |
| Number of Poles | 16 | |
| Rated Voltage(VDC) | 48 | |
| Rated Speed(Rpm) | 3000 | |
| Rated Torque(N.m) | 2 | 4 |
| Rated Power(W) | 630 | 1200 |
| Rated Current(A) | 17 | 34 |
| Peak Current(A) | 34 | 68 |
| Peak Torque(N.M) | 4 | 8 |
| Rotor Inertia(kg.cm2) | 0.5 | 0.8 |
| Torque Constant(N.m/A) | 0.1 | 0.1 |
| Torque Constant(V/krpm) | 8.5 | 8.5 |
| Line-Line Resistance(Ω) | 0.14 | 0.04 |
| Line-Line Inductance(mH) | 0.45 | 0.2 |
| Length(mm) | 12/13 | 23/24 |
| Weight(kg) | 0.8 | 1.3 |
Wiring Diagram

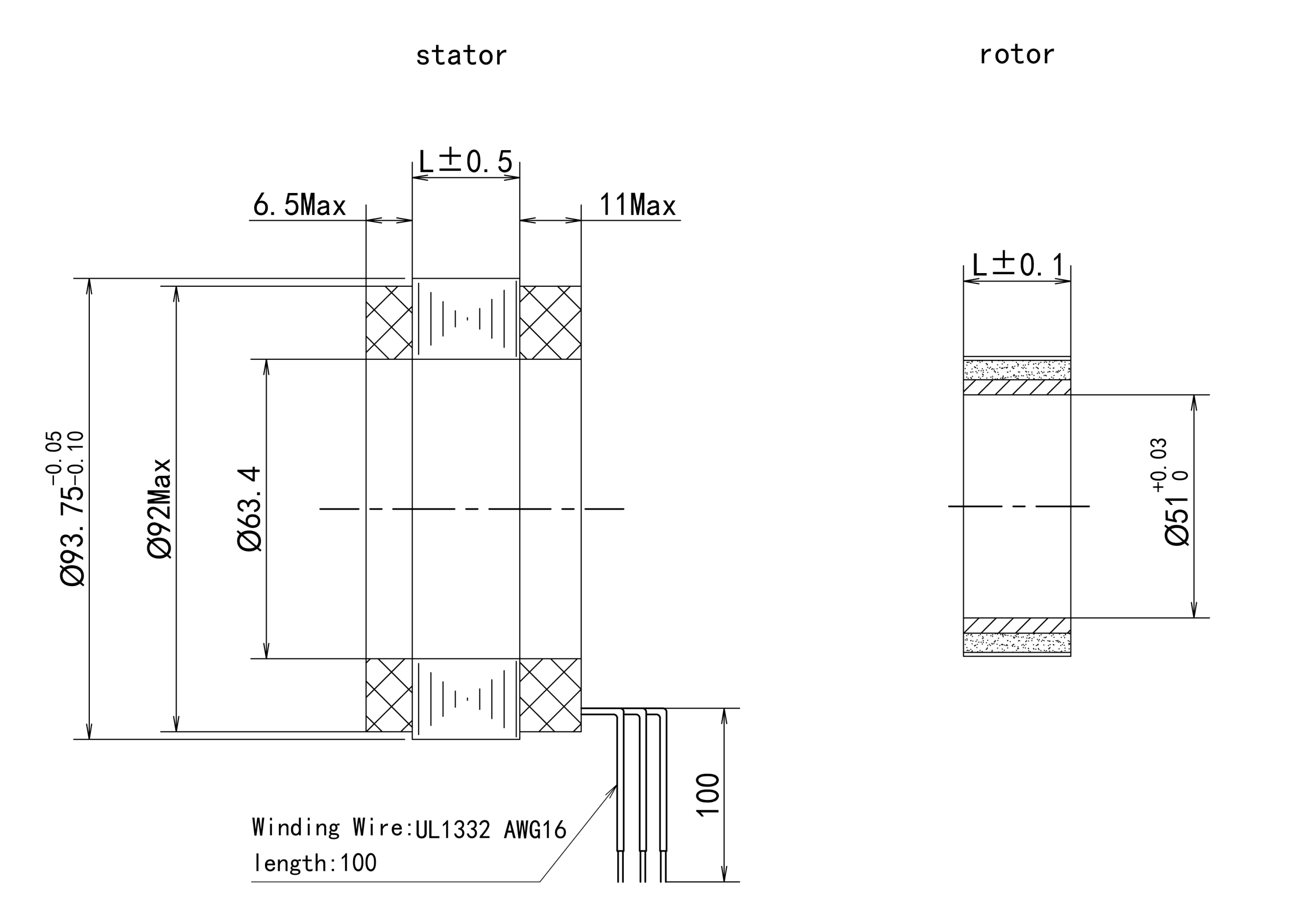

Motor Dimensions (mm)
OEM Service
Source Engineering has established a team of manufacturing partners in Asia to provide our customers with high-quality cost-effective Motors, Gearmotor and Motion Control products for the OEM marketplace.
Key Features
- 94SSEH: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Robotic joints
- Compact servo systems
- Humanoid robotics
- Medical devices
- Aerospace actuators
When to Choose This Model
Choose a frameless servo when you need maximum torque density with direct integration into your own housing.
