Humanoid Joint ModulesZD70
ZD70
The ZD70 is available from Source Engineering Inc. in Santa Clara, CA for OEM humanoid joint modules programs. Contact us for sizing, customization, samples, and volume pricing.

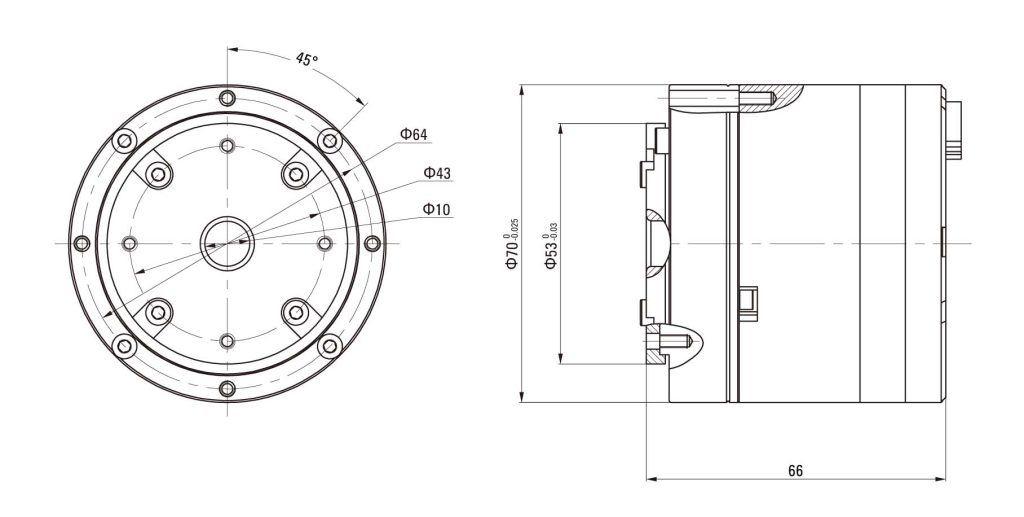

ZD70-16-B50-1/2 Outline Dimension Diagram
Joint Parameters
| Item | ZD70-16-B50-2 |
|---|---|
| Sizes | Ф70mm*66mm |
| Rated Voltage | 60V |
| Peak Rotational Speed | 72rpm |
| Rated Torque | 25N.m |
| Rated Speed | 50rpm |
| Rated Line Current | 3.7A |
| 20s Peak Torque | 50N.m |
| 20s Peak Line Current | 7.78A |
| Line Resistance | 1.54Ω |
| Wire Inductance | 1690.95mH |
| Back EMF Coefficient | 7.457V/krpm |
| Torque Constant | 0.13N.m/Arms |
| Velocity Constant | 60rpm/V |
| Encoder Resolution | Motor side 18bit |
| Insulation Resistance/Stator Winding | 500VDC, 10MΩ |
| High Voltage Resistance/Stator and Casing | 500VAC, 5s, 5mA |
| Weight | 720g±20g |
| Pole | 7 |
| Torque Density | 70Nm/Kg |
| Reduction Ratio | 50:1 |

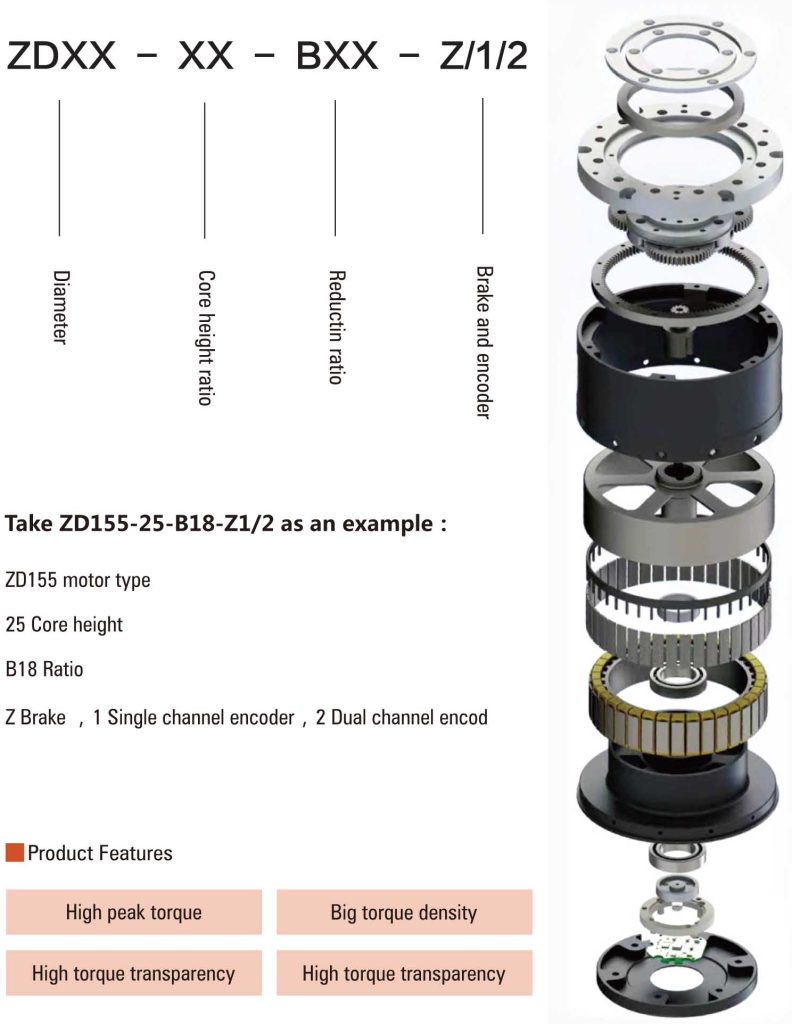

Ordering Info
