ZPNΦ52 Brushless Planetary DC Gear Motor
The ZPNΦ52 Brushless Planetary DC Gear Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM planetary dc gearmotors programs. Contact us for sizing, customization, samples, and volume pricing.
ZPNΦ52 Brushless Planetary DC Gear Motor

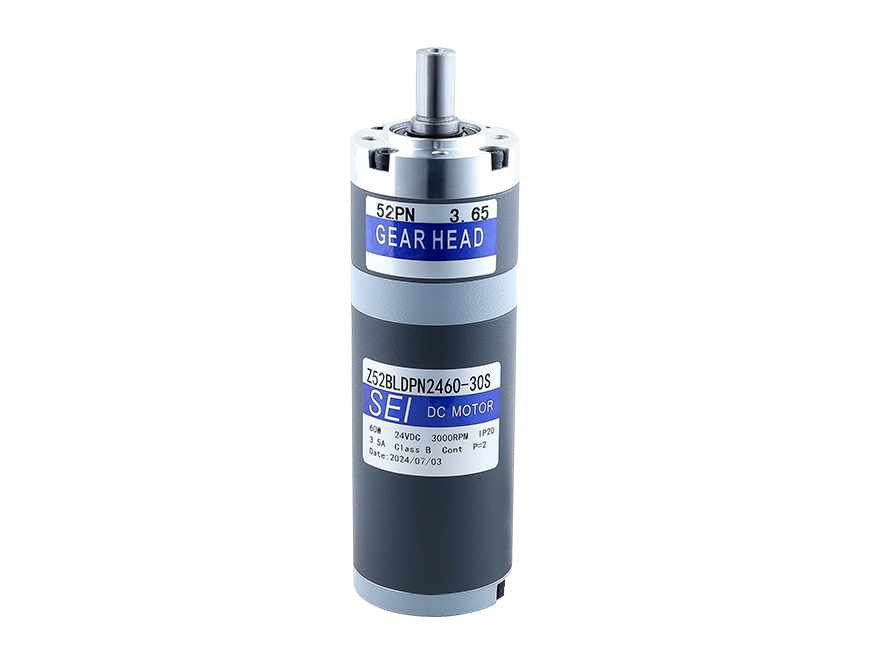

Product Images

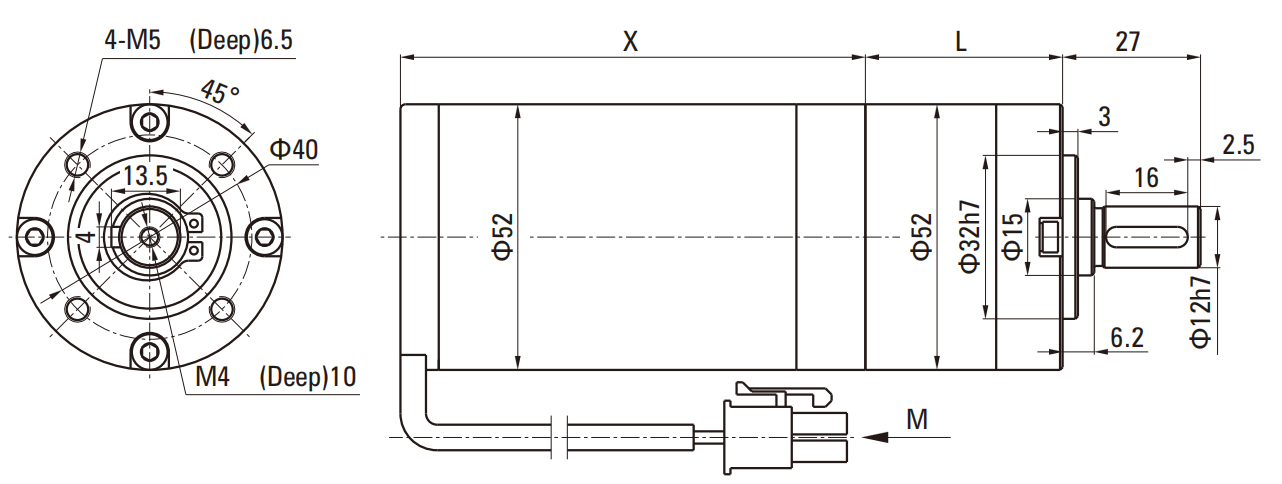

Outside Diameter 52mm DC Brushless Motor
| Motor Type | Dimension | Gearbox Model | Gear Ratio | Dimension |
|---|---|---|---|---|
| Z52BLDPN2440-30S | 91 | 62PN□ | 3.65～8.63 | 38.6 |
| 13.53～58.22 | 54.2 | |||
| Z52BLDPN2460-30S | 110 | |||
| 67.08～392.98 | 69.8 |
BLDC Motor Technical Data
| Motor Type | Voltage V | Rated Power W | Bated Current A | Rated Speed RPM | Rated Torque N.m | Grade Protection IP |
|---|---|---|---|---|---|---|
| Z52BLDPN2440-30S | 24 | 40 | 2.4 | 3000 | 0.127 | 20 |
| Z52BLDPN2460-30S | 24 | 60 | 3.8 | 3000 | 0.191 | 20 |
BLDC Planetary Gear Motor Technical Data-Z52BLDPN2440-30S
| Ratio | 3.65 | 5.36 | 6.55 | 8.63 | 13.53 | 18.92 | 24.65 | 28.05 | 33.92 | 44.69 | 58.22 | 67.08 | 81.11 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output shaft speed | 822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 | 88 | 67 | 52 | 45 | 37 |
| Allowable torque | 0.42 | 0.61 | 0.75 | 0.99 | 1.40 | 1.95 | 2.54 | 2.89 | 3.50 | 4.61 | 6.00 | 6.24 | 7.54 |
| Reduction stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
BLDC Planetary Gear Motor Technical Data-Z52BLDPN2440-30S (2)
| Ratio | 91.36 | 102.88 | 118.98 | 127.74 | 145.36 | 165.64 | 191.56 | 231.61 | 301.68 | 392.98 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output shaft speed | 33 | 29 | 25 | 23 | 21 | 18 | 16 | 13 | 10 | 8 |
| Allowable torque | 8.49 | 9.55 | 11.06 | 11.87 | 13.51 | 15.40 | 17.81 | 21.53 | 25 | 25 |
| Reduction stage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Key Features
- ZPNΦ52 Brushless Planetary DC Gear Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Robotics
- Automation
- Medical
- Instruments
- Mobile platforms
When to Choose This Model
Choose planetary DC gearmotors for high torque density and low noise in round packages.
Frequently Asked Questions
What is the ZPNΦ52 Brushless Planetary DC Gear Motor used for?
The ZPNΦ52 Brushless Planetary DC Gear Motor is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.
Can you customize this model?
Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.
How do I get pricing and lead time?
Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
