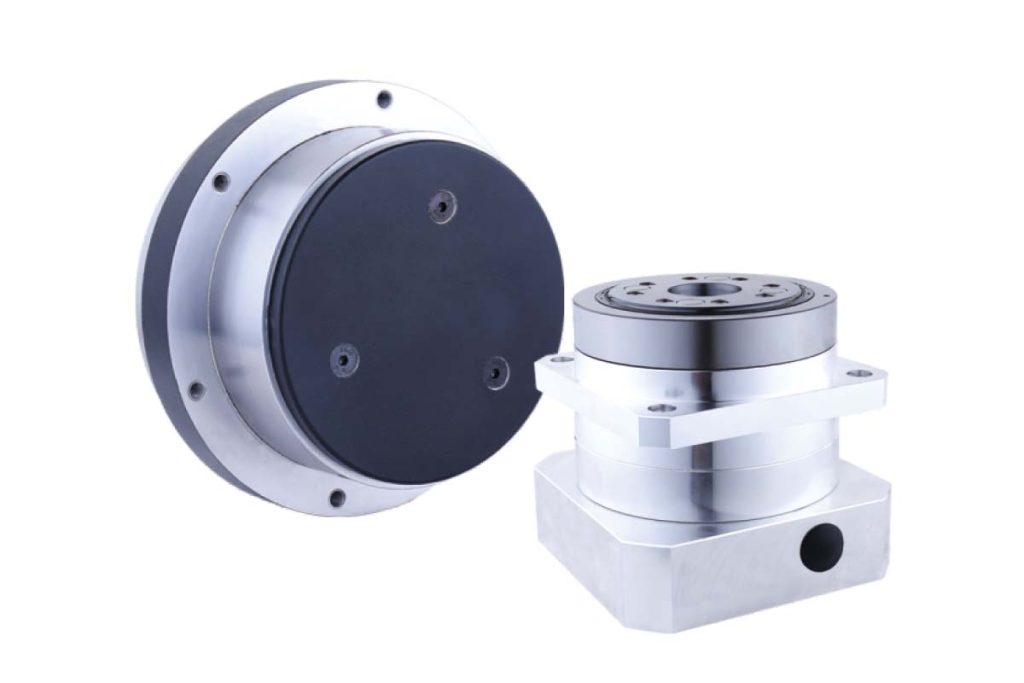

Planetary GearboxesSAGV SERIES
SAGV Series
The SAGV Series is available from Source Engineering Inc. in Santa Clara, CA for OEM planetary gearboxes programs. Contact us for sizing, customization, samples, and volume pricing.
SAGV Series
Key features
- Low noise
- Helical Gear
- Backlash ≤25 arcmin
- 95% efficiency
- Operating Temp -10℃~+90℃
- Lifetime lubrication
- Multiple stage configurations
- IP65
- Customs available
Reducer Performance Data
| Reduction Ratio | i (Recommend) | 5 | 6 | 7 | 9 |
|---|---|---|---|---|---|
| Nominal output torque T2N | Nm | 60 | 55 | 50 | 40 |
| Maximu acceleration torque T2B | Nm | Rated torque*1.8 | |||
| Sudden stop torque T2NOT | Nm | 3 time the rated torque | |||
| Nominal input speed | rpm | 3000 | |||
| Maximun input speed | rpm | 4500 | |||
| Backlash | arcmin | ≤25 | |||
| Maximum radial load | N | 3000 | |||
| Maximum axial load | N | 500 | |||
| Noise value Distance 1m (n=3000 rpm, No load) | dB(A) | ≤60 | |||
| Service life | h | 20000 | |||
| Efficiency | % | 95% | |||
| Use of temperature | ℃ | -10℃～+90℃ | |||
| Lubrication | – | Lifetime Lubrication | |||
| Weight | kg | ≤3.6 | |||
| Rubber wheel specifications (Recommended) | – | 150*40 Polyurethane rubber wheel optional | |||
| Stage number | – | 1 | |||

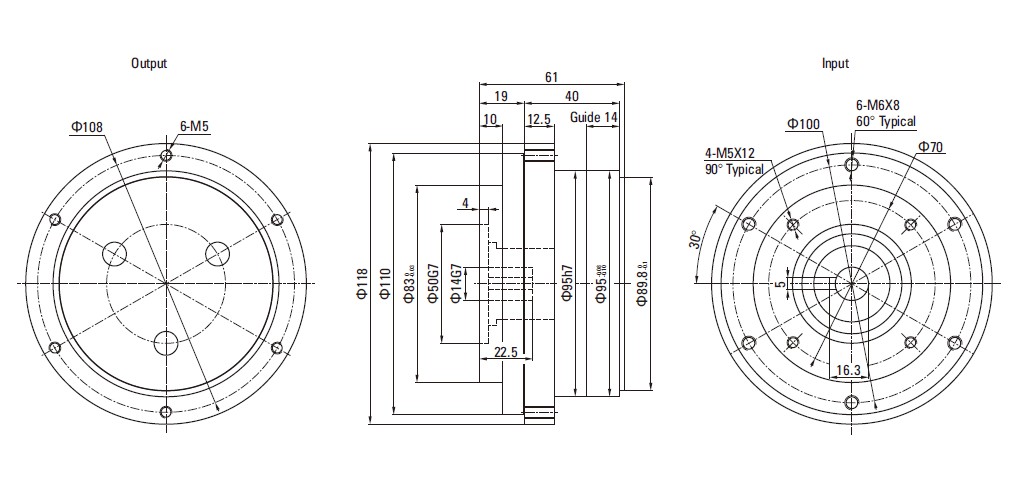

Dimensional Drawing

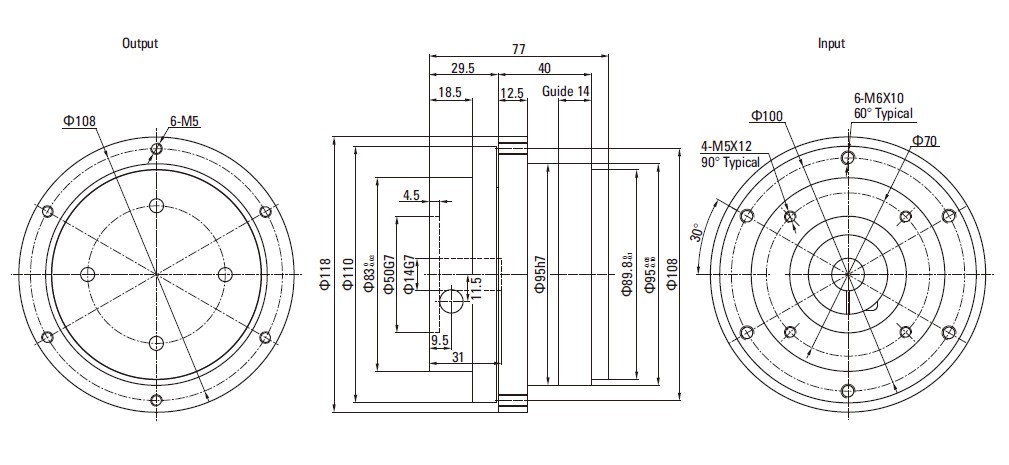

95SAGV 2 Stage
| Reduction Ratio | i (Recommend) | 12 | 15 | 16 | 20 |
|---|---|---|---|---|---|
| Nominal output torque T2N | Nm | 55 | 50 | 75 | 70 |
| Maximu acceleration torque T2B | Nm | Rated torque*1.8 | |||
| Sudden stop torque T2NOT | Nm | 3 time the rated torque | |||
| Nominal input speed | rpm | 3000 | |||
| Maximun input speed | rpm | 4500 | |||
| Backlash | arcmin | ≤25 | |||
| Maximum radial load | N | 3000 | |||
| Maximum axial load | N | 500 | |||
| Noise value Distance 1m (n=3000 rpm, No load) | dB(A) | ≤60 | |||
| Service life | h | 20000 | |||
| Efficiency | % | 92% | |||
| Use of temperature | ℃ | -10℃～+90℃ | |||
| Lubrication | – | Synthetic grease | |||
| Weight | kg | ≤4.5 | |||
| Rubber wheel specifications (Recommended) | – | 150*40 Polyurethane rubber wheel optional | |||
| Stage number | – | 2 | |||

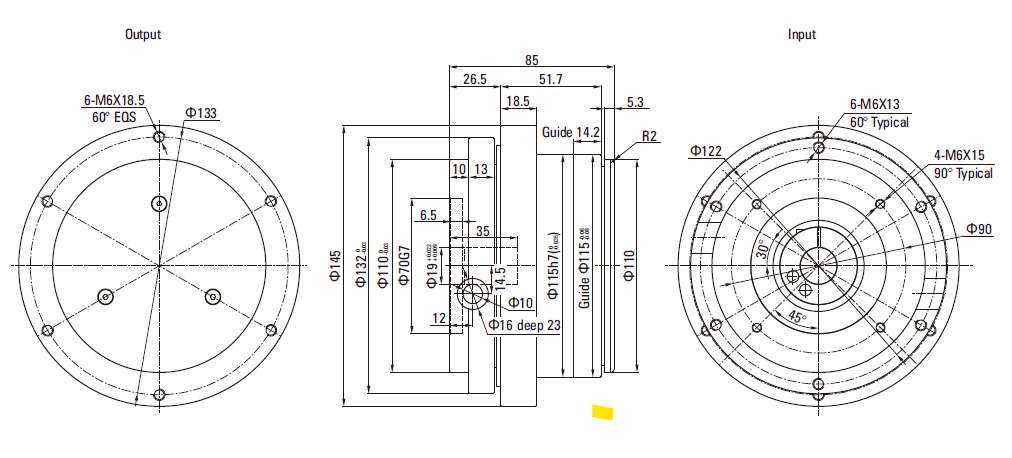

115SAGV Travelling wheel
| Reduction Ratio | i (Recommend) | 15 | 18 | 20 | 21 | 30 |
|---|---|---|---|---|---|---|
| Nominal output torque T2N | Nm | 80 | 140 | 100 | 130 | 150 |
| Maximu acceleration torque T2B | Nm | Rated torque*1.8 | ||||
| Sudden stop torque T2NOT | Nm | 3 time the rated torque | ||||
| Nominal input speed | rpm | 3000 | ||||
| Maximun input speed | rpm | 6000 | ||||
| Backlash | arcmin | ≤25 | ||||
| Maximum radial load | N | 8000 | ||||
| Maximum axial load | N | 2000 | ||||
| Noise value Distance 1m (n=3000 rpm, No load) | dB(A) | ≤63 | ||||
| Service life | h | 20000 | ||||
| Efficiency | % | 92% | ||||
| Use of temperature | ℃ | -10℃～+90℃ | ||||
| Lubrication | – | Synthetic grease | ||||
| Weight | kg | ≤5 | ||||
| Rubber wheel specifications (Recommended) | – | 180*58.5 Polyurethane rubber wheel optional | ||||
| Stage number | – | 2 | ||||

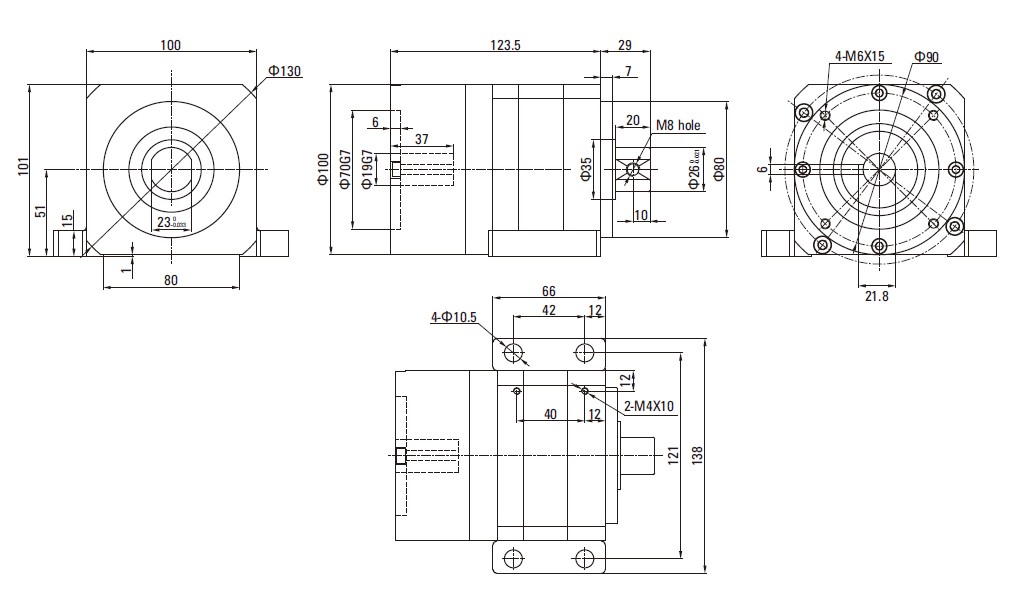

090SAGV Lift
| Reduction Ratio | i (Recommend) | 80 |
|---|---|---|
| Nominal output torque T2N | Nm | 180 |
| Sudden stop torque T2NOT | Nm | 3 time the rated torque |
| Nominal input speed | rpm | 3000 |
| Backlash | arcmin | ≤25 |
| Maximum radial load | N | 8000 |
| Maximum axial load | N | 3300 |
| Noise value Distance 1m (n=3000 rpm, No load) | dB(A) | ≤63 |
| Service life | h | 20000 |
| Efficiency | % | 92% |
| Use of temperature | ℃ | -10℃～+90℃ |
| Lubrication | – | Synthetic grease |
| Weight | kg | ≤5 |
| Stage number | – | 2 |

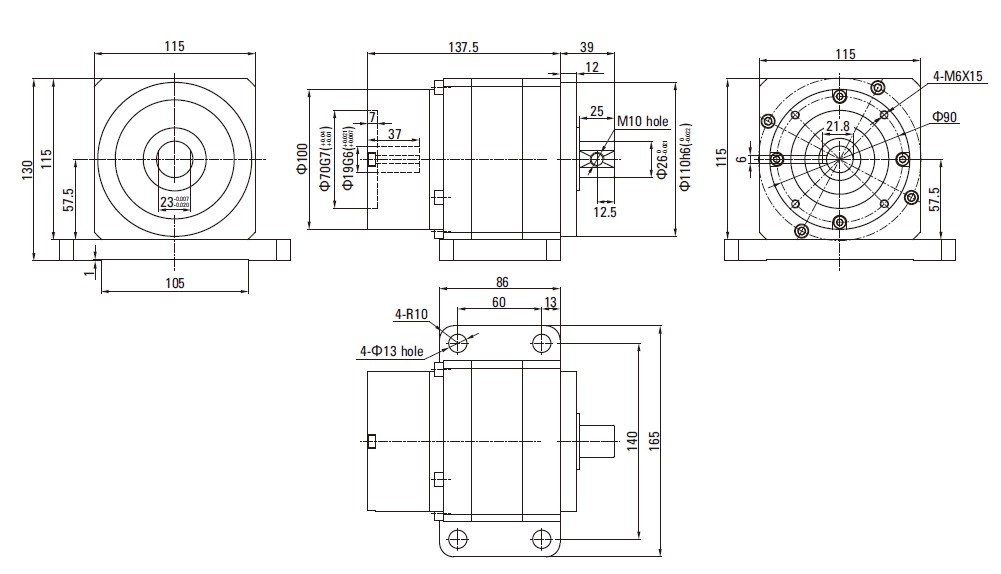

115SAGV Lift
| Reduction Ratio | i (Recommend) | 80 |
|---|---|---|
| Nominal output torque T2N | Nm | 180 |
| Sudden stop torque T2NOT | Nm | 3 time the rated torque |
| Nominal input speed | rpm | 3000 |
| Backlash | arcmin | ≤25 |
| Maximum radial load | N | 8000 |
| Maximum axial load | N | 3300 |
| Noise value Distance 1m (n=3000 rpm, No load) | dB(A) | ≤63 |
| Service life | h | 20000 |
| Efficiency | % | 92% |
| Use of temperature | ℃ | -10℃～+90℃ |
| Lubrication | – | Synthetic grease |
| Weight | kg | ≤5 |
| Stage number | – | 2 |
Key Features
- SAGV Series: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Robotics
- CNC
- Semiconductor
- Factory automation
- AGV/AMR
When to Choose This Model
Select this planetary series based on backlash, ratio range, and mounting requirements for your servo or stepper.
Frequently Asked Questions
What is the SAGV Series used for?
The SAGV Series is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.
Can you customize this model?
Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.
How do I get pricing and lead time?
Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
