NEMA 42 High Torque Stepping Motor
The NEMA 42 High Torque Stepping Motor is available from Source Engineering Inc. in Santa Clara, CA for OEM stepping motors programs. Contact us for sizing, customization, samples, and volume pricing.

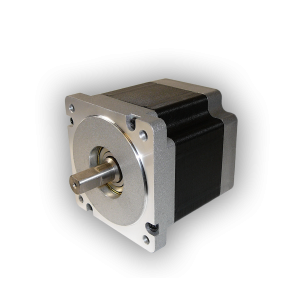

NEMA 42 High Torque Stepping Motor
Product Details
Features:
- 1.8 degree Step Angle
- High Accuracy and Low Vibration
- Holding Torque up to 2776 oz-in
Options: Connectors and Cabling, Modified Shafts, Custom Windings, Additional stack lengths available
Size 42 High Torque Stepping Motor Specifications
| Model No. | # of Lead | Connection | PER PHASE | Holding Torque | Detent toque | Rotor Inertia | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Resistance | Inductance | ||||||||||
| Uni-Polar | Bi-Polar | A | Ω | MH | Oz-in | N.m | N.m | g-cm2 | Kg | |||
| 42H390H-420-8A/B | 8 | * | 4.2 | 1.76 | 13.2 | 991 | 7.0 | 0.3 | 5500 | 5 | ||
| 42H390H-290-8A/B | S | 2.9 | 3.52 | 52.8 | 1388 | 9.8 | ||||||
| 42H390H-590-8A/B | P | 5.9 | 0.88 | 13.2 | 1388 | 9.8 | ||||||
| 42H390H-420-8A/B | 8 | * | 6.0 | 0.85 | 6.7 | 991 | 7.0 | 0.3 | 5500 | 5 | ||
| 42H390H-290-8A/B | S | 4.2 | 1.7 | 26.8 | 1388 | 9.8 | ||||||
| 42H390H-590-8A/B | P | 8.4 | 0.425 | 6.7 | 1388 | 9.8 | ||||||
| 42H580H-420-8A/B | 8 | * | 4.2 | 2.7 | 26.5 | 1983 | 14.0 | 0.6 | 11000 | 8.4 | ||
| 42H580H-290-8A/B | S | 2.9 | 5.4 | 106.0 | 2776 | 19.6 | ||||||
| 42H580H-590-8A/B | P | 5.9 | 1.35 | 26.5 | 2776 | 19.6 | ||||||
| 42H580H-420-8A/B | 8 | * | 6.0 | 1.3 | 13.4 | 1983 | 14.0 | 0.6 | 11000 | 8.4 | ||
| 42H580H-290-8A/B | S | 4.2 | 2.6 | 53.6 | 2776 | 19.6 | ||||||
| 42H580H-590-8A/B | P | 8.4 | 0.65 | 13.4 | 2776 | 19.6 | ||||||
Key Features
- NEMA 42 High Torque Stepping Motor: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Downloads
Applications
- CNC and machine tools
- 3D printing
- Medical automation
- Semiconductor stages
- Packaging machinery
When to Choose This Model
Choose this stepping motor configuration when you need precise open-loop positioning with NEMA-standard mounting and configurable windings.
