40mm Diameter Planetary Gearbox
The 40mm Diameter Planetary Gearbox is available from Source Engineering Inc. in Santa Clara, CA for OEM stepping motors programs. Contact us for sizing, customization, samples, and volume pricing.

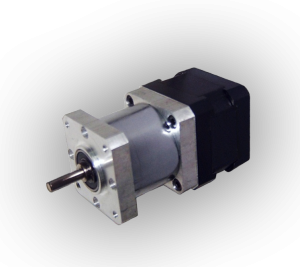

40mm Diameter Planetary Gearbox
Features:
- NEMA 17 Stepping motor
- Square Flange Mount
- Gear Ratios from 4:1 up to 125:1
- Rated Output Torque up to 3.9NM (555 oz-in)
Gear Box Data
| Reduction Ratio | X:1 | 3 | 4 | 5 | 9 | 15 | 20 | 25 | 36 | 48 | 60 | 80 | 100 | 125 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of gear trains | # | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
| Max Permissible Torque | kg.cm | 20 | 20 | 20 | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 40 | 40 | 40 |
| Moment Permissible Torque | kg.cm | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 |
| Gear Box Length | mm | 31.5 | 31.5 | 31.5 | 40.5 | 40.5 | 40.5 | 40.5 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 |
Motor Specifications
| Model | Step Angle | Length (Ld) | Phase Voltage | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wire |
|---|---|---|---|---|---|---|---|---|
| ° | mm | V | A | Ω | mH | g.cm | # | |
| 42BYGH25(M)-091-4A/B | 0.9/1.8 | 25 | 3 | 0.91 | 3.3 | 8 | 1600 | 4 |
| 42BYGH34(M)-040-4A/B | 0.9/1.8 | 34 | 12 | 0.40 | 30 | 37 | 2200 | 4 |
| 42BYGH40(M)-040-6A/B | 0.9/1.8 | 40 | 12 | 0.40 | 30 | 21 | 2570 | 6 |
| 42BYGH40(M)-160-4A/B | 0.9/1.8 | 40 | 2.78 | 1.60 | 1.73 | 3.2 | 3600 | 4 |
| 42BYGH48(M)-040-6A/B | 0.9/1.8 | 48 | 12 | 0.40 | 30 | 25 | 3200 | 6 |
| 42BYGH48(M)-120-4A/B | 0.9/1.8 | 48 | 3.6 | 1.20 | 3 | 5 | 4500 | 4 |
Replace □ with A = single shaft; replace □ with B = double shaft
