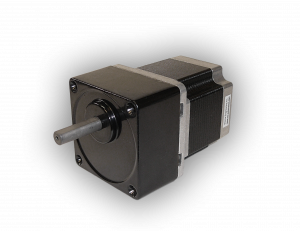

60mm Spur Geared Stepping Motors
Download Datasheet Size 23 Stepping Motors Six standard gear ratios are available:
The 60mm Spur Geared Stepping Motors is available from Source Engineering Inc. in Santa Clara, CA for OEM stepping motors programs. Contact us for sizing, customization, samples, and volume pricing.
60mm Spur Geared Stepping Motors
Product Details
Features:
- NEMA 23 Stepping Motors High Torque up to 4 Nm(556 oz-in) Gear ratios from 3.6:1 – 36:1 Low cost, Compact size Custom Shafts and Encoders Available
Size 23 Stepping Motors
Six standard gear ratios are available:
| Standard Gear Ratio | Maximum Torque | |
|---|---|---|
| lb-in | N.m | |
| 3.6:1 | 8.6 | 1 |
| 7.2:1 | 17.3 | 2 |
| 9:01 | 21.6 | 2.5 |
| 10:01 | 23.4 | 2.7 |
| 18:01 | 26 | 3 |
| 36:01:00 | 34.7 | 4 |
Gear Motor (with selected gear ratios) Specifications
| Model | Holding Torque | Current | Voltage | Resistance | Inductance | Step Angle | Gear ratio | L | |
|---|---|---|---|---|---|---|---|---|---|
| lb-in | N.m | Amp | V | ohm | mH | Full step | mm | ||
| 23H160-110-6A/G36 | 34.7 | 4 | 1.1 | 4 | 3.6 | 3.6 | 0.05 | 36 | 41 |
| 23H200-085-6A/G18 | 26 | 3 | 0.85 | 6 | 7.1 | 9 | 0.1 | 18 | 51 |
| 23H220-120-6A/G10 | 23.4 | 2.7 | 1.2 | 6 | 5 | 8 | 0.18 | 10 | 56 |
| 23H300-150-6A/G9 | 21.6 | 2.5 | 1.5 | 5.4 | 3.6 | 6 | 0.2 | 9 | 76 |
| 23H160H-100-6A/10 | 23.4 | 2.7 | 1 | 5.7 | 5.7 | 5.6 | 0.18 | 10 | 41 |
| 23H200H-100-6A/G9 | 21.6 | 2.5 | 1 | 6.6 | 6.6 | 8.2 | 0.2 | 9 | 51 |
| 23H220H-110-6A/G7.2 | 17.3 | 2 | 1 | 7.4 | 7.4 | 10 | 0.25 | 7.2 | 56 |
| 23H300H-110-6A/G3.6 | 8.67 | 1 | 1 | 8.6 | 8.6 | 14 | 0.5 | 3.6 | 76 |
Note: Different motor and Gear box combinations are available
Key Features
- 60mm Spur Geared Stepping Motors: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Downloads
Applications
- CNC and machine tools
- 3D printing
- Medical automation
- Semiconductor stages
- Packaging machinery
When to Choose This Model
Choose this stepping motor configuration when you need precise open-loop positioning with NEMA-standard mounting and configurable windings.
