SEPR Series Planetary Gearbox
The SEPR Series Planetary Gearbox is available from Source Engineering Inc. in Santa Clara, CA for OEM planetary gearboxes programs. Contact us for sizing, customization, samples, and volume pricing.
SEPR Series Planetary Gearbox

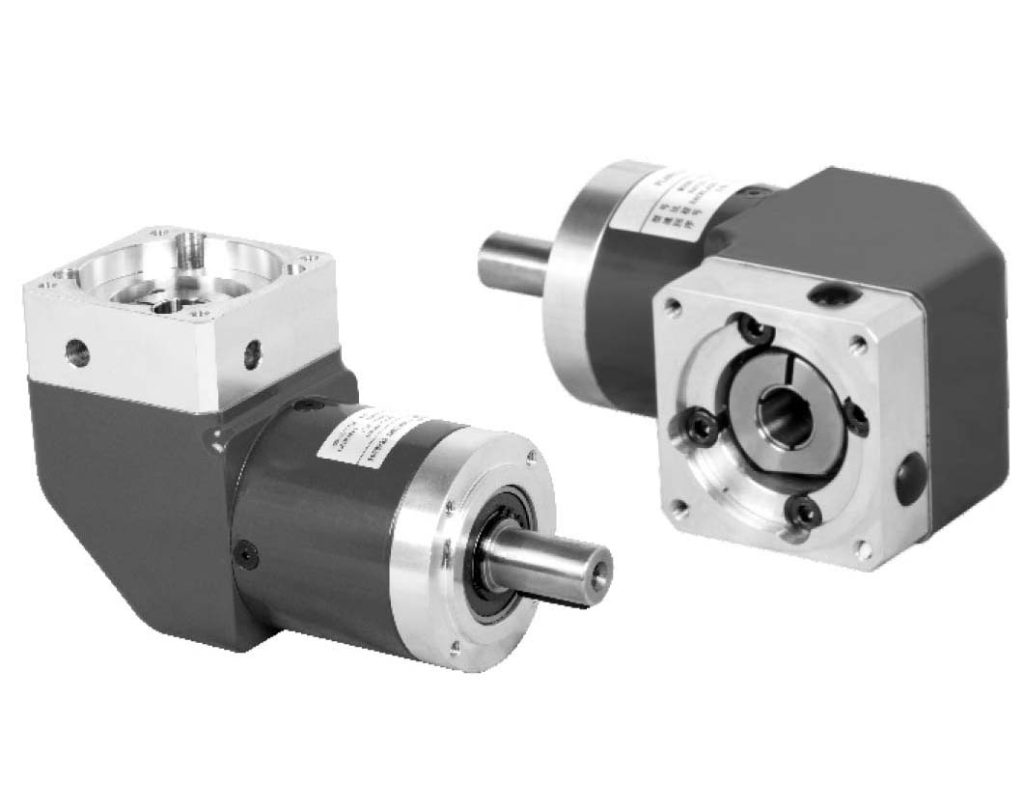

SEPR Series Right Angle Planetary Gearbox
- Low noise
- Spur Gear
- Bevel Gear Rt. Angle
- Backlash ≤13-≤16 arcmin
- 94% efficiency
- Operating Temp -25° to 90°C
- Lifetime lubrication
- Multiple stage configurations
- Customs available
Technical Data
| Product type | 60 | 80 | Reduction ratio | Number of stage | |
|---|---|---|---|---|---|
| Rated output torque | N.M | 14 | 40 | 3 | 1 |
| 19 | 53 | 4 | |||
| 24 | 67 | 5 | |||
| 18 | 50 | 8 | |||
| 15 | 38 | 10 | |||
| 44 | 130 | 9 | 2 | ||
| 44 | 120 | 12 | |||
| 44 | 110 | 15 | |||
| 44 | 120 | 16 | |||
| 44 | 120 | 20 | |||
| 40 | 110 | 25 | |||
| 44 | 120 | 32 | |||
| 40 | 110 | 40 | |||
| 18 | 50 | 64 | |||
| Life | Hour | 20,000 | |||
| Instant stop torque | N.M | 66 | 180 | 3 | – |
| 86 | 240 | 4 | |||
| 80 | 220 | 5 | |||
| 80 | 190 | 8 | |||
| 70 | 170 | 10 | |||
| 88 | 260 | 9 | – | ||
| 88 | 240 | 12 | |||
| 88 | 220 | 15 | |||
| 88 | 240 | 16 | |||
| 88 | 240 | 20 | |||
| 80 | 220 | 25 | |||
| 88 | 240 | 32 | |||
| 80 | 220 | 40 | |||
| 80 | 190 | 64 | |||
| Product type | 60 | 80 | Unit | Number of stage |
|---|---|---|---|---|
| Max radial load | 700 | 1250 | N | |
| Max axial load | 800 | 1600 | N | |
| Full load efficiency | 95 | 1 | ||
| 94 | % | 2 | ||
| Weight | 1.6 | 3.7 | Kg | 1 |
| 1.8 | 4.1~4.2 | 2 | ||
| Operating temperature | -25~+90 | ℃ | ||
| Lubrication type | Lifetime lubrication | |||
| Mounting type | Any | |||
| Product type | 60 | 80 | Reduction ratio | |
|---|---|---|---|---|
| Moment of inertia | Kgcm2 | 0.221~0.357 | 0.910~1.273 | 3 |
| 4 | ||||
| 5 | ||||
| 8 | ||||
| 10 | ||||
| 0.222~0.350 | 0.916~1.232 | 9 | ||
| 12 | ||||
| 15 | ||||
| 16 | ||||
| 20 | ||||
| 25 | ||||
| 32 | ||||
| 40 | ||||
| 64 |
| Product type | 60 | 80 | Number of stage | |
|---|---|---|---|---|
| Backlash | arcmin | ＜16 | ＜13 | 1 |
| ＜18 | ＜15 | 2 |
| Product type | 60 | 80 | |||
|---|---|---|---|---|---|
| Number of stage | 1 | 2 | 1 | 2 | |
| Torsional stiffness | N.M/arcmin | 1.5-2.3 | 2.2-2.7 | 4.0-7.9 | 6.9-9.6 |
| Noise | dB(A) | 70 | 73 | ||
| Max input speed | min-1 | 13000 | 7000 | ||
| Recommend input speed | min-1 | 4500 | 4000 | ||
1. The moment of inertia is related with input shaft. 2. Noise test standard, distance 1m, measured no-load running with an input speed of 3000rpm. 3. The max radial and axial torque work in the location of the center of output shaft when the out speed is 100RPM. 4. The maximum input speed is designed to software.
Dimensions
Unit: mm
| PN | 60SEPR | 80SEPR | ||
|---|---|---|---|---|
| Number of stage | 1 | 2 | 1 | 2 |
| L1 overall length | / | / | / | / |
| L3 body length | 47 | 59.5 | 60 | 78 |
| Output | ||||
| L12 overall height | / | / | ||
| L4 output shaft length | 35 | 40 | ||
| L5 output length to the shaft shoulder | 30.5 | 36 | ||
| L6 key length | 25 | 28 | ||
| L7 key length to the shaft end | 2.5 | 4 | ||
| L8 protruding length | 3 | 3 | ||
| D4 output shaft diameter | Φ14h7 | Φ20h7 | ||
| D5 shaft shoulder diameter | Φ17 | Φ25 | ||
| D6 protruding diameter | Φ40h7 | Φ60h7 | ||
| D7 body diameter | Φ60 | Φ80 | ||
| D8 hole circle | Φ52 | Φ70 | ||
| B1 key width | 5 | 6 | ||
| H1 key height | 16 | 22.5 | ||
| G2 mounting screw hole | M5X8 | M6X10 | ||
| G3 center screw hole | M5X12 | M6X16 | ||
| Input | ||||
| L2 input flange length | For more detailed information, please consult the manufacturer | |||
| L9 motor shaft length | ||||
| L10 protruding depth | ||||
| D1 mounting hole distribution circle | ||||
| D2 protruding diameter | ||||
| D3 input shaft diameter | ||||
| G1 mounting threads hole x depth | ||||
| Q3 input flange | □60 | □80 | ||
Ordering Information
| 60 | SEP | 10 | ( ) | (S) | – | 7 5 0 |
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| ① | Gear head frame size: 60 |
| ② | Gear head series code: |
| SEP: Inline | |
| SEPR: Right angle | |
| SEPB: Inline Large Output Bearing | |
| SEPRL: Right angle Large Output Bearing | |
| ③ | Gear ratio : |
| Single stage 3,4,5,8,10 | |
| Two stage 9,12,15,16,20,25,32,40,64 | |
| ④ | Input Flange: 1(Round), 2 (Square) |
| ⑤ | Input shaft type |
| S: Over locking (Omission) (Can use it whatever motor shaft has keyway or not) | |
| S: Locking with locking ring (Can use it whatever motor shaft has keyway or not) | |
| ⑥ | S2: Locking with keyway (Input shaft with key) |
| K: With keyway | |
| A: Other type (Please contact with us) | |
| Applicable servo motor power (W) |
Key Features
- SEPR Series Planetary Gearbox: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Robotics
- CNC
- Semiconductor
- Factory automation
- AGV/AMR
When to Choose This Model
Select this planetary series based on backlash, ratio range, and mounting requirements for your servo or stepper.
