SBFWR SAEWR SAFWR Series

Datasheet Inquire Now! Ordering Information 1 Gear head frame size: 060/090/60/90 2 Gear head series code: SBFWR: Square mounting flange series 3 Gear ratio: Single stage 10 4 Accuracy

The SBFWR SAEWR SAFWR Series is available from Source Engineering Inc. in Santa Clara, CA for OEM planetary gearboxes programs. Contact us for sizing, customization, samples, and volume pricing.

Request a Quote(408) 980-9822
SBFWR SAEWR SAFWR Series

SBFWR SAEWR SAFWR Series

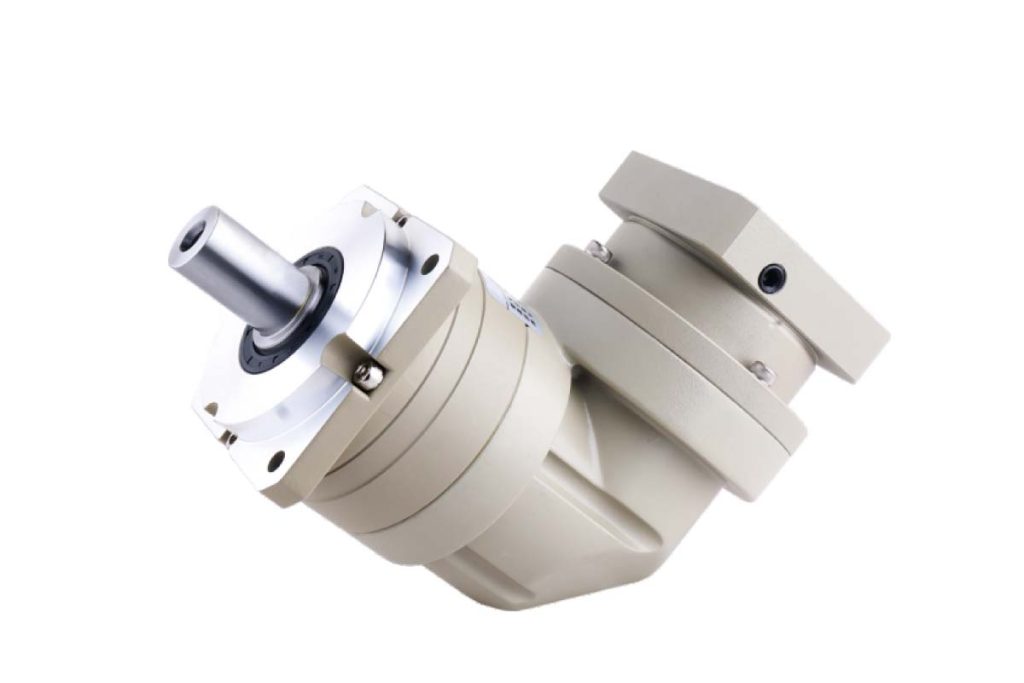

SBFWR/SAEWR/SAFWR SERIES GEAR BOX

  • High Precision
  • Quiet and smooth operation
  • High Torque
  • Helical Gear
  • Backlash ≤8-≤15 arcmin
  • ≥97% efficiency
  • IP65
  • Operating Temp -10° to 90°C
  • Multiple stage configurations
  • Customs available

Ordering Information

SBFWR SAEWR SAFWR Series drawing
1Gear head frame size: 060/090/60/90
2Gear head series code: SBFWR: Square mounting flange series
3Gear ratio: Single stage 10
4Accuracy Output shaft load value at ±3% of allowable output torqueCabin seatStageStandard (omitted)
060SBFWR18
212
090SBFWR18
212
60SAE/FWR110
215
90SAE/FWR110
215
5Input shaft type S: Overall locking (Omitted) (Can be used regardless of whether the motor has a keyway) S1: Locking with locking ring (Can be used regardless of whether the motor has a keyway) S2: Lock with keyway (Input shaft with key) K: With keyway A: Other adapters (Please contact us)
6Applicable servo motor power (W)
7Corresponding dimension table of input flange and servo motor ( )

Maximum radial force and maximum axial force, when the output is 100RPM, it acts on the center position (L/2) of the output shaft.

Technical Information

Product type060SBFWR090SBFWR60SAE/FWR90SAE/FWRReduction ratioStage
Rated output torqueN.M45120318531
4013050954
50150411055
4013030937
3511023838
3090187010
4512031115152
401305013020
501504113525
401504112535
351504111540
501504113550
45110238364
401203011070
35110238380
30901873100
LifeHour20000
Instant emergency stop torqueN.M3 times rated output torque2 times rated output torque–
Product type060SBFWR090SBFWR60SAE/FWR90SAE/FWRUnitStage
Radial force110030007502100N–
Axial force63012303751050N–
Full load efficiency≥971
≥94%2
Weight1.65.61.55.6Kg1
1.96.31.86.32
Operating temperature-10~+90℃–
Protection levelIP65
Lubrication methodLifetime lubrication
Installation methodAny
Product type060SBFWR090SBFWR60SAE/FWR90SAE/FWRReduction ratioStage
Moment of inertiaKgcm20.32.30.32.331
0.32.30.32.34
0.32.30.32.35
0.32.30.32.37
0.32.30.32.38
0.32.30.32.310
0.070.30.070.3152
0.070.30.070.320
0.070.30.070.325
0.070.30.070.335
0.070.30.070.340
0.070.30.070.350
0.070.30.070.364
0.070.30.070.370
0.070.30.070.380
0.070.30.070.3100
Product type060SBFWR090SBFWR60SAE/FWR90SAE/FWRStage
Backlasharcmin≤8≤8≤10≤101
≤12≤12≤15≤152
Torsion resistanceN.M/arcmin7141.84.5–
NoisedB(A)≤65≤73–
Output speedmin-16000600045004500–
Recommended input speedmin-13000300030003000–
Product type060SBFWR090SBFWR60SAE/FWR90SAE/FWRReduction ratioStage
Moment of inertiaKgcm20.32.30.32.331
0.32.30.32.34
0.32.30.32.35
0.32.30.32.37
0.32.30.32.38
0.32.30.32.310
0.070.30.070.3152
0.070.30.070.320
0.070.30.070.325
0.070.30.070.335
0.070.30.070.340
0.070.30.070.350
0.070.30.070.364
0.070.30.070.370
0.070.30.070.380
0.070.30.070.3100
Product type060SBFWR090SBFWR60SAE/FWR90SAE/FWRStage
Backlasharcmin≤8≤8≤10≤101
≤12≤12≤15≤152
Torsion resistanceN.M/arcmin7141.84.5–
NoisedB(A)≤65≤73–
Output speedmin-16000600045004500–
Recommended input speedmin-13000300030003000–

1. Moment of inertia is related to input shaft. 2. Noise detection standard, distance 1m, measured at input speed of 3000 rpm with no load.

Configuration Options

  • Custom shafts, windings, encoders, and cable assemblies on request
  • Prototype samples through production volumes

Downloads

High-precision SB/SBR/SE/SD planetary gearbox catalog cover

High-Precision Planetary Catalog

Economy Series planetary gearbox catalog cover

Economy Series Catalog

SAE/SAF/SBF precision economy planetary catalog cover

Precision Economy Catalog

SPG/SDPG/SRS/SAGV AGV planetary catalog cover

AGV Planetary Catalog

Datasheet

Applications

  • Robotics
  • CNC
  • Semiconductor
  • Factory automation
  • AGV/AMR

When to Choose This Model

Select this planetary series based on backlash, ratio range, and mounting requirements for your servo or stepper.

Frequently Asked Questions

What is the SBFWR SAEWR SAFWR Series used for?

The SBFWR SAEWR SAFWR Series is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.

Can you customize this model?

Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.

How do I get pricing and lead time?

Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
