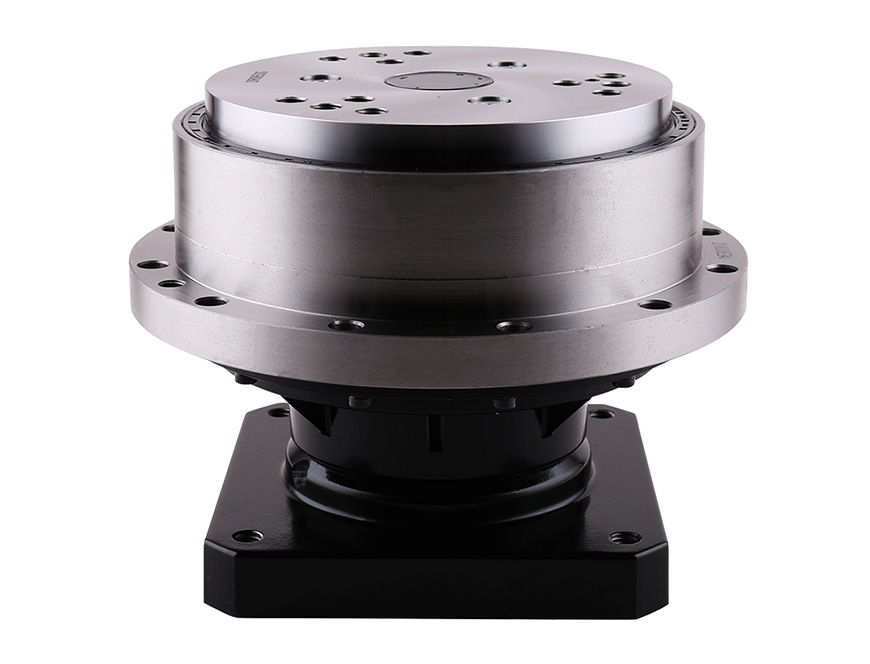

REA(With Flange) Series RV Cycloidal Pin Wheel Reducer

The REA(With Flange) Series RV Cycloidal Pin Wheel Reducer is available from Source Engineering Inc. in Santa Clara, CA for OEM rv harmonic reducers programs. Contact us for sizing, customization, samples, and volume pricing.

Request a Quote (408) 980-9822

Product Details

RV / Harmonic Reducer

Product Structure, Model and Dimension

Product Description

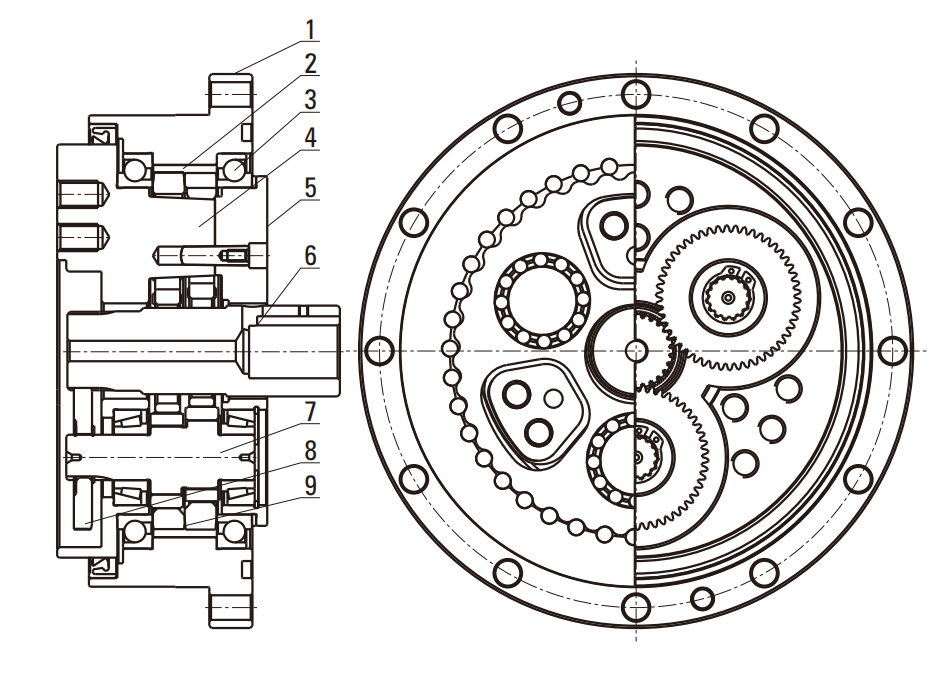

E series reducer structure

1- Needle tooth shell

2- Pin gear

3- Main bearing

4- Output flange

5- Supporting flange

6- Input shaft

7- Crankshaft

8- Planetary gear

9- Cycloidal gear

REA(With Flange) Series RV Cycloidal Pin Wheel Reducer drawing

Using Environment

In the following environmental conditions, the reducer should be able to operate normally:

—— The highest ambient temperature is changed by seasons and less than 40℃. —— The lowest ambient temperature is -10℃.

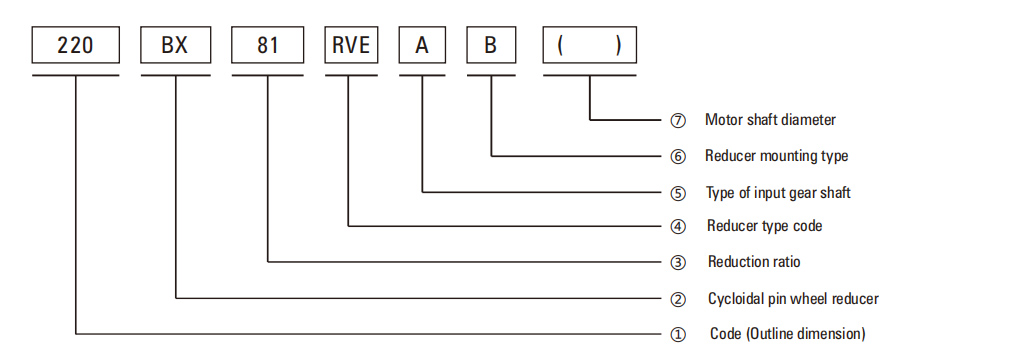

Model Number

① Code, specific see table 1

E Series
Code	0utline dimension(mm)	General model
120	Φ122	6E
150	Φ145	20E
190	Φ190	40E
220	φ222	80E
250	Φ244	110E
280	φ280	160E
320	φ325	320E

② BX: Cycloidal pin wheel reducer

③ 81: Gear ratio, specific see table 2

E Series
Code	Reduction ratio (output flange output)
120	31,43,53.5,59,79,103
150	41,57,81,105,121,141,161
190	41,57,81,105,121,153
220	57,81,101,121,153
250	81,111,161,175.28
280	81,101,129,145,171
320	81,101,118.5,129,141,171,185
Note 1: E series, such as by the shell(pin shell output, the corresponding reduction ratio by 1.

④ Reducer type code RVE: Main bearing built-in E type RVC: Hollow type REA: With input flange E type RCA: With input flange hollow type

⑤ Enter the gear shaft type and motor shaft diameter A: Standard Type A, E Series Input Gear A-axis. C Series represents the standard sun gear. B: Standard Type B, E Series Input Gear B-axis. Z: Special matching type. W: Nothing. TB: C series synchronous pulley input type.

⑥ Reducer mounting type B: Output shaft bolt fastening connection P: Output shaft bolts and locating pins with the type

⑦ Motor shaft diameter

Technical Requirement

E series output torque and efficiency

Model\Qutput Speed Project	5 r/min		15 r/min			25 r/min		30 r/min		Maximum Allowable Loss Out Speed r/min
Model\Qutput Speed Project	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Efficiency %	Output Torque N.m	Input Power Kw	Output Torque N.m	Input Power Kw	Maximum Allowable Loss Out Speed r/min
120BX	115	0.075	58.8	0.115	80	62	0.2	64	0.25	100
150BX	245	0.16	196	0.385	80	153	0.5	153	0.6	75
35BX	329	0.23	254	0.5	80	203	0.71	192	0.8	75
190BX	612	0.4	392	0.77	80	367	1.2	382	1.5	70
65BX	745	0.52	575	1.13	80	460	1.61	435	1.81	70
220BX	1146	0.75	784	1.54	80	673	2.2	637	2.5	70
250BX	1528	1.0	1078	2.12	80	978	3.2	892	3.5	50
280BX	2292	1.5	1568	3.1	80	1437	4.7	1274	5.0	45
320BX	4584	3.0	3136	6.2	80	2903	9.5	2802	11.0	35

Note 1: The rated torque is the output torque of the output speed of 15 r/min. The input power considers the efficiency of the reducer

Note 2: Torque calculation formula: T=9549XPXη/N （T: Nm, P: Kw, N: r/min, η: % )。T=9549XPXη/N (T: Torque Nm, P: Power Kw, N: Speed r/min, η: Efficiency %)

Transmission Precision, Torsional Stiffness, Backlash And Backlash

* The torsional stiffness, backlash and backlash of the gear reducer shall meet the requirements of table 5 and table 6.

* The transmission accuracy of gear reducer shall conform to the requirements of table 5 and table 6.

Life

* When the reducer is working on rated speed and on-loading, reducer ‘s lift time is more than 6000 hours.

Allowable Torque (Bending Torque)

* The instant allowable torque is generally twice the allowable torque of the reducer.

* The allowable torque of the gear reducer shall meet to the requirements of table 5 and table 6.

Overload

* After reducer working under over-load for 5min with 125% rated torque, dudring the running, it have no noise and other damage.

Reducer Technical Parameters See

Model\Project	Ratio Value		Allowable Moment N.m	Torsional Rigidity N.m/(Arc.min)	Stat And Stop Allowing Output Torque (N.m)	Instantaneous Maximum Torque N.m	Transmission Accuracy Arc.min	Backlash Of Backlash Arc.min	Life h	Moment of inertia Input axis conversion value(kg-m²)	Weight kg
Model\Project	Axis Output	Shell Output	Allowable Moment N.m	Torsional Rigidity N.m/(Arc.min)	Stat And Stop Allowing Output Torque (N.m)	Instantaneous Maximum Torque N.m	Transmission Accuracy Arc.min	Backlash Of Backlash Arc.min	Life h	Moment of inertia Input axis conversion value(kg-m²)	Weight kg
120BX	53.50	52.50	196	20	117	294	1.5	1.5	6000	1.53X10-6	2.50
	59.00	58.00								1.39X10-6
	79.00	78.00								1.09X10-6
	103.0	102.0								0.74X10-6
150BX	81.00	80.00	880	49	412	820	1.0	1.0	6000	6.07X10-6	4.70
	105.0	104.0								4.32X10-6
	121.0	120.0								3.56X10-6
	141.0	140.0								2.88X10-6
	1610	160.0								2.39X10-6
35BX	81.00	80.00	1103	73	530	1190	1.0	1.0	6000	6.07X10-6	4.6
	105.0	104.0								4.32X10-6
	1210	120.0								3.56X10-6
	141.0	140.0								2.88X10-6
	161.0	1600								2.39X10-6
190BX	81.00	80.00	1600	108	1029	2000	1.0	1.0	6000	2.20X10-5	9.30
	105.0	104.0								1.63X10-5
	121.0	120.0								1.37X10-5
	153.0	152.0								1.01X10-5
65BX	81.00	80.00	1916	162	1380	2690	1.0	1.0	6000	2.20X10-5	9.50
	105.0	104.0								1.63X10-5
	121.0	120.0								1.37X10-5
	153.0	152.0								1.01X10-5
220BX	81.00	80.00	2000	196	1960	3600	1.0	1.0	6000	6.00X10-5	13.1
	101.0	100.0								4.82X10-5
	121.0	120.0								3.96X10-5
	153.0	152.0								2.98X10-5
250BX	81.00	80.00	2900	294	2695	5380	1.0	1.0	6000	9.88X10-5	17.4
	111.0	110.0								6.96X10-5
	161.0	160.0								4.36X10-5
	175.28	174.28								3.89X10-5
280BX	81.00	80.00	3900	392	3920	7800	1.0	1.0	6000	1.77X10-4	26.4
	101.0	1000								1.40X10-4
	129.0	128.0								1.06X10-4
	145.0	144.0								0.87X10-4
	171.0	170.0								0.74X10-4
320BX	81.00	80.00	7000	980	7840	15600	1.0	1.0	6000	4.83X10-4	44.3
	101.0	100.0								3.79X10-4
	118.5	117.5								3.15X10-4
	129.0	128.0								2.84X10-4
	141.0	140.0								2.54X10-4
	171.0	170.0								1.97X10-4
	185.0	184.0								1.77X10-4

Lubrication

* The lubrication grease is not filled before gearbox leave factory. Please fill in the suggested lubrication grease during assembly, the amount is roughly 70~90% of the gearbox inside cavity volume

* Lubricating grease is generally replaced in 2000 hours. When the grease is contaminated or is used in harsh environments, it is necessary to check the condition of aging and pollution and to change the time

* Reducer using lubricating oil: Molywhite RE-00 or VIGO-grease REO other similar grade precision reducer special grease

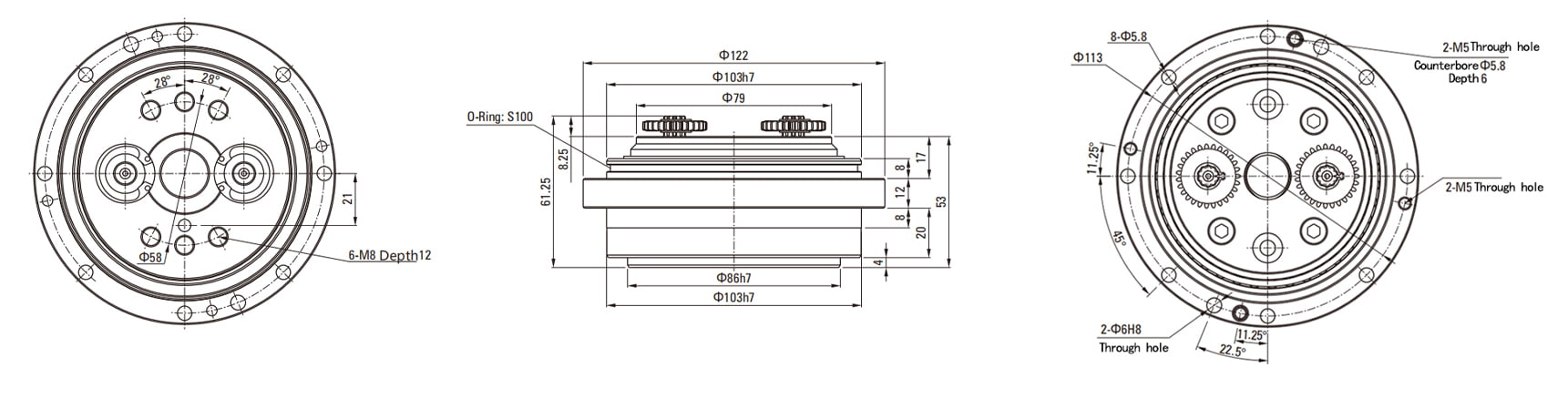

RVE Series - Outline Dimension Drawing

REA Series – Outline Dimension Drawing

120BX-REA2 Outline Drawing

Type Motor	M41	M42
C	50	50
D	11/14	11/14
E	8	8
F	60	60
H	34	34
L	113.7	113.7
M	M4	M5
P	70	70

Note: 1. This figure applies to the motor shaft: <=14; motor shaft lock use locker. 2. Speed reduction ratio: (31,43,53.5,59,79,103): 1 (shaft output). 3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE). 4. Rated output torque: 58N.m (output speed: 15R/Min). 5. Motor mounting flange according to motor model.

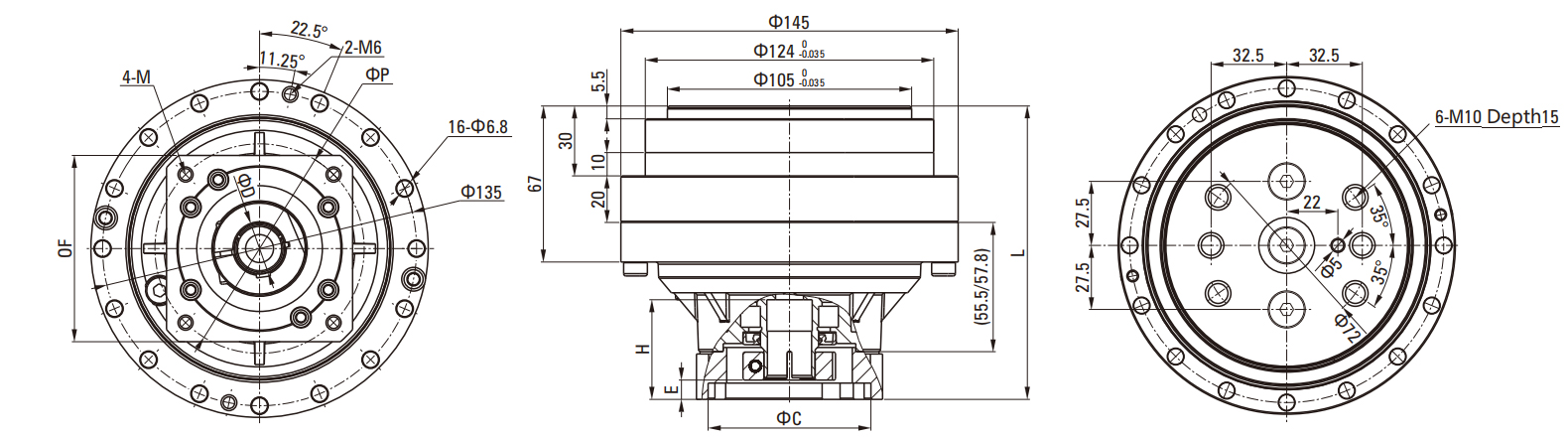

150BX-REA2 Outline Drawing

Type Motor	M59A	M59B	M51	M52	M53	M51	M52	M53
C	50	50	70	70	80	70	70	80
D	14	14	19	19	19	19	19	19
E	5	5	8	8	8	8	8	8
F	80	80	80	80	90	80	80	90
H	35	35	45	45	45	42	42	42
K			6	6	6	Keyless type	Keyless type	Keyless type
L	123	123	128.3	128.3	128.3	126	126	126
L(41,57K)	113	113				116	116	116
M	M4	M5	M5	M6	M6	M5	M6	M6
P	70	70	90	90	100	90	90	100

Note:

1. This figure applies to the motor shaft: <=19x40L; motor shaft lock use locker.

2. Speed reduction ratio: (41,57,81,105,121,141,161): 1 (shaft output).

3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE).

4. Rated output torque: 196N.m (output speed: 15R/Min).

5. Motor mounting flange according to motor model.

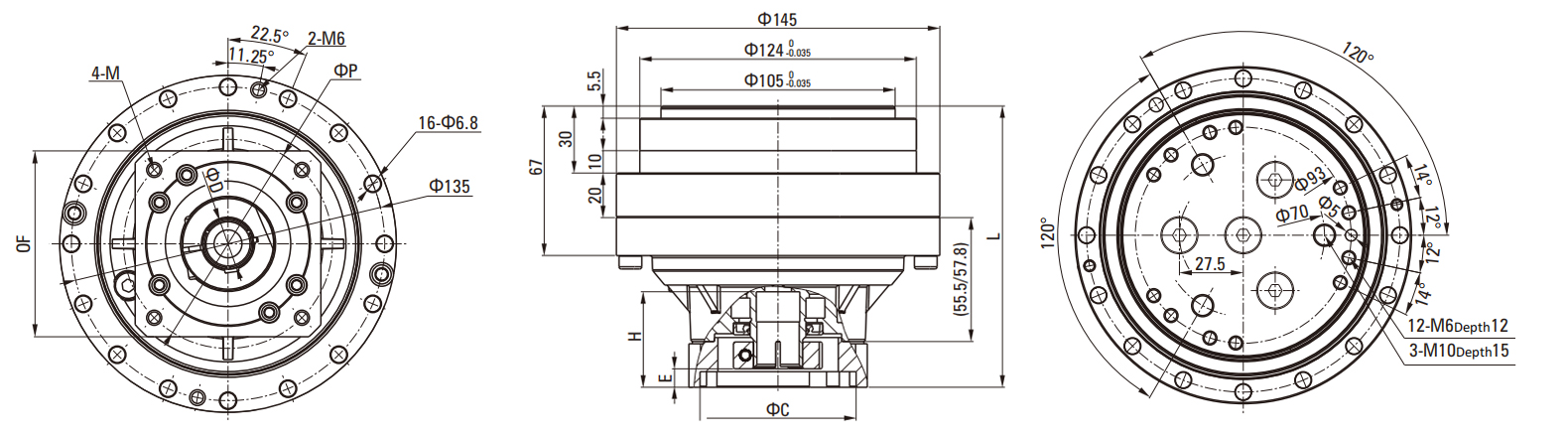

35BX-REA2 Outline Drawing

Type Motor	M59A	M59B	M51	M52	M53	M51	M52	M53
C	50	50	70	70	80	70	70	80
D	14	14	19	19	19	19	19	19
E	5	5	8	8	8	8	8	8
F	80	80	80	80	90	80	80	90
H	35	35	45	45	45	42	42	42
K			6	6	6	Keyless type	Keyless type	Keyless type
L	123	123	128.3	128.3	128.3	126	126	126
L(41,57K)	113	113				116	116	116
M	M4	M5	M5	M6	M6	M5	M6	M6
P	70	70	90	90	100	90	90	100

Note:

1. This figure applies to the motor shaft: <=19x40L.

4. Rated output torque: 254N.m (output speed: 15R/Min).

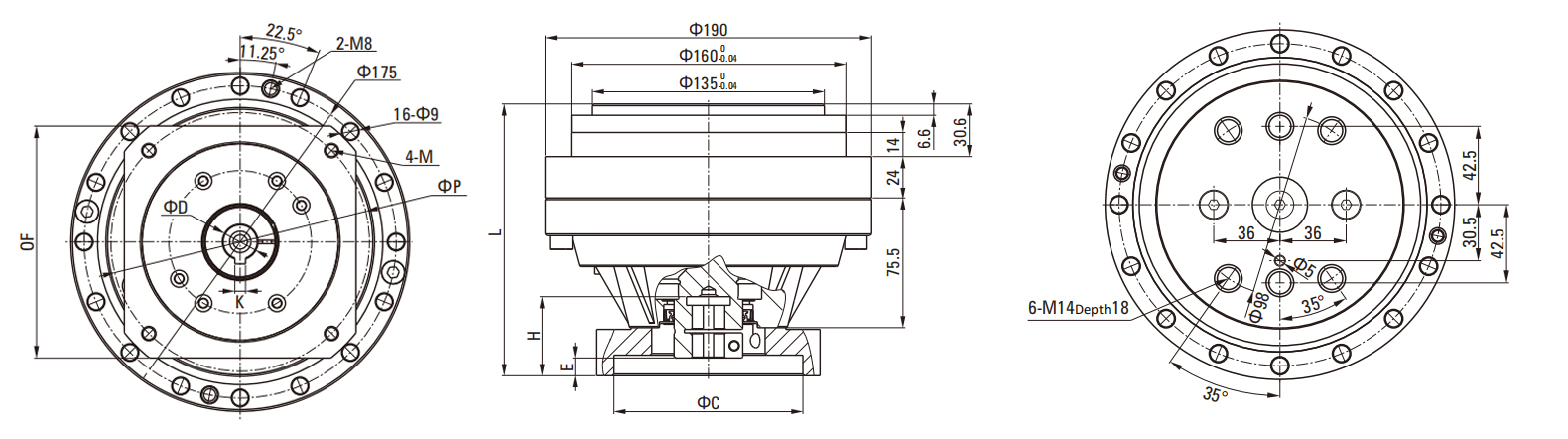

190BX-REA2 Outline Drawing

Type Motor	M59A	M59B	M72	M73	M74	M75	M77	M78
C	50	50	110	95	95	95	80	70
D	14	14	19/22	19	19/22	19/22	19	19
E	8	8	20	7	7	10	10	8
F	80	80	130	100	100	110	90	80
H	35	35	58	48	48	52	40	40
K			6/8	6	6/8	6/8	6	6
L	147.6	147.6	170.1	162.1	162.1	165.1	158.1	156.1
L(41,57K)	147.6	147.6	165.1	155.1	155.1	158.1	150.1(M51/52/53)
M	M4	M5	M8	M6	M8	M8	M6	M6
P	70	70	145	115	115	130	100	90

Note:

1. This figure applies to the motor shaft: <=24; motor shaft lock use locker.

2. Speed reduction ratio: (41,57,81,105,121,153): 1 (shaft output).

4. Rated output torque: 392N.m (output speed: 15R/Min)

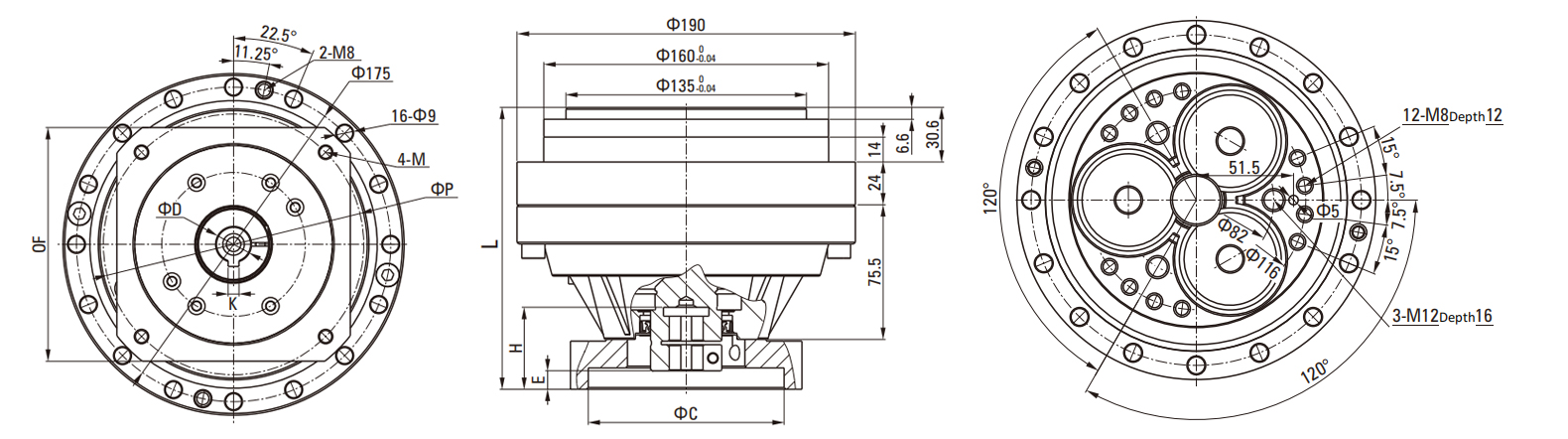

65BX-REA Outline Drawing

Type Motor	M59A	M59B	M72	M73	M74	M75	M77	M78
C	50	50	110	95	95	95	80	70
D	14	14	19/22	19	19/22	19/22	19	19
E	8	8	20	7	7	10	10	8
F	80	80	130	100	100	110	90	80
H	35	35	58	48	48	52	40	40
K	–	–	6/8	6	6/8	6/8	6	6
L	147.6	147.6	170.1	162.1	162.1	165.1	158.1	156.1
L(41,57K)	147.6	147.6	165.1	155.1	155.1	158.1	150.1(M51/52/53)
M	M4	M5	M8	M6	M8	M8	M6	M6
P	70	70	145	115	115	130	100	90

Note:

1. This figure applies to the motor shaft: <=24; motor shaft lock use locker. 2. Speed reduction ratio: (41,57,81,105,121,153): 1 (shaft output). 3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE). 4. Rated output torque: 575N.m (output speed: 15R/Min). 5. Motor mounting flange according to motor model.

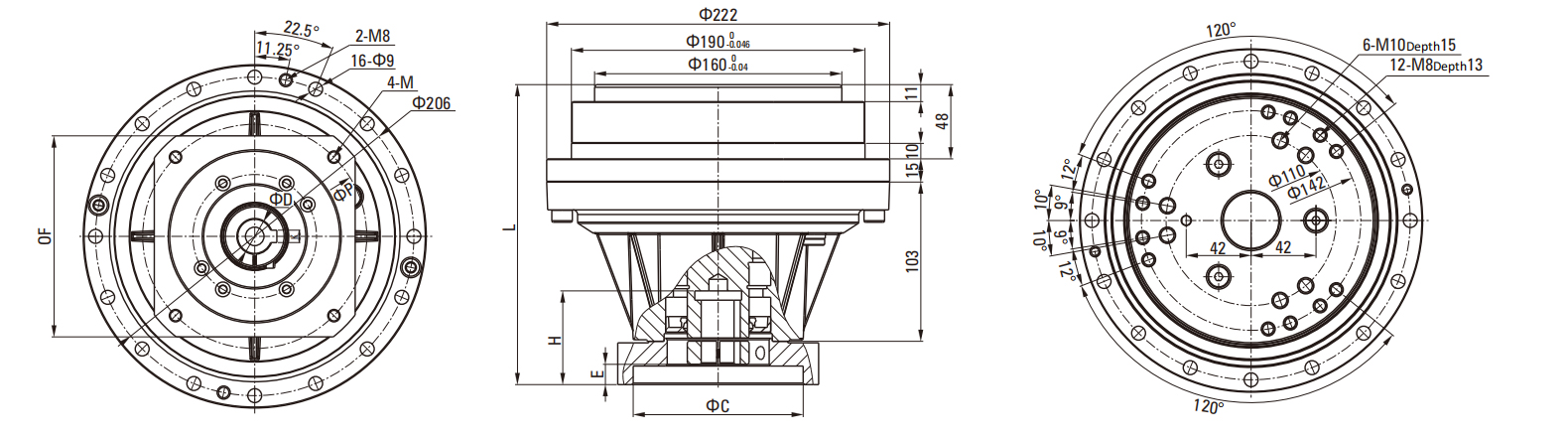

220BX-REA2 Outline Drawing

Type Motor	M71	M73	M74	M75	M76	M77	M78	M81
C	110	95	95	95	130	80	70	114.3
D	19/22/24	19	19/22	19/22/24	19/22	19	19	28/35
E	13	10	10	13	13	10	11	27.5
F	130	100	100	110	142	90	80	175
H	60	57	57	60	60	60	58	82
K	6/8	6	6/8	6/8	6/8	6	6	8/10
L	194	191	191	194	194	194	192	208
M	M8	M6	M8	M8	M10	M6	M6	M8
P	145	115	115	130	165	100	90	200

Note:

1. This figure applies to the motor shaft: <=24x70L; motor shaft lock use locker.

2. Speed reduction ratio: (57,81,101,121,153): 1 (shaft output).

4. Rated output torque: 784N.m (output speed: 15R/Min)

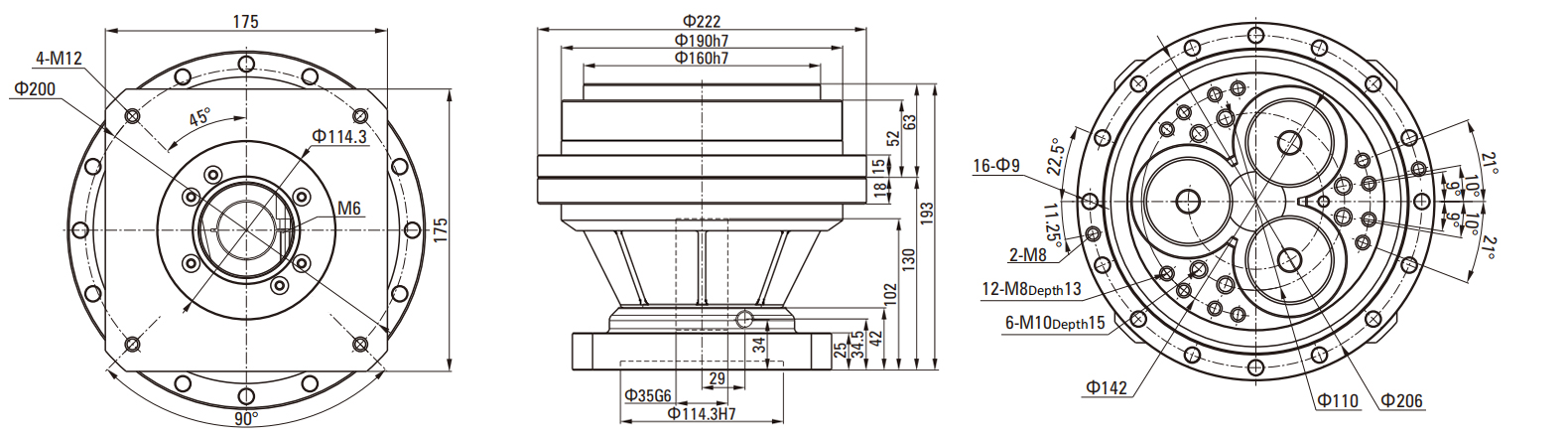

220BX-REA-35 Outline Drawing

Note:

1. This figure applies to the motor shaft: <=35x80L; motor shaft lock use locker. 2. Speed reduction ratio: (57,81,101,121,153): 1 (shaft output). 3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE). 4. Rated output torque: 784N.m (output speed: 15R/Min); Allowable moment 1700Nm, allowable thrust 7400N. 5. Motor mounting flange according to motor model.

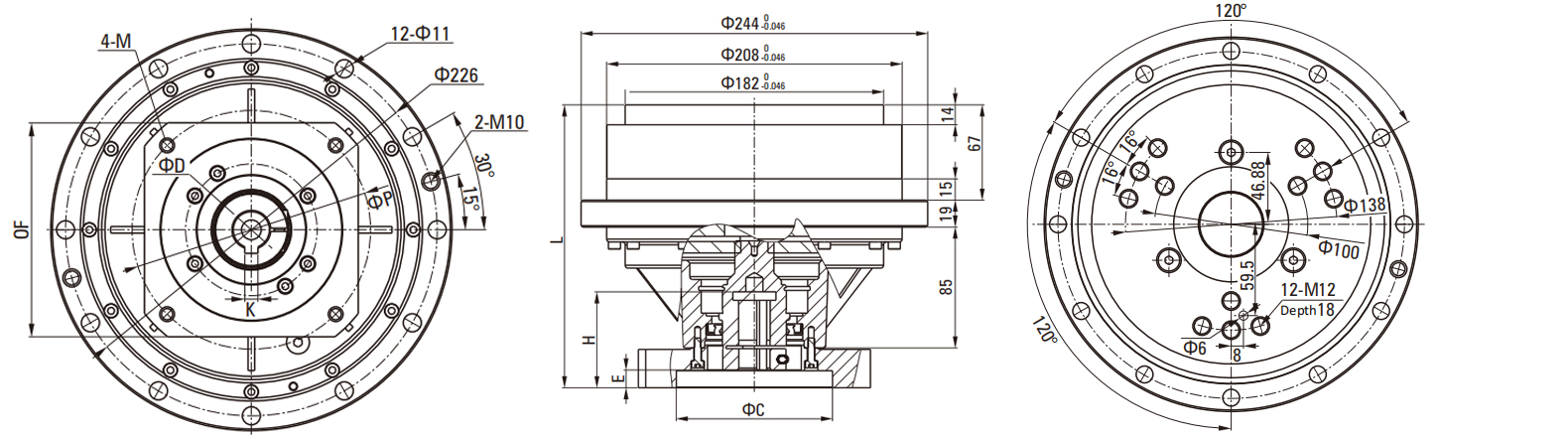

250BX-REA2 Outline Drawing

Type Motor	M71	M73	M74	M75	M76	M91
C	110	95	95	95	130	114.3
D	22/24	22	22	22/24	22	28/35
E	12.5	9.5	9.5	12.5	12.5	27
F	130	100	100	110	142	175
H	66	57	57	60	60	82
K	6/8	6	6/8	6/8	6/8	8/10
L	199	196	196	199	199	213
M	M8	M6	M8	M8	M10	M12
P	145	115	115	130	165	200

Note:

1. This figure applies to the motor shaft: <=35x80L; motor shaft lock use locker. 2. Speed reduction ratio: (81,111,161,175.28): 1 (shaft output). 3. Lubricants: VIGO GREASE RE0 or RE-00 (MOLYWHITE). 4. Rated output torque: 1078N.m (output speed: 15R/Min). 5. Motor mounting flange according to motor model.

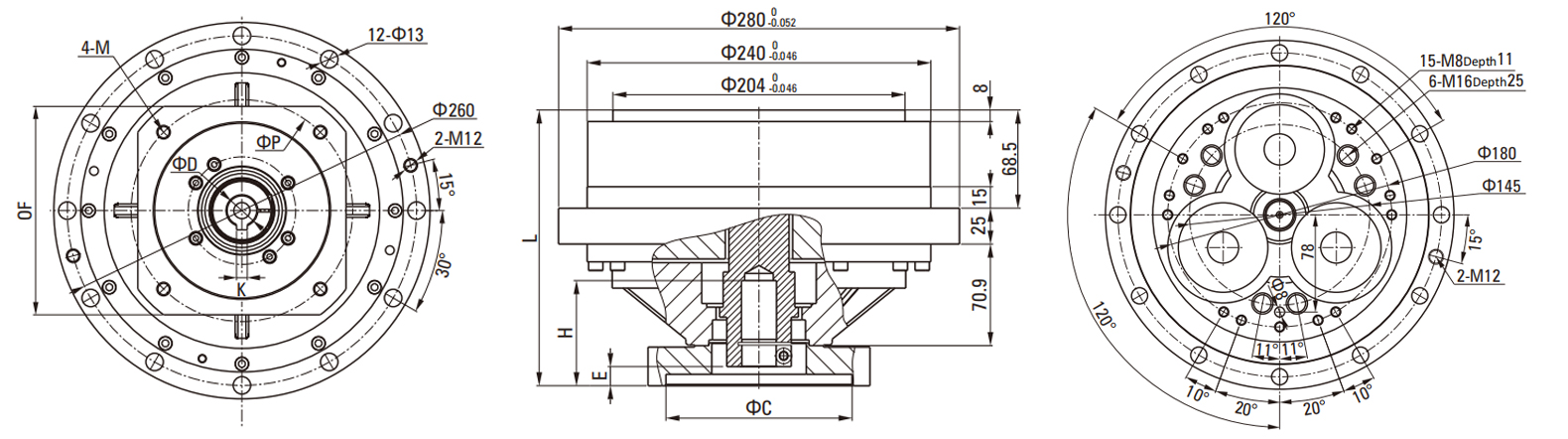

280BX-REA Outline Drawing

Type Motor	M71	M73	M74	M75	M76	M91
C	110	95	95	95	130	114.3
D	22/24	22	22	22/24	22	28/35
E	13.4	10.4	10.4	13.4	13.4	27
F	130	100	100	110	142	175
H	70	65	57	60	60	82
K	6/8	6	6/8	6/8	6/8	8/10
L	192.4	189.4	189.4	192.4	192.4	206.4
M	M8	M6	M8	M8	M10	M12
P	145	115	115	130	165	200

Note:

1. This figure applies to the motor shaft: <=35x70L; Motor shaft is locked by locker

2. Speed reduction ratio: (81,101,129,145,171): 1 (shaft output)

4. Rated output torque: 1568N.m (output speed: 15R/Min)

5. The motor mounting flange is supplied according to the motor type

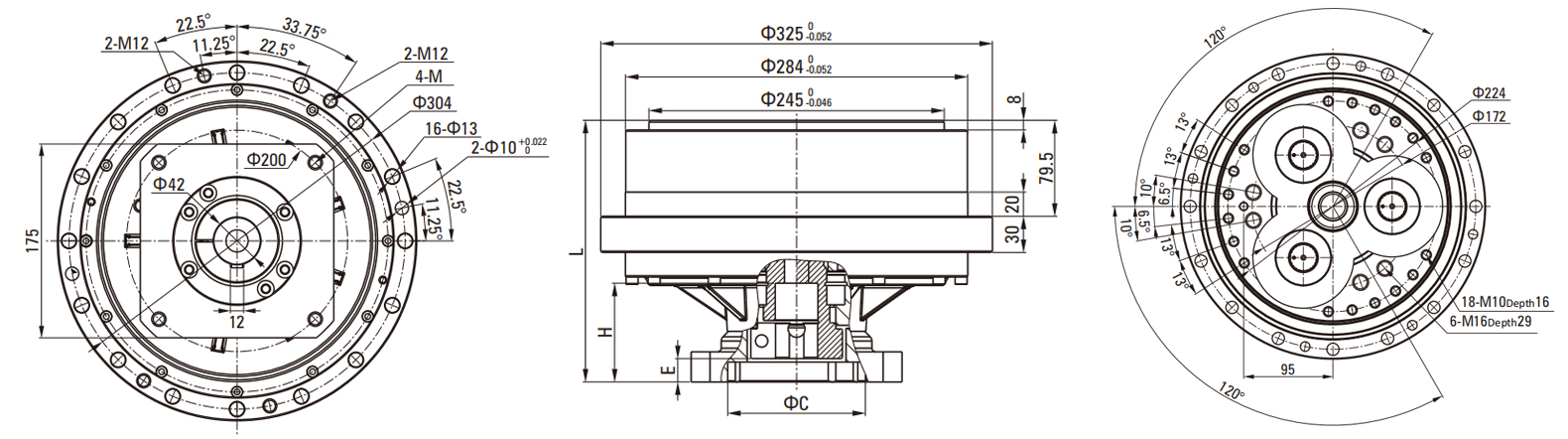

320BX-REA Outline Drawing

Type Motor	M91	M92	M91
C	114.3	180	114.3
D	35	35	42
E	19	19	48.5
F	175	200	175
H	81	81	116
K	10	10	12
L	216.9	216.9	248.4
M	M12	M12	M12
P	200	215	200

Note:

1. This figure applies to the motor shaft: <=42x114L; motor shaft lock use locker

2. Speed reduction ratio: (81,101,118.5,129,141,171,185): 1 (shaft output)

4. Rated output torque: 3136N.m (output speed: 15R/Min)

Configuration Options

Custom output shafts, input gears, and motor mounting flanges on request
Prototype samples through production volumes

Applications

Robot arms
Precision positioners
Machine tools
Aerospace mechanisms

When to Choose This Model

Choose harmonic or cycloidal reducers for high reduction ratios with compact size and high torsional stiffness.

Frequently Asked Questions

What is the REA(With Flange) Series RV Cycloidal Pin Wheel Reducer used for?

The REA(With Flange) Series RV Cycloidal Pin Wheel Reducer is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.

Can you customize this model?

Yes. Output shafts, ratios, input gears, and motor mounting interfaces can be customized for OEM programs.

How do I get pricing and lead time?

Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
