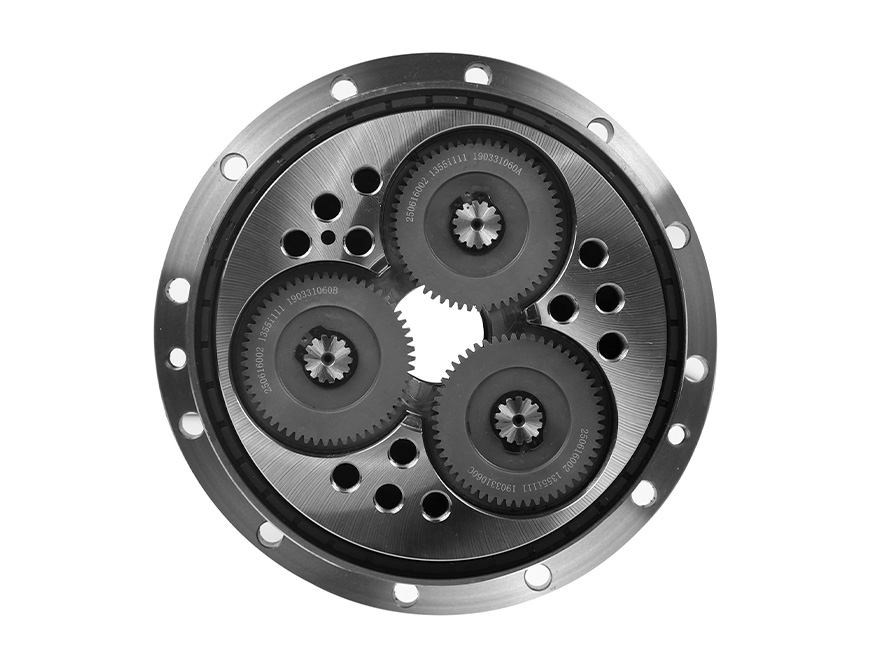

RVE Series RV Cycloidal Pin Wheel Reducer

The RVE Series RV Cycloidal Pin Wheel Reducer is available from Source Engineering Inc. in Santa Clara, CA for OEM rv harmonic reducers programs. Contact us for sizing, customization, samples, and volume pricing.

RVE Series RV Cycloidal Pin Wheel Reducer

RVE Series RV Cycloidal Pin Wheel Reducer

Product Details

RV / Harmonic Reducer

Product Structure, Model and Dimension

Product Description

E series reducer structure

1- Needle tooth shell

2- Pin gear

3- Main bearing

4- Output flange

5- Supporting flange

6- Input shaft

7- Crankshaft

8- Planetary gear

9- Cycloidal gear

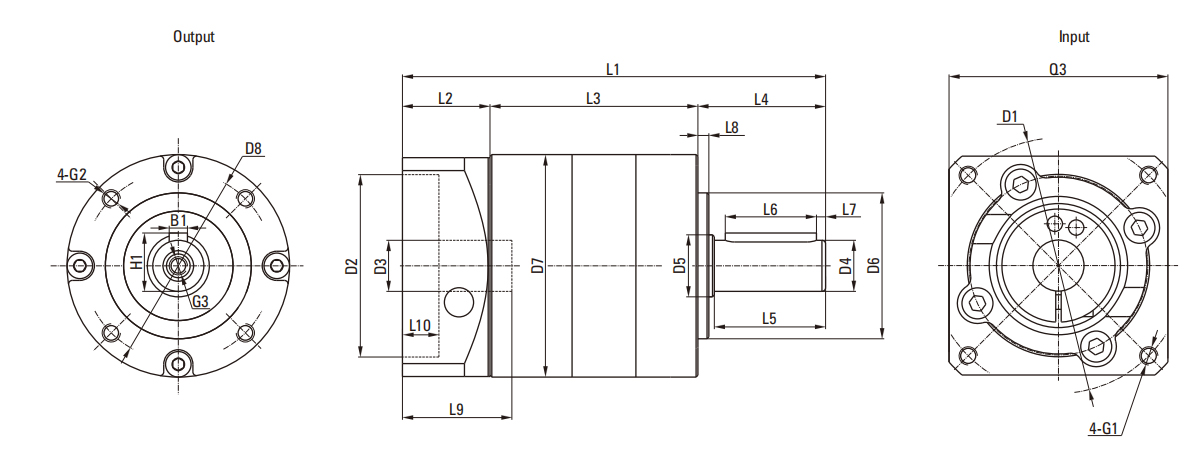

RVE Series RV Cycloidal Pin Wheel Reducer drawing

Using Environment

In the following environmental conditions, the reducer should be able to operate normally:

—— The highest ambient temperature is changed by seasons and less than 40℃. —— The lowest ambient temperature is -10℃.

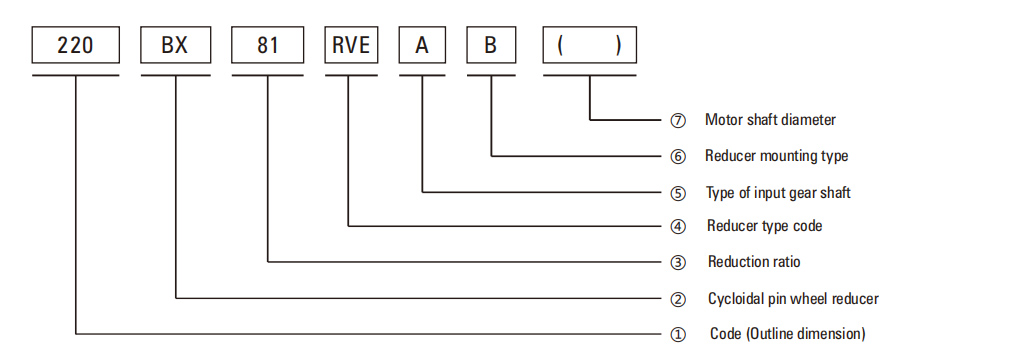

Model Number

RVE Series RV Cycloidal Pin Wheel Reducer drawing

① Code, specific see table 1

E Series
Code0utline dimension(mm)General model
120Φ1226E
150Φ14520E
190Φ19040E
220φ22280E
250Φ244110E
280φ280160E
320φ325320E

② BX: Cycloidal pin wheel reducer

③ 81: Gear ratio, specific see table 2

E Series
CodeReduction ratio (output flange output)
12031,43,53.5,59,79,103
15041,57,81,105,121,141,161
19041,57,81,105,121,153
22057,81,101,121,153
25081,111,161,175.28
28081,101,129,145,171
32081,101,118.5,129,141,171,185
Note 1: E series, such as by the shell(pin shell output, the corresponding reduction ratio by 1.

④ Reducer type code RVE: Main bearing built-in E type RVC: Hollow type REA: With input flange E type RCA: With input flange hollow type

⑤ Enter the gear shaft type and motor shaft diameter A: Standard Type A, E Series Input Gear A-axis. C Series represents the standard sun gear. B: Standard Type B, E Series Input Gear B-axis. Z: Special matching type. W: Nothing. TB: C series synchronous pulley input type.

⑥ Reducer mounting type B: Output shaft bolt fastening connection P: Output shaft bolts and locating pins with the type

⑦ Motor shaft diameter

Technical Requirement

E series output torque and efficiency

Model\Qutput Speed Project5 r/min15 r/min25 r/min30 r/minMaximum Allowable Loss Out Speed r/min
Output Torque N.mInput Power KwOutput Torque N.mInput Power KwEfficiency %Output Torque N.mInput Power KwOutput Torque N.mInput Power Kw
120BX1150.07558.80.11580620.2640.25100
150BX2450.161960.385801530.51530.675
35BX3290.232540.5802030.711920.875
190BX6120.43920.77803671.23821.570
65BX7450.525751.13804601.614351.8170
220BX11460.757841.54806732.26372.570
250BX15281.010782.12809783.28923.550
280BX22921.515683.18014374.712745.045
320BX45843.031366.28029039.5280211.035

Note 1: The rated torque is the output torque of the output speed of 15 r/min. The input power considers the efficiency of the reducer

Note 2: Torque calculation formula: T=9549XPXη/N (T: Nm, P: Kw, N: r/min, η: % )。T=9549XPXη/N (T: Torque Nm, P: Power Kw, N: Speed r/min, η: Efficiency %)

Transmission Precision, Torsional Stiffness, Backlash And Backlash

* The torsional stiffness, backlash and backlash of the gear reducer shall meet the requirements of table 5 and table 6.

* The transmission accuracy of gear reducer shall conform to the requirements of table 5 and table 6.

Life

* When the reducer is working on rated speed and on-loading, reducer ‘s lift time is more than 6000 hours.

Allowable Torque (Bending Torque)

* The instant allowable torque is generally twice the allowable torque of the reducer.

* The allowable torque of the gear reducer shall meet to the requirements of table 5 and table 6.

Overload

* After reducer working under over-load for 5min with 125% rated torque, dudring the running, it have no noise and other damage.

Reducer Technical Parameters See

Model\ProjectRatio ValueAllowable Moment N.mTorsional Rigidity N.m/(Arc.min)Stat And Stop Allowing Output Torque (N.m)Instantaneous Maximum Torque N.mTransmission Accuracy Arc.minBacklash Of Backlash Arc.minLife hMoment of inertia Input axis conversion value(kg-m²)Weight kg
Axis OutputShell Output
120BX53.5052.50196201172941.51.560001.53X10-62.50
59.0058.001.39X10-6
79.0078.001.09X10-6
103.0102.00.74X10-6
150BX81.0080.00880494128201.01.060006.07X10-64.70
105.0104.04.32X10-6
121.0120.03.56X10-6
141.0140.02.88X10-6
1610160.02.39X10-6
35BX81.0080.0011037353011901.01.060006.07X10-64.6
105.0104.04.32X10-6
1210120.03.56X10-6
141.0140.02.88X10-6
161.016002.39X10-6
190BX81.0080.001600108102920001.01.060002.20X10-59.30
105.0104.01.63X10-5
121.0120.01.37X10-5
153.0152.01.01X10-5
65BX81.0080.001916162138026901.01.060002.20X10-59.50
105.0104.01.63X10-5
121.0120.01.37X10-5
153.0152.01.01X10-5
220BX81.0080.002000196196036001.01.060006.00X10-513.1
101.0100.04.82X10-5
121.0120.03.96X10-5
153.0152.02.98X10-5
250BX81.0080.002900294269553801.01.060009.88X10-517.4
111.0110.06.96X10-5
161.0160.04.36X10-5
175.28174.283.89X10-5
280BX81.0080.003900392392078001.01.060001.77X10-426.4
101.010001.40X10-4
129.0128.01.06X10-4
145.0144.00.87X10-4
171.0170.00.74X10-4
320BX81.0080.0070009807840156001.01.060004.83X10-444.3
101.0100.03.79X10-4
118.5117.53.15X10-4
129.0128.02.84X10-4
141.0140.02.54X10-4
171.0170.01.97X10-4
185.0184.01.77X10-4

Lubrication * The lubrication grease is not filled before gearbox leave factory. Please fill in the suggested lubrication grease during assembly, the amount is roughly 70~90% of the gearbox inside cavity volume

* Lubricating grease is generally replaced in 2000 hours. When the grease is contaminated or is used in harsh environments, it is necessary to check the condition of aging and pollution and to change the time

* Reducer using lubricating oil: Molywhite RE-00 or VIGO-grease REO other similar grade precision reducer special grease

RVC Series - Outline Dimension Drawing

  • RVE Series – Outline Dimension Drawing

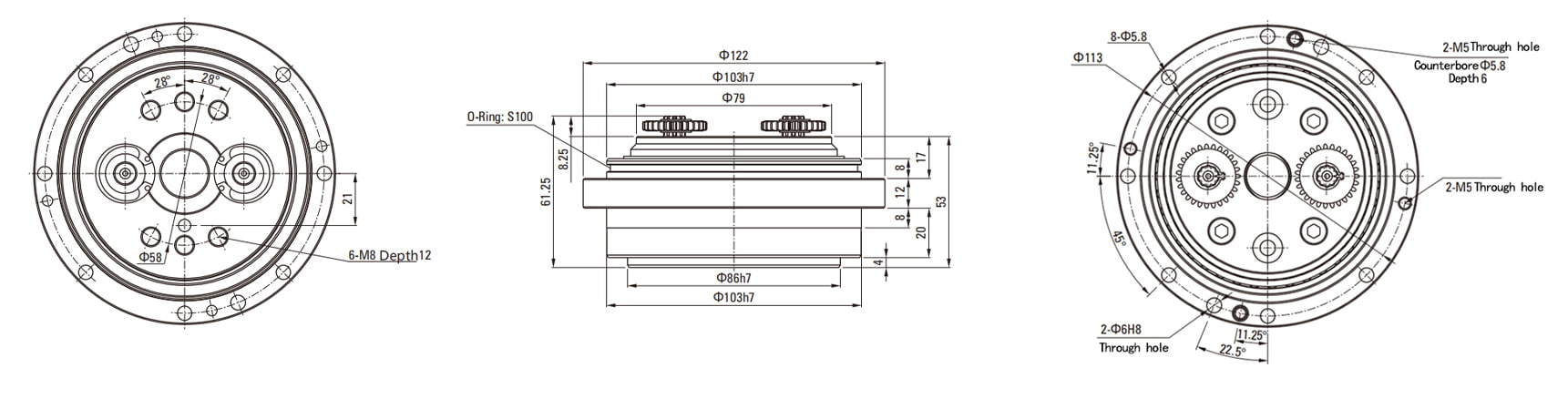

120BX-RVE Outline Drawing

RVE Series RV Cycloidal Pin Wheel Reducer drawing

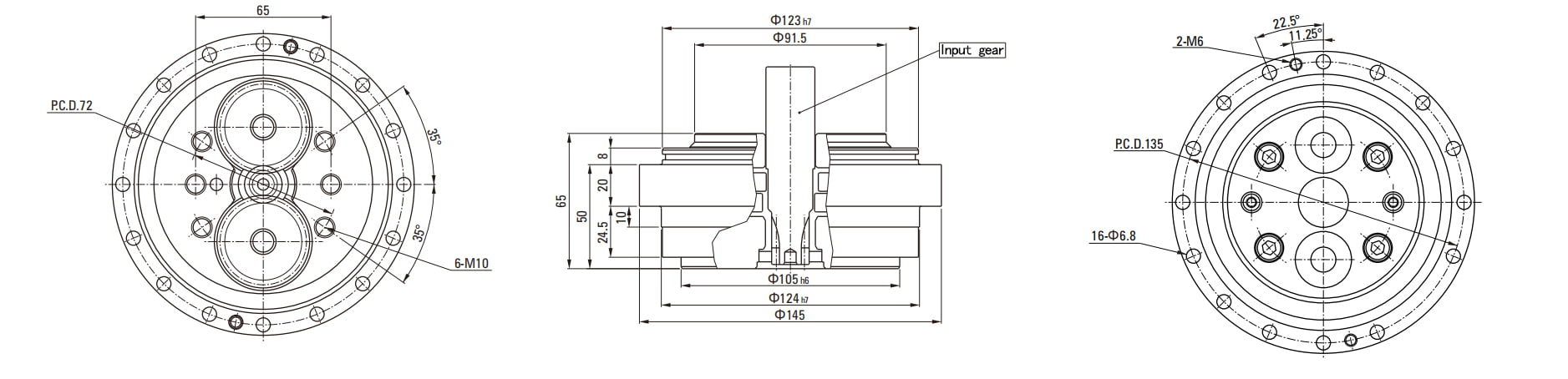

150BX-RVE Outline Drawing

RVE Series RV Cycloidal Pin Wheel Reducer drawing

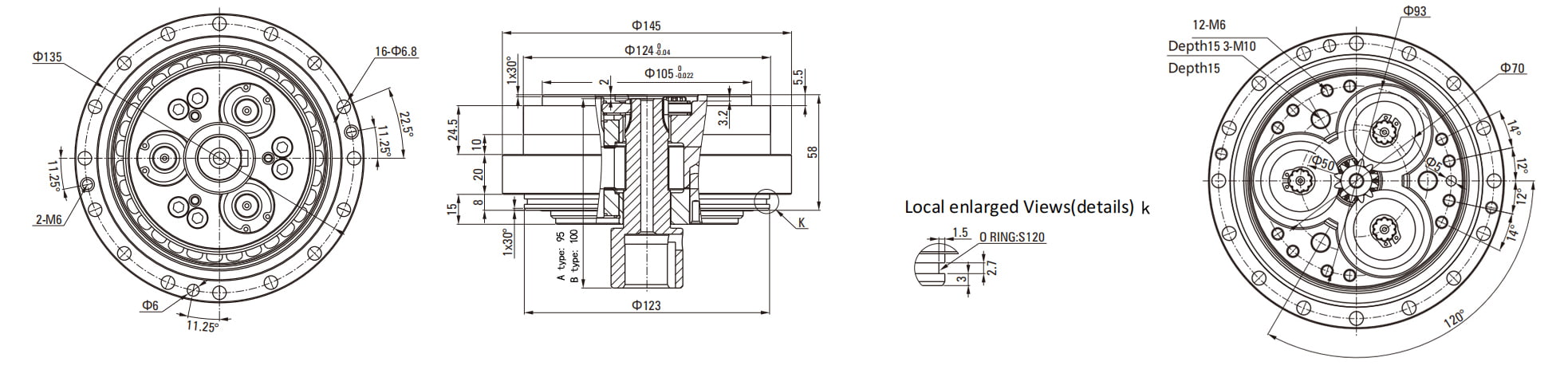

35BX-RVE Outline Drawing

RVE Series RV Cycloidal Pin Wheel Reducer drawing

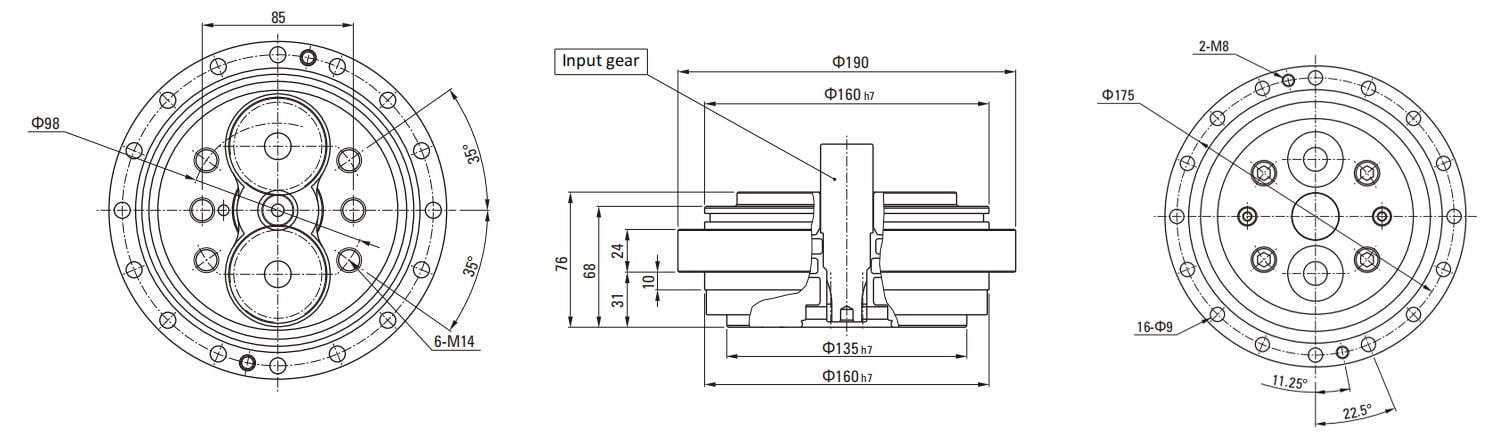

190BX-RVE Outline Drawing

RVE Series RV Cycloidal Pin Wheel Reducer drawing

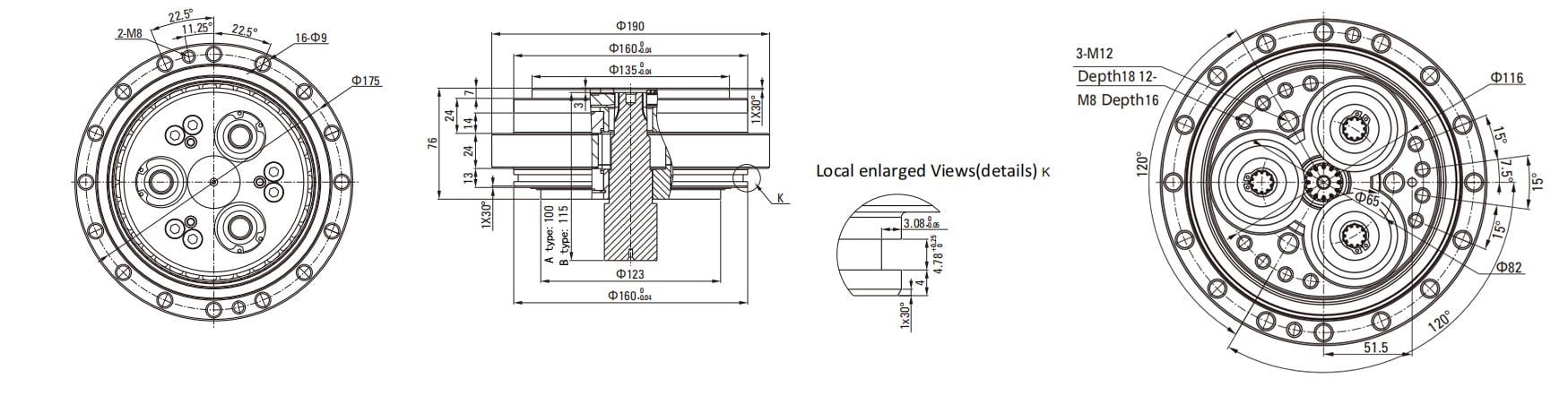

65BX-RVE Outline Drawing

RVE Series RV Cycloidal Pin Wheel Reducer drawing

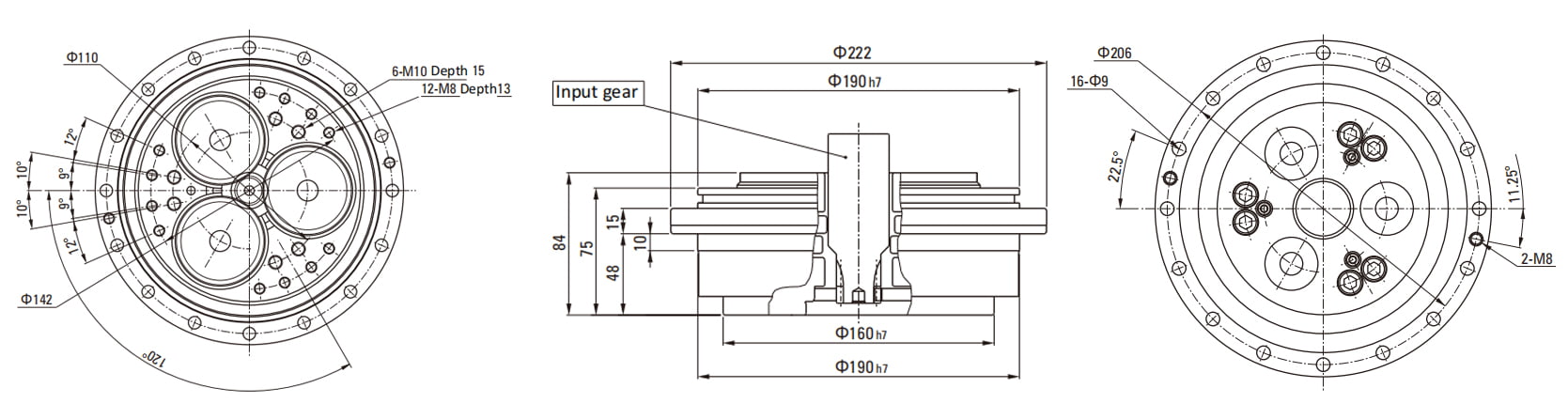

220BX-RVE Outline Drawing

RVE Series RV Cycloidal Pin Wheel Reducer drawing

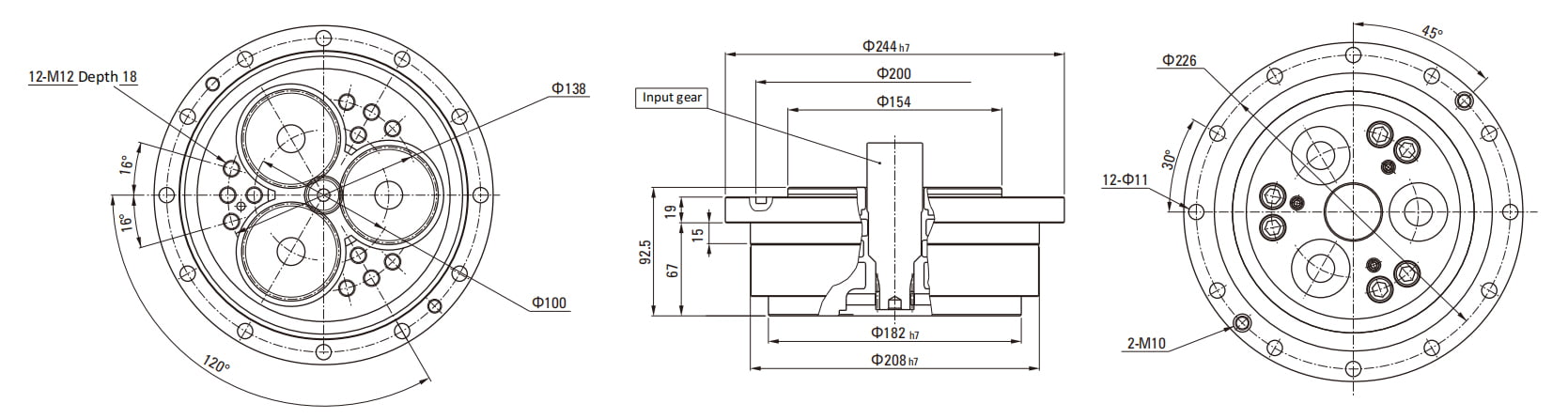

250BX-RVE Outline Drawing

RVE Series RV Cycloidal Pin Wheel Reducer drawing

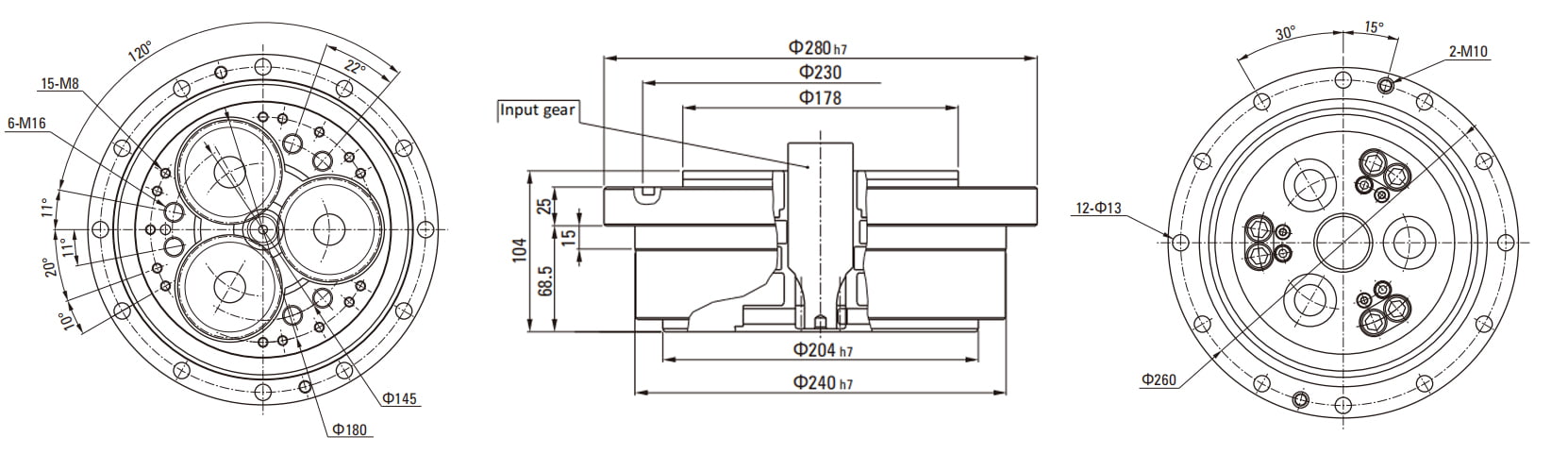

280BX-RVE Outline Drawing

RVE Series RV Cycloidal Pin Wheel Reducer drawing

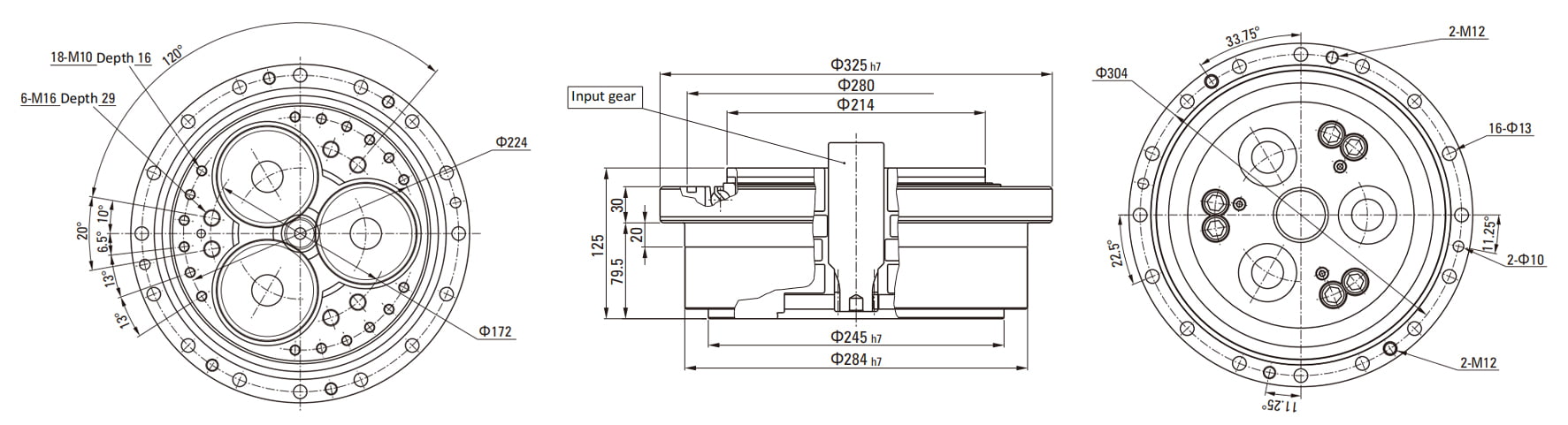

320BX-RVE Outline Drawing

RVE Series RV Cycloidal Pin Wheel Reducer drawing

Configuration Options

  • Custom output shafts, input gears, and motor mounting flanges on request
  • Prototype samples through production volumes

Applications

  • Robot arms
  • Precision positioners
  • Machine tools
  • Aerospace mechanisms

When to Choose This Model

Choose harmonic or cycloidal reducers for high reduction ratios with compact size and high torsional stiffness.

Frequently Asked Questions

What is the RVE Series RV Cycloidal Pin Wheel Reducer used for?

The RVE Series RV Cycloidal Pin Wheel Reducer is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.

Can you customize this model?

Yes. Output shafts, ratios, input gears, and motor mounting interfaces can be customized for OEM programs.

How do I get pricing and lead time?

Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
