Planetary GearboxesROTATING

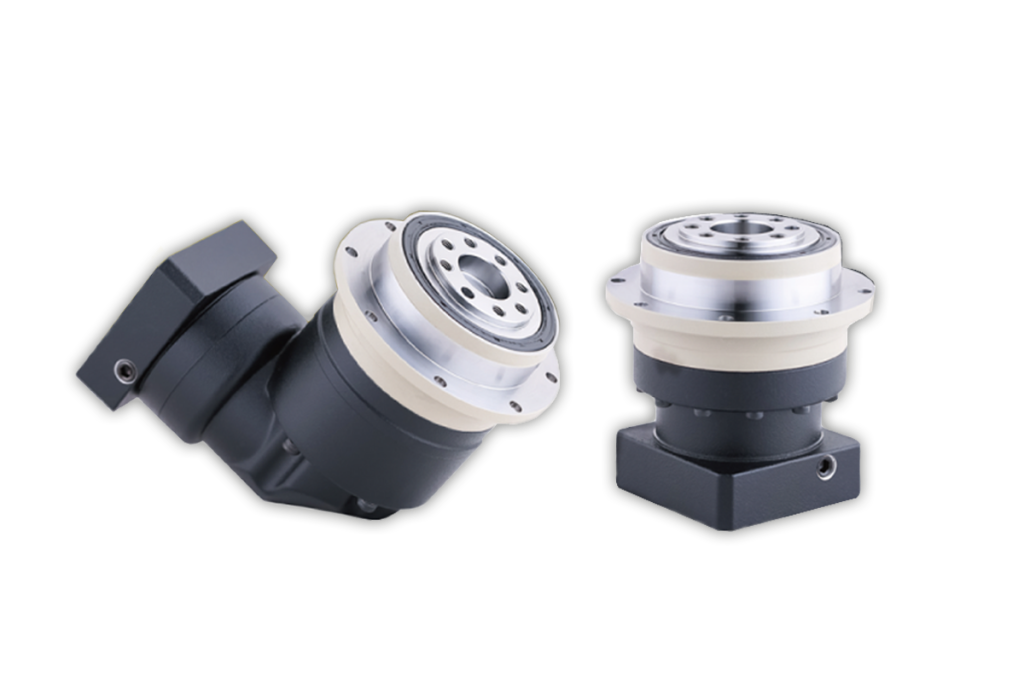

Rotating Series
The Rotating Series is available from Source Engineering Inc. in Santa Clara, CA for OEM planetary gearboxes programs. Contact us for sizing, customization, samples, and volume pricing.
HIGH PRECISION COMPACT PLANETARY GEARBOX
Models & Series
HIGH PRECISION COMPACT PLANETARY GEARBOX
Key features
- Low cost: Half the cost of other manufactures without sacrificing Quality or Precision.
- Helical cut gears: Smooth and quiet operation
- Low backlash:
- 1 stage : ≤1 arcmin / ≤3 arcmin / ≤5 arcmin
- 2 stage: ≤3 arcmin / ≤5 arcmin / ≤7 arcmin
- Low noise: 58-60 dB
- High efficiency: ≥97%
- High torque: Compact design with outstanding load capacity.
- Flexible Integration: Compatible with most PMDC, BLDC, BLDC servo and stepping motor.
- Modular design: We offer a variety of standardized sizes, with multiple stages and gear ratios.
- Customs: Can be manufactured to fit your requirements.
Key Features
- Rotating Series: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Robotics
- CNC
- Semiconductor
- Factory automation
- AGV/AMR
When to Choose This Model
Select this planetary series based on backlash, ratio range, and mounting requirements for your servo or stepper.
Frequently Asked Questions
What is the Rotating Series used for?
The Rotating Series is used in OEM motion-control applications. Contact us to match torque, speed, and mounting to your design.
Can you customize this model?
Yes. Shafts, windings, ratios, encoders, cables, and mounting interfaces can be customized for OEM programs.
How do I get pricing and lead time?
Request a quote with your quantity, target specs, and timeline. We typically respond within one business day.
Ready to spec your next motion system?
Talk to a Source Engineering application specialist. No obligations, just answers.
