SD Series Helical Gear Planetary Gearbox
The SD Series Helical Gear Planetary Gearbox is available from Source Engineering Inc. in Santa Clara, CA for OEM planetary gearboxes programs. Contact us for sizing, customization, samples, and volume pricing.

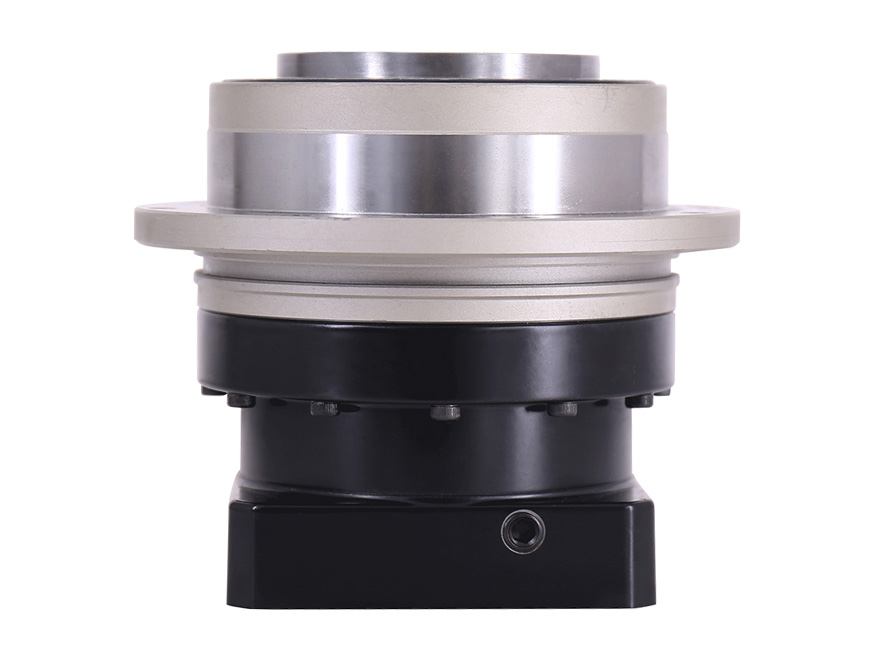

SD Series Helical Gear Planetary Gearbox
SD Series Helical Compact Planetary Gearbox
- High Precision, High Torque
- Quiet and smooth operation
- Rotating flange
- Rigid housing
- Backlash ≤1-≤7 arcmin
- ≥97% efficiency
- Operating Temp -10° to 90°C
- IP65
- Multiple stage configurations
- Customs available
Reducer Performance Data
| Specifications | Node Number | Reduction Ratio | SD064 | SD090 | SD110 | SD140 | SD200 | |
|---|---|---|---|---|---|---|---|---|
| Rated output torque T2N | Nm | 1 | 4 | 48 | 560 | 1100 | ||
| 5 | 60 | 160 | 330 | 650 | 1200 | |||
| 7 | 50 | 140 | 300 | 550 | 1100 | |||
| 10 | 40 | 100 | 230 | 450 | 900 | |||
| 2 | 20 | 48 | 560 | 1100 | ||||
| 25 | 60 | 160 | 330 | 650 | 1200 | |||
| 35 | 50 | 140 | 300 | 550 | 1100 | |||
| 40 | 48 | 130 | 270 | 560 | 1100 | |||
| 50 | 60 | 160 | 330 | 650 | 1200 | |||
| 70 | 50 | 140 | 300 | 550 | 1100 | |||
| 100 | 40 | 100 | 230 | 450 | 900 | |||
| Emergency stop torque T2NOT2 | Nm | 1,2 | 4～100 | 3 times the rated output torque | ||||
| Rated input speed n1N | rpm | 1,2 | 4～100 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum input speed n1B | rpm | 1,2 | 4～100 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Ultra-precision backhaul precision PO | arcmin | 1 | 4～10 | ≤1 | ≤1 | ≤1 | ≤1 | |
| 2 | 15～100 | One | ≤3 | ≤3 | ≤3 | |||
| Precision backhaul accuracy P1 | arcmin | 1 | 4～10 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
| 2 | 15～100 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||
| Standard return accuracy P2 | arcmin | 1 | 4～10 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 |
| 2 | 15～100 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
| Torsional rigidity | Nm/arcmin | 1,2 | 4～100 | 13 | 31 | 82 | 151 | 440 |
| Maximum bending moment M2KB3 | Nm | 1,2 | 4～100 | 125 | 235 | 430 | 1300 | 3064 |
| Allowable axial force F2rB3 | N | 1,2 | 4～100 | 1050 | 2850 | 2990 | 10590 | 16660 |
| Service life | hr | 1,2 | 4～100 | 20000* | ||||
| Efficiency η | % | 1 | 4～10 | ≥97% | ||||
| 2 | 15～100 | ≥94% | ||||||
| Weight | Kg | 1 | 4～10 | 1.2 | 3.0 | 5.6 | 11.9 | 31.6 |
| 2 | 15～100 | 1.6 | 3.7 | 7.3 | 15.9 | 36.9 | ||
| Operating temperature | ℃ | 1,2 | 4～100 | -10℃~+90℃ | ||||
| Lubrication | 1,2 | 4～100 | Synthetic Lubricating Grease (NYOGEL 792D) | |||||
| Ingress protection | 1,2 | 4～100 | IP65 | |||||
| Mounting direction | 1,2 | 4～100 | Any direction | |||||
| The noise level is 1m away (n₁=3000rpm, no load) | dB(A) | 1,2 | 4～100 | ≤58 | ≤60 | ≤63 | ≤65 | ≤67 |
- Moment Of Inertia Of The Reducer
| Specifications | Node Number | Reduction Ratio | SD064 | SD090 | SD110 | SD140 | SD200 | |
|---|---|---|---|---|---|---|---|---|
| Moment of inertia J₁ | Kg-cm² | 1 | 4 | 0.14 | – | – | 7.54 | 25.03 |
| 5 | 0.13 | 0.47 | 2.71 | 7.42 | 23.29 | |||
| 7 | 0.13 | 0.45 | 2.62 | 7.14 | 22.48 | |||
| 10 | 0.13 | 0.44 | 2.57 | 7.03 | 22.51 | |||
| 2 | 20 | 0.03 | – | – | 2.71 | 7.42 | ||
| 25 | 0.03 | 0.13 | 0.47 | 2.71 | 7.42 | |||
| 25 | 0.03 | 0.13 | 0.47 | 2.71 | 7.42 | |||
| 40 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | |||
| 50 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | |||
| 70 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | |||
| 100 | 0.03 | 0.13 | 0.44 | 2.57 | 7.03 | |||
1. Reduction ratio (i=Nin/Nout) 2. Maximum acceleration torque T2B=60% of T2NOT 3. When the output speed is 100rpm, it acts on the center position of the output shaft. *Continuous operation, with a service life of 10000 hours.

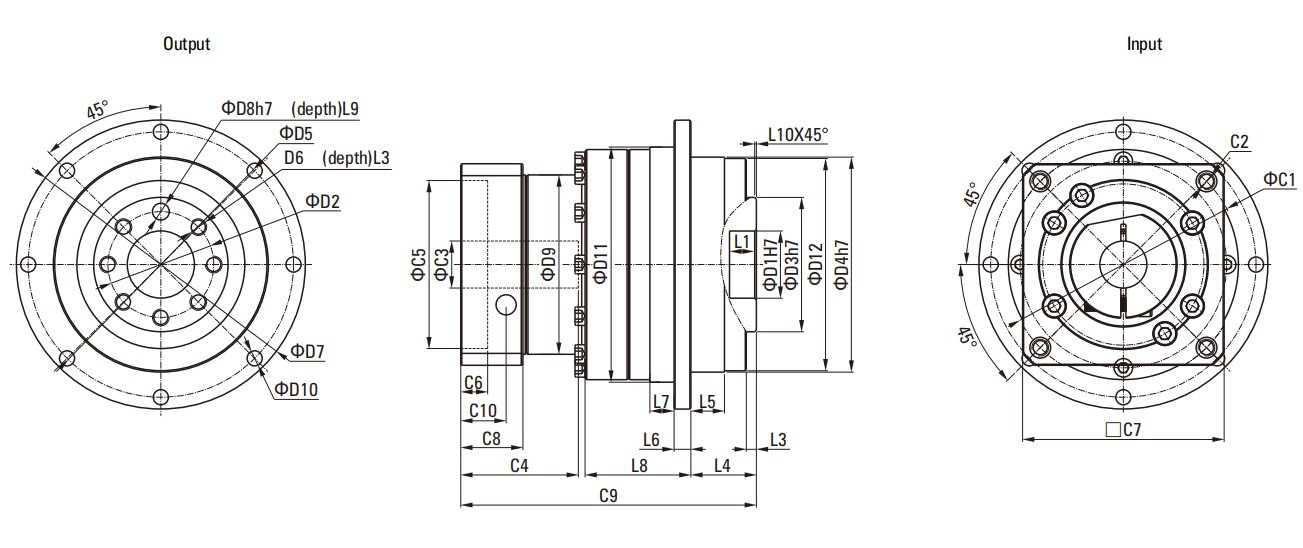

Single Stage, Reduction Ratio i=4~10
- Dimensional Drawing
- Dimensional Table (mm)
| Size | SD064 | SD090 | SD110 | SD140 | SD200 |
|---|---|---|---|---|---|
| D1H7 | 20 | 31.5 | 40 | 50 | 80 |
| D2 | 31.5 | 50 | 63 | 80 | 125 |
| D3h7 | 40 | 63 | 80 | 100 | 160 |
| D4h7 | 64 | 90 | 110 | 140 | 200 |
| D5 | 79 | 109 | 135 | 168 | 233 |
| D6 | 7×M5×0.8P | 7×M6×1P | 11×M6×1P | 11×M8×1.25P | 11×M10×1.5P |
| D7 | 86 | 118 | 145 | 179 | 247 |
| D8H7 | 5 | 6 | 6 | 8 | 10 |
| D9 | 55 | 77 | 90 | 113 | 138 |
| D10 | 8×4.5 | 8×5.5 | 8×5.5 | 12×6.6 | 12×9 |
| D11h7 | 70 | 95 | 120 | 152 | 212 |
| D12 | 63.2 | 89.2 | 109.2 | 139.2 | 199.2 |
| L1 | 8 | 12 | 12 | 12 | 16 |
| L2 | 8 | 13.5 | 13.5 | 17 | 22.5 |
| L3 | 3 | 6 | 6 | 9 | 8 |
| L4 | 19.5 | 30 | 29 | 38 | 50 |
| L5 | 7 | 10 | 10 | 14.6 | 15 |
| L6 | 4 | 7 | 8 | 10 | 12 |
| L7 | 7.7 | 8 | 10 | 12 | 15 |
| L8 | 28.5 | 27 | 37 | 62 | 69.5 |
| L9 | 6 | 7 | 7 | 7 | 10 |
| L10 | 0.5 | 1 | 1 | 1 | 1 |
| C14 | 70 | 100 | 130 | 165 | 215 |
| C24 | M5×0.8P | M6×1P | M8×1.25P | M10×1.5P | M12×1.75P |
| C34 | *≤14/≤16 | ≤19/≤24 | ≤32 | ≤38 | ≤48 |
| C44 | 34 | 40 | 50 | 60 | 85 |
| C54G6 | 50 | 80 | 110 | 130 | 180 |
| C64 | 8 | 4 | 5 | 9 | 6 |
| C74 | 60 | 90 | 115 | 142 | 190 |
| C84 | 19 | 17 | 19.5 | 22.5 | 29 |
| C94 | 82.5 | 99.5 | 121.5 | 151 | 199.5 |
| C104 | 13.5 | 10.75 | 13 | 15 | 20.75 |
| OD | 66×2 | 90×3 | 110×3 | 145×3 | 200×5 |
*SD060 5,10 offers optional C3 ≤ 16 reduction ratio.

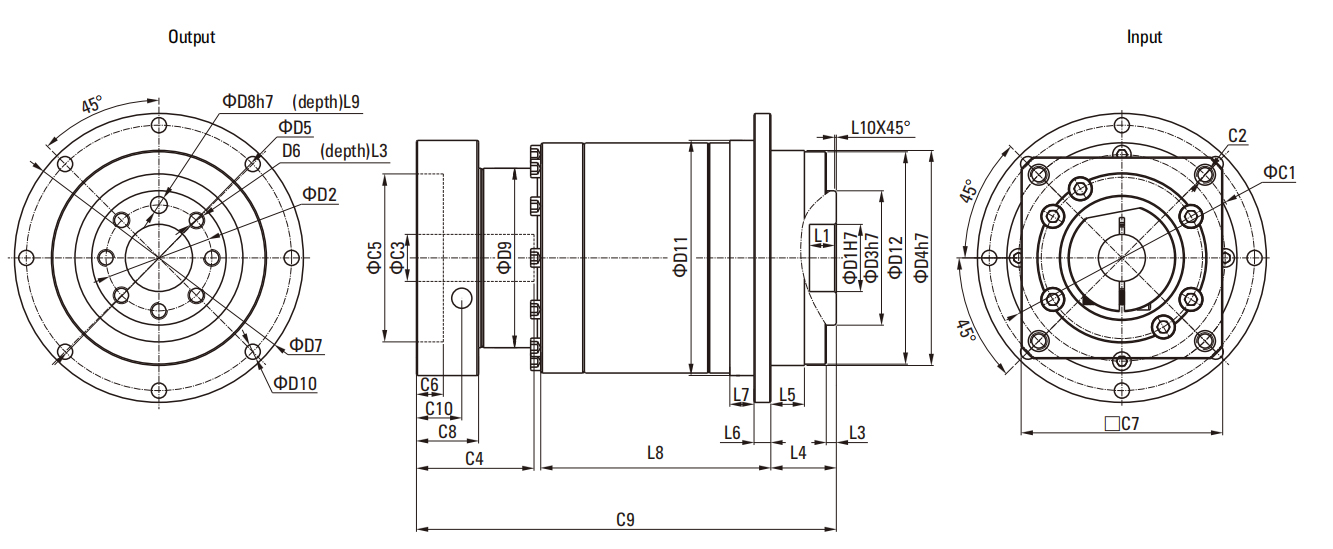

Two Stage, Reduction Ratio i=20~100
- Dimensional Table
| Size | SD064 | SD090 | SD110 | SD140 | SD200 |
|---|---|---|---|---|---|
| D1H7 | 20 | 31.5 | 40 | 50 | 80 |
| D2 | 31.5 | 50 | 63 | 80 | 125 |
| D3h7 | 40 | 63 | 80 | 100 | 160 |
| D4h7 | 64 | 90 | 110 | 140 | 200 |
| D5 | 79 | 109 | 135 | 168 | 233 |
| D6 | 7×M5×0.8P | 7×M6×1P | 11×M6×1P | 11×M8×1.25P | 11×M10×1.5P |
| D7 | 86 | 118 | 145 | 179 | 247 |
| D8H7 | 5 | 6 | 6 | 8 | 10 |
| D9 | 45.5 | 53.4 | 77 | 102 | 125 |
| D10 | 8×4.5 | 8×5.5 | 8×5.5 | 12×6.6 | 12×9 |
| D11h7 | 70 | 95 | 120 | 152 | 212 |
| D12 | 63.2 | 89.2 | 109.2 | 139.2 | 199.2 |
| L1 | 8 | 12 | 12 | 12 | 16 |
| L2 | 8 | 13.5 | 13.5 | 17 | 22.5 |
| L3 | 3 | 6 | 6 | 6 | 8 |
| L4 | 19.5 | 30 | 29 | 38 | 50 |
| L5 | 7 | 10 | 10 | 14.6 | 15 |
| L6 | 4 | 7 | 8 | 10 | 12 |
| L7 | 7.7 | 8 | 10 | 12 | 15 |
| L8 | 65 | 60 | 87.5 | 110 | 132.5 |
| L9 | 6 | 7 | 7 | 7 | 10 |
| L10 | 0.5 | 1 | 1 | 1 | 1 |
| C1⁵ | 46 | 70 | 100 | 130 | 165 |
| C2⁵ | M4×0.7P | M5×0.8P | M6×1P | M8×1.25P | M10×1.5P |
| C3⁵ | *≤11/≤12 | ≤14/≤15.875/≤16 | ≤19/≤24 | ≤32 | ≤38 |
| C4⁵ | 30 | 34 | 40 | 50 | 60 |
| C5⁵G6 | 30 | 50 | 80 | 110 | 130 |
| C6⁵ | 3.5 | 8 | 4 | 5 | 6 |
| C7⁵ | 48 | 60 | 90 | 115 | 142 |
| C8⁵ | 19.5 | 19 | 17 | 19.5 | 22.5 |
| C9⁵ | 108 | 134 | 160 | 204 | 248 |
| C10⁵ | 13.25 | 13.5 | 10.75 | 13 | 15 |
| OD | 66×2 | 90×3 | 110×3 | 145×3 | 200×5 |
Key Features
- SD Series Helical Gear Planetary Gearbox: OEM motion component configured for your application
- Custom shafts, windings, and mounts available
- US engineering support with overseas manufacturing cost structure
- Prototype to production volumes
Configuration Options
- Custom shafts, windings, encoders, and cable assemblies on request
- Prototype samples through production volumes
Applications
- Robotics
- CNC
- Semiconductor
- Factory automation
- AGV/AMR
When to Choose This Model
Select this planetary series based on backlash, ratio range, and mounting requirements for your servo or stepper.
